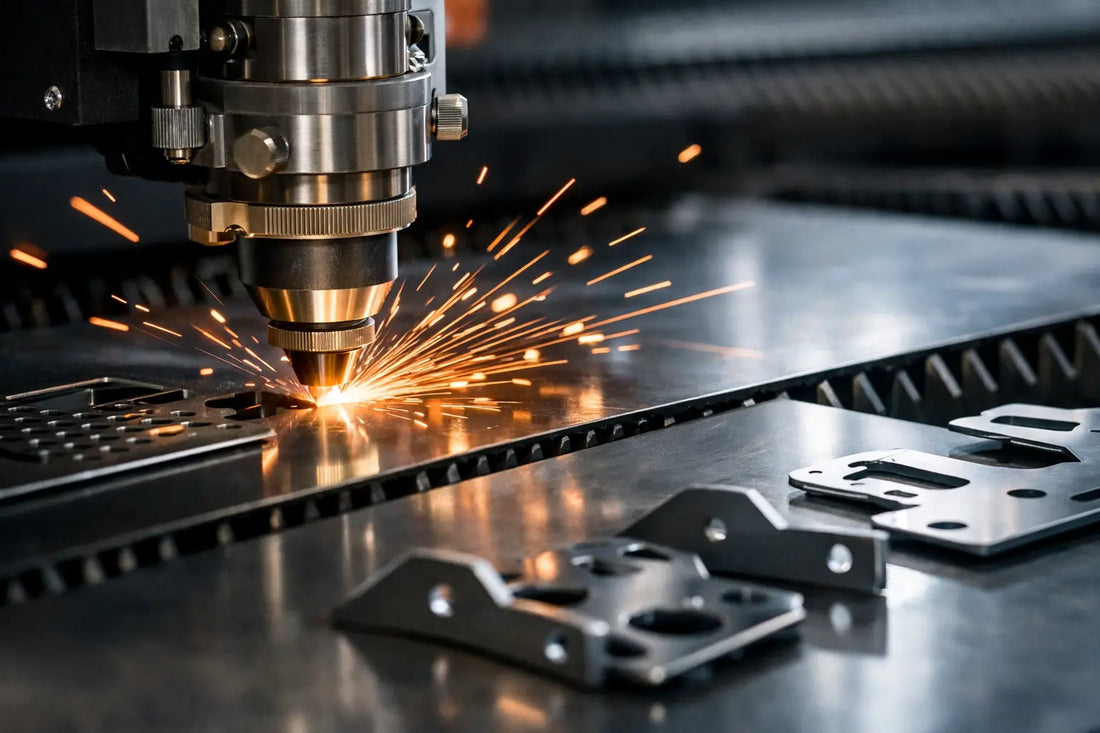

Sheet Metal Laser Cutting Guide for Better Parts

A good sheet metal laser cutting guide starts before the laser is switched on. Most delays, added cost and fitting problems come from unclear drawings, unsuitable material choices or features that are too small for the sheet thickness. Get those details right at the start and laser cutting is one of the quickest ways to turn a design into accurate, repeatable metal parts.

For brackets, panels, plates, rings, guards, machine parts and replacement components, fibre laser cutting gives a clean and efficient route from CAD file to finished flat part. It works equally well for a one-off prototype and a repeat batch, provided the job has been designed with the cutting process in mind.

What sheet metal laser cutting is best for

Laser cutting uses a focused beam to cut shapes from flat metal sheet. It is particularly useful where the part needs accurate profiles, internal holes, slots, cut-outs or engraved identification marks. Unlike manual cutting methods, it does not need a dedicated tool for every shape, so revisions and low-volume work are far more practical.

The process is well suited to mild steel, stainless steel and aluminium. The best material depends on where the part will be used, not simply what is cheapest. Mild steel is a sensible choice for general fabrication, structural brackets and painted parts. Stainless steel suits food, outdoor and corrosive environments where the material will often be left bare. Aluminium keeps weight down and offers good corrosion resistance, although it can mark more easily and behaves differently if the part will later be bent or welded.

Laser cutting creates flat components. If your finished item needs folded returns, welded tabs, threaded holes, countersinks or a coating, these should be identified at quotation stage. They may be separate operations, and the order in which they happen matters. For example, cutting usually comes before folding, while tapping is normally carried out after cutting.

Start with the part's job, not just its shape

Before choosing thickness or drawing a profile, establish what the component needs to do. Is it carrying load, keeping dust out, locating another part, providing a mounting face or simply covering an opening? A 1.5 mm aluminium cover and a 6 mm mild steel mounting plate may look similar on screen, but they have very different requirements.

Consider the fixing method early. A hole intended for an M8 bolt needs clearance, while a hole intended for tapping needs enough surrounding material and the correct pilot size. If the part is to locate over studs, shafts or existing holes, measure the mating item rather than relying on an old drawing where possible. Replacement parts are often made to fit a real-world component that has worn, been modified or was never manufactured exactly as shown.

For simple jobs, a dimensioned sketch, photograph or specification sheet can be enough to begin a conversation. For accurate repeat work, a DXF file is usually the preferred route. It gives the cutter a direct profile to work from and reduces the risk of dimensions being interpreted incorrectly.

Use a clean DXF file where possible

A DXF should contain the finished flat profile at full scale, normally in millimetres. Remove duplicate lines, stray points, construction geometry and overlapping shapes before sending it. Closed profiles should be genuinely closed. A gap that is almost invisible on screen can stop a contour from being processed correctly.

Keep engraving, fold references and cut lines clearly separated if they are included. If the drawing has multiple layers, label them plainly. Do not assume every line is meant to be cut through.

Where you are supplying several parts, make sure each file name includes a clear part reference and revision. A simple naming system such as BRKT-102-REV-B is far safer than sending files called “final”, “final new” and “final final”.

Design features that cut cleanly

The laser has a kerf - the narrow width of material removed during cutting. It is small, but it matters where parts must fit together, particularly on tab-and-slot assemblies or close-tolerance locating features. The cutting programme can allow for kerf, but the intended fit must be stated.

As a practical rule, avoid making holes, slots and narrow bridges smaller than the material can sensibly support. Very small features in thick sheet can become inaccurate, create excess heat or leave fragile sections that distort during handling. A tiny slot may look harmless in CAD but be unsuitable for a 10 mm plate.

Internal corners should also be considered. A laser beam naturally leaves a small radius in internal corners, rather than a perfectly sharp square. If a mating component needs to sit tightly into a corner, add a relief, often called a dog-bone, so the parts can assemble without filing.

Spacing matters too. Keep holes and cut-outs far enough from sheet edges and from one another to prevent local distortion. This is especially relevant in thinner material, large panels and parts with many closely packed features. There is no single clearance that suits every job because material, thickness, feature size and tolerance all affect the result.

Tolerances: be precise where it counts

Laser cutting is accurate, but “accurate” is not the same as every dimension being held to an unnecessarily tight tolerance. Tight tolerances can affect programming, inspection and cost, especially where a part has multiple operations after cutting.

Specify critical dimensions rather than applying the same tolerance to every feature. The distance between two mounting holes may be critical; the outside edge of a cosmetic cover may not be. This approach keeps the drawing clear and helps avoid paying for precision that has no practical benefit.

Think about how the part will be measured and assembled. A hole position can be correct from a datum edge but still cause trouble if the mating part uses a different reference. Mark datum points or clearly state which edges and features control the fit.

Material flatness and heat can also affect expectations. Sheet is not always perfectly flat when supplied, and a component with a large open area or many internal cuts may move slightly after cutting. If flatness is essential, say so before production rather than treating it as an assumed standard.

Choose the material and finish together

Material selection should include the final finish and working environment. Mild steel is economical and widely used, but bare mild steel will rust. If corrosion protection is required, allow for painting, powder coating, plating or another suitable finish after cutting.

Stainless steel offers a clean, durable appearance, but grade and surface finish still matter. A brushed visible panel, for example, may need protective film and careful handling to avoid scratches. Aluminium is often chosen for covers, enclosures and lightweight assemblies, yet the grade should match the job. Some grades are better for forming, while others suit machined or structural work more readily.

If the part will be welded, check that the chosen material thickness and grade suit the welding process. If it will be powder coated, make sure holes, slots and folded areas will not trap excess coating or make assembly too tight afterwards.

Make ordering faster with complete information

A clear enquiry saves time at every stage. Alongside the drawing, provide the material, thickness, quantity, required date and any essential tolerances or finishing requirements. State whether the quoted quantity is a one-off requirement or likely to repeat. A batch price may be different from a single-part price because programming and set-up are spread across more components.

For standard discs, rings, plates and flange plates, selecting the size and material directly can be the quickest route. For bespoke profiles, an uploaded DXF is ideal, but do not hold up a simple repair job if all you have is a marked-up sketch or photo. The key is making the required dimensions and intended use clear.

It is also worth checking whether the part needs deburring. Laser-cut edges are generally clean, but the underside can have a small burr depending on material, thickness and cut settings. A part that will be handled regularly, painted, assembled against a seal or used in a customer-facing product may need an additional edge-finishing step.

A practical pre-order check

Before sending a job for cutting, check these five points:

• The drawing is full scale and all dimensions are in millimetres.
• Material, grade where needed, and thickness are stated.
• Critical holes, slots and mating features have sensible tolerances.
• The part is designed as a flat profile, with secondary operations identified separately.
• Quantity, required delivery date and any finishing requirement are included.

This short check catches most avoidable problems. It also gives the cutting supplier enough information to advise where a design could be made cheaper, stronger or easier to produce.

NKD Services supports both straightforward standard shapes and custom sheet parts, from single replacements to production quantities. The aim is simple: provide a clear route from drawing to cut metal without forcing small jobs into a process built only for large manufacturers.

If a part has to fit first time, send the drawing with the information that controls the fit, not just the outline. A few clear notes at the start are usually cheaper than remaking a batch later.
