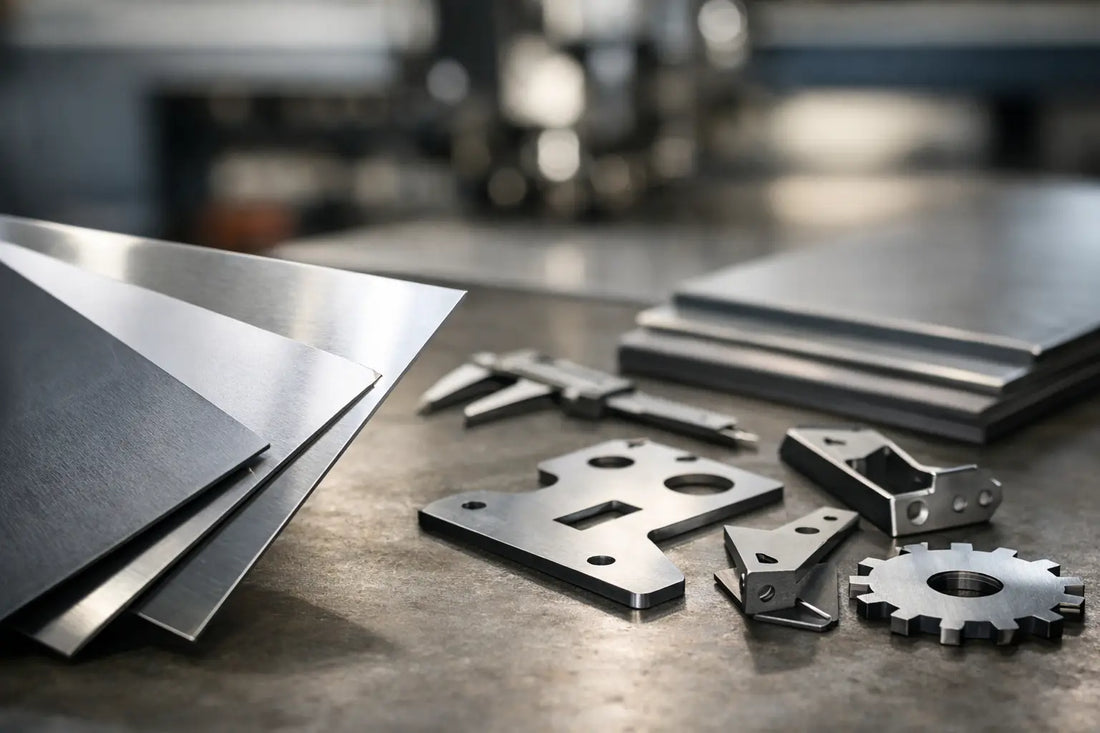

How to Choose Sheet Metal for Cut Parts

A bracket can look right on a drawing and still be wrong for the job. It may flex under load, corrode outside, distort during welding or simply cost more than it needs to. Knowing how to choose sheet metal starts with the working conditions of the part, not the material that happens to be cheapest or most familiar.

For laser-cut parts, the main decisions are usually material grade, thickness, finish, bend requirements and the level of accuracy needed. Get these right before ordering and you will avoid delays, redesigns and parts that need extra work on the bench.

Start with what the part needs to do

Before choosing a metal, be clear about the job. Is the part a simple cover plate, a load-bearing bracket, a machine guard, a replacement flange or a visible panel? Will it be indoors, outdoors, near water, exposed to chemicals or subject to regular impact?

A mild steel mounting plate in a dry workshop is a different job from a stainless steel enclosure on food-processing equipment. Likewise, a thin aluminium panel may be ideal where weight matters, but it may not be the right choice for a component that needs repeated threads, high stiffness or welding to an existing steel frame.

Think about the full life of the part rather than just the cutting stage. Ask whether it will be bent, welded, painted, powder coated, galvanised, drilled, tapped or assembled with other materials. These details narrow the choice quickly.

How to choose sheet metal by material

For most custom-cut components, mild steel, stainless steel and aluminium cover the majority of requirements. Each has strengths, limitations and cost implications.

Mild steel for everyday strength and value

Mild steel is often the practical first choice for brackets, base plates, machine parts, frames, gussets and general fabrication. It is strong, widely available and usually offers the best value where corrosion resistance is not the priority.

It also suits welding and fabrication well. If the finished part will be painted, powder coated or otherwise protected, mild steel can be a sensible and economical option. For indoor equipment, workshop fixtures and structural components, there is often no need to pay for stainless steel.

The trade-off is corrosion. Bare mild steel will rust when exposed to moisture, so outdoor or damp applications need a suitable finish. Bear in mind that cutting creates fresh edges that also need protecting if corrosion resistance matters.

Stainless steel for corrosion resistance and clean finishes

Stainless steel is a better fit where the part will face water, humidity, regular wash-down, food environments or visible public-facing use. It is commonly specified for guards, cabinets, panels, catering equipment, marine-adjacent work and architectural details.

It costs more than mild steel, and different stainless grades perform differently, so avoid specifying it simply because it sounds stronger. The key benefit is resistance to corrosion and a durable appearance. A brushed or polished finish may also save downstream finishing work where the part will remain visible.

Stainless can still mark, scratch and discolour during fabrication, particularly around welds. If appearance is critical, state the required finish at the quotation stage rather than assuming every surface will arrive presentation-ready.

Aluminium where weight matters

Aluminium is lightweight, naturally corrosion resistant and easy to handle. It is useful for covers, panels, vehicle components, housings, signs, electronics work and portable equipment where reducing weight makes a real difference.

Compared with steel, aluminium is less stiff at the same thickness. A panel that feels solid in 3 mm mild steel may need to be thicker in aluminium, or designed with folds and returns, to achieve similar rigidity. That can reduce the apparent weight or price advantage.

Aluminium is also not one single material. Grades vary in strength, formability and suitability for welding. If you need a specific grade, temper or finish, include it in the specification. For straightforward flat parts, explain the application and let the supplier advise on the practical choice.

Choose thickness for stiffness, not just strength

Thickness is one of the quickest ways to affect cost, weight and performance. Thicker sheet generally gives more stiffness and durability, but it also raises material cost, cutting time and handling weight. It may also make bending tighter shapes more difficult.

Do not select thickness solely by copying an old part. A worn or overbuilt component may not be the best guide for a new design. Consider the span between fixing points, the load applied, whether the part will be folded and whether vibration is involved.

A thin plate can be strong enough in theory but still feel flimsy across a wide unsupported area. Adding a return fold, rib, flange or extra fixing point can often stiffen a part more efficiently than moving to substantially thicker sheet. Conversely, for a small spacer or washer, excessive thickness may add no useful value.

If the part needs to fit around another component, check thickness against clearances. This is particularly important for covers, panels and interlocking assemblies. A change from 1.5 mm to 3 mm affects more than weight - it changes bend allowances, screw lengths, offsets and the space available around edges.

Design for laser cutting and any later fabrication

Laser cutting produces accurate profiles, holes and slots, but the design still needs to be realistic for the material thickness. Very small holes, narrow slots and fine internal details become more challenging as sheet gets thicker. As a practical starting point, avoid specifying features that are much narrower than the material thickness unless there is a clear reason and the design has been checked.

Keep hole sizes sensible for the fasteners you intend to use. If a hole will be tapped, make sure there is enough material thickness to form a useful thread, or consider a welded nut, rivnut or threaded insert. If it is a clearance hole, allow for assembly tolerance rather than making it exact to the nominal bolt diameter.

Where bending is required, leave enough space between holes or cut-outs and the bend line. Features placed too close to a bend can distort or become difficult to form cleanly. The inside bend radius, bend direction and grain direction can all matter on appearance-sensitive or tightly controlled work.

Sharp internal corners are another common issue. Laser-cut parts can have square-looking corners, but adding a small internal radius or relief can make fabrication easier and reduce stress concentration. This matters on parts that will be bent, loaded or repeatedly vibrated.

Specify tolerances only where they matter

Every part has a tolerance, whether it is written down or not. The mistake is applying tight tolerances across an entire component when only one hole pattern or one locating edge needs close control. That can add inspection time, cost and unnecessary back-and-forth before production.

Identify the dimensions that control the assembly. For example, the distance between mounting holes, the position of a bearing opening or the outside size of a panel that fits into a frame may be critical. Other cosmetic edges may be perfectly acceptable to normal cutting tolerances.

Also consider what happens after cutting. Welding can pull material out of shape, powder coating adds thickness and manually fitted hardware introduces variation. A precisely cut blank does not guarantee a precision assembly unless the whole process is planned around the key dimensions.

Account for finish, environment and appearance

Finishing is not an afterthought. It affects material selection, dimensions and lead time. Mild steel may need paint, powder coating or galvanising. Stainless steel may need a chosen surface finish. Aluminium may be left natural, painted, anodised or protected for a particular environment.

If parts will be powder coated, allow for coating build-up in tight slots, holes and mating faces. If they will be galvanised, discuss venting, drainage and potential distortion for fabricated assemblies. If the part is decorative, agree which face is the show face and whether small handling marks are acceptable.

For mixed-material assemblies, think about galvanic corrosion. Aluminium in direct contact with stainless steel or mild steel in wet conditions can need isolation through coatings, washers or suitable design details. It is a small point at the drawing stage and a costly one once the product is installed.

Give the supplier enough information to quote properly

A clean DXF file is the quickest route for a laser-cut profile, especially for repeat parts. Include the material, thickness, quantity and any finish or secondary operations required. If the design is still being developed, a PDF drawing with key dimensions, photos or even a marked-up sketch can be enough to start a useful conversation.

For repeat orders, use a clear part number and revision reference. A single changed hole position can create problems if an old file is reused by mistake. State whether a part is a prototype, a one-off replacement or a production batch too, as the best route may differ depending on quantity and urgency.

NKD Services works with one-off parts as well as larger runs, so there is no need to overcomplicate a straightforward requirement. The useful information is the information that affects the finished component: what it is made from, how thick it is, how many are needed and what has to happen after cutting.

Choose the material that suits the working environment, then use the thickness and design to make the part do its job properly. A short check before sending the file can save far more time than correcting the wrong metal once the parts are on the bench.
