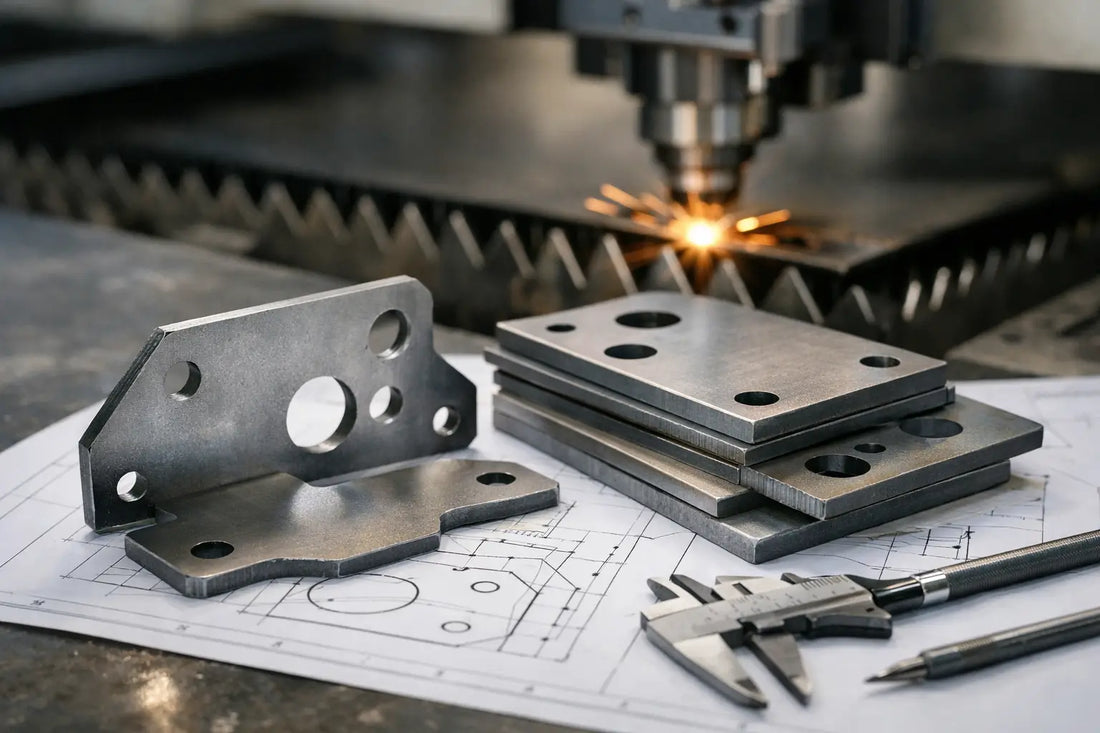

Mild Steel Laser Cut Parts Made to Your Drawing

A replacement bracket that is holding up a repair should not require a large production order. Nor should a prototype panel wait weeks simply because it is a custom shape. Mild steel laser cut parts give fabricators, engineers and makers a practical way to buy accurate components in the quantity they actually need - from a single plate or ring to repeat batches for production.

Mild steel remains one of the most widely specified materials for general fabrication. It is affordable, readily weldable and suitable for a huge range of brackets, guards, mounting plates, flanges, machine parts and structural details. Combined with fibre laser cutting, it offers a quick route from drawing to usable part.

Why Choose Mild Steel for Cut Components?

Mild steel is generally the sensible starting point where the part needs strength, ease of fabrication and a cost-conscious material choice. It can be drilled, bent, welded and painted after cutting, making it useful for jobs that do not need the corrosion resistance of stainless steel or the low weight of aluminium.

The right grade and thickness will depend on what the part has to do. A thin cover plate and a load-bearing mounting bracket may look similar in a drawing, but their material requirements are very different. If a part will be used outdoors, in a damp workshop or around chemicals, consider whether it needs a protective finish after cutting. Paint, powder coating, galvanising and zinc plating can all be suitable options depending on the finished application.

For indoor machinery, jigs, fixtures and general fabrication, untreated mild steel is often exactly what is required. It keeps material costs sensible and gives welders and fabricators a familiar material to work with.

What Fibre Laser Cutting Delivers

Fibre laser cutting uses a focused laser beam to cut profiles directly from sheet metal. It is particularly useful where parts need repeatable dimensions, clean outlines and detailed internal features without the expense of producing dedicated tooling.

For customers, the main benefit is simple: a well-prepared drawing can become a consistent part much faster than many traditional cutting methods. It is ideal for prototypes, repair parts, short runs and ongoing production work where designs may change over time.

Laser cutting is not a substitute for every process. A formed channel, a welded frame or a heavily machined component may need additional work after cutting. But for flat mild steel parts, it is often the most efficient first operation. Holes, slots, contours and cut-outs can be included in the same file, reducing marking-out and manual cutting on the shop floor.

Cut edge quality can vary with material thickness, feature size and part geometry. There may be a small heat-affected area at the cut edge, and some applications may require deburring or finishing before assembly. If appearance, close-fitting joints or a particular finish matters, state this when requesting a quote.

Common Uses for Mild Steel Laser Cut Parts

Laser-cut mild steel is used wherever a flat component needs to fit accurately and be produced without unnecessary delay. Common orders include mounting brackets, base plates, gussets, flange plates, machine guards, repair patches, blanking plates, discs, rings, panels and sign backing.

Fabricators often use cut parts to remove repetitive measuring and hand-cutting from a job. Machine builders use them for control panels, mounts and guards. Maintenance teams can replace a damaged part from a sample or drawing rather than altering an off-the-shelf item to fit. Product developers can test a design in real material before committing to a larger batch.

For simple round or rectangular items, standard geometries can be a quick option. Discs, rings, plates and flange plates are straightforward to specify by size, thickness and quantity. For anything more involved, a custom cutting quote is the better route.

Getting the Drawing Right Before You Order

The fastest jobs usually start with a clean DXF file. A DXF provides the cutting profile in a format that can be prepared for the laser, helping avoid confusion over dimensions and shapes. Ensure the file is drawn at full size, uses millimetres and contains only the lines that need to be cut.

Closed profiles are particularly important. If a shape has gaps, overlapping lines or duplicate entities, it can slow down quoting and production. Text, dimensions and construction lines should be removed unless they form part of the required cut profile.

If you do not have a DXF, that does not always stop the job. A clear paper drawing, marked-up photograph, PDF or specification sheet can be enough for a simple part. Include overall dimensions, material thickness, hole sizes, quantities and any details that could affect fit. A photo of an existing component is useful, but it should be supported by measured dimensions wherever possible.

Dimensions That Matter Most

A drawing does not need to be complicated, but it must leave little room for guesswork. Confirm the overall length and width, the material thickness, hole diameters, centre-to-centre distances and any critical slots or internal cut-outs. If a hole needs to align with another component, identify that dimension clearly.

Also consider how the part will be used after delivery. Will it be bent? Does it need to sit against a machined face? Is there a countersunk fastener involved? Does it need tabs for welding or clearance around a bolt head? These details are easier and cheaper to address before the material is cut.

Design Details That Affect Cost and Lead Time

A laser can produce intricate shapes, but simple, sensible design choices help keep a job economical. Very small holes in thick material, narrow slots and tight internal corners can be more demanding than larger, open features. Where the design allows, make features proportionate to the sheet thickness and avoid tiny details that add little function.

Internal corners are another point to consider. Laser cutting naturally leaves a small radius in an inside corner rather than a perfectly sharp square. If a mating component needs a square corner, a relief feature or alternative joint detail may be needed.

Part nesting also affects material use. A batch of identical brackets can usually be arranged efficiently on a sheet, while a single oversized profile may create more offcut. This does not mean one-off orders are unsuitable - they are often the most practical answer for repairs and prototypes - but quantity, part size and sheet thickness all influence the final price.

Where several different parts are required, sending them together can make quoting clearer and may reduce handling compared with placing multiple separate requests. Mark each part number and required quantity clearly in the files or accompanying notes.

From One-Off Part to Repeat Production

One-off orders are valuable when a job is urgent, a design is still being proved or a replacement part is needed. There should not be a barrier simply because the requirement is small. A single accurately cut component can save hours of workshop time and get equipment back into service sooner.

For repeat orders, consistency becomes just as important as speed. Keeping the same approved drawing, material specification and revision reference avoids accidental changes between batches. If a design is updated, give it a new revision name rather than overwriting the existing file. That small bit of control helps prevent old and new versions being mixed up when production is busy.

NKD Services supports both routes, from straightforward one-off mild steel parts to larger repeat requirements. The aim is to make ordering practical: provide the drawing and specification, confirm the quantity, then get a clear route to a cut part without taking on the cost of in-house laser capacity.

Specify the Finished Requirement, Not Just the Shape

A laser-cut profile is only one part of a finished component. Before ordering, think beyond the outline. State whether the part is for welding, painting, bending or immediate assembly. Mention if one face is cosmetic, if burr removal is required, or if the component will be exposed to weather after installation.

The better the brief, the less time is lost clarifying avoidable details. A part that is specified properly at the start is more likely to arrive ready for the next operation, whether that is welding it into a frame, fitting it to a machine or testing it on a prototype.

When time matters, send the clearest drawing you have, include the material thickness and quantity, and highlight what must fit. That is usually enough to turn a requirement for mild steel laser cut parts into a practical order rather than another job waiting on the bench.
