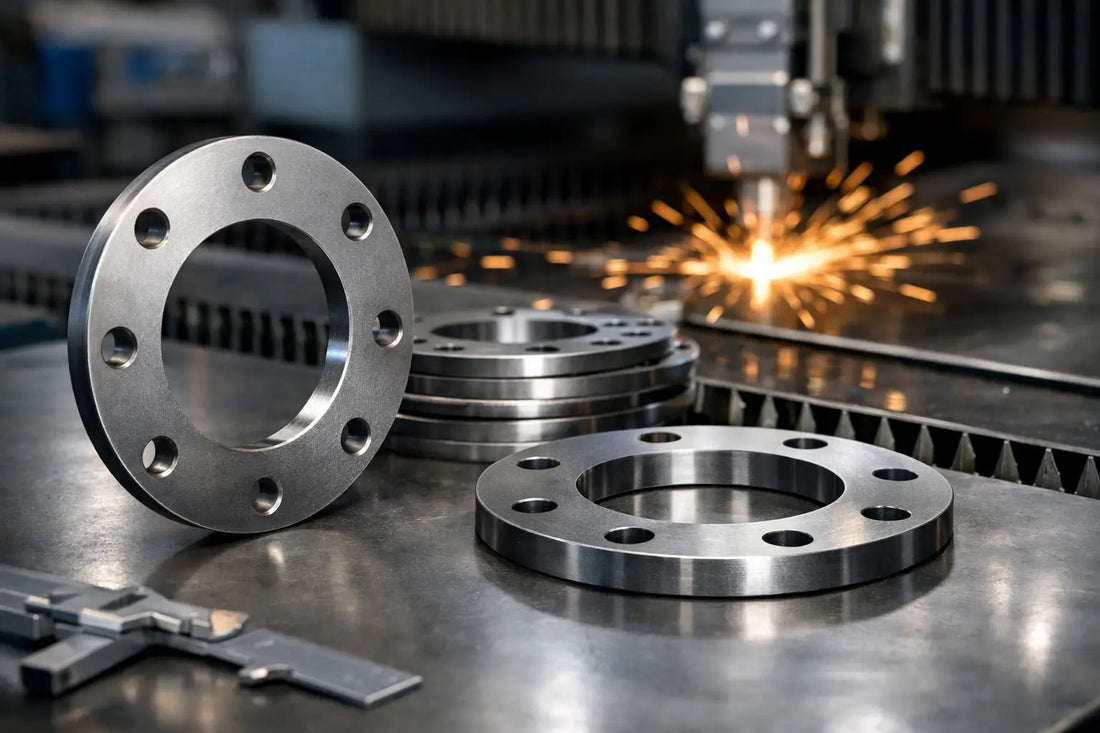

Laser Cut Flange Plates: Get the Details Right

A flange plate can be a small part with a big job. It may locate a bearing, join pipework, mount a motor, close an opening or provide a fixing face on a fabricated assembly. When it does not fit, the delay is rarely small. Laser cut flange plates give you a quick, accurate route to parts made around your dimensions, whether you need one replacement plate or a repeat batch for production.

For most jobs, the key is not simply cutting a circle with holes in it. It is getting the outside profile, bore, hole pattern, material and thickness right for the way the part will be used. A clear drawing and a sensible choice of material will save time at every stage, from quotation through to assembly.

What Is a Laser Cut Flange Plate?

A flange plate is a flat metal component with a defined fixing pattern. It commonly has a central hole or cut-out, plus bolt holes positioned on a pitch circle diameter. Some are round, while others are square, rectangular or shaped to suit a frame, housing or machine guard.

The part may look straightforward, but its dimensions often control the fit of several other components. A motor mounting flange, for example, needs the bore and bolt pattern to align correctly. A pipe flange needs the right hole positions and material for the operating environment. A mounting flange may need clearance holes, slots or additional cut-outs to allow adjustment during installation.

Fibre laser cutting is well suited to these parts because it produces clean, repeatable profiles directly from a digital drawing. It is especially useful where a flange has more detail than a standard drilled plate, such as internal pockets, multiple hole sizes, engraved part marks or shaped outer edges.

The Details That Make Flange Plates Fit First Time

The best flange plates are designed around the mating part, not just the dimensions available on an old sketch. If the flange connects to an existing component, measure the component wherever possible. A few millimetres of error in a bolt circle can turn an otherwise good part into scrap.

When preparing a drawing or specification, include the overall outside dimensions, material grade and thickness. Show the central bore or internal profile, all fixing holes and their sizes, plus the bolt circle diameter where applicable. Also state whether holes are clearance holes, tapping holes or pilot holes for later machining.

For a simple custom order, the following information avoids unnecessary back-and-forth:

• the required quantity, including whether this is a one-off or repeat order
• material and thickness, or the application if you need guidance
• outer profile dimensions and central hole size
• hole diameters and accurate centre positions
• the file or drawing scale, along with any critical tolerances

A DXF file is normally the quickest route for laser cutting because it gives the cutter a clear 2D profile. That said, a dimensioned PDF, workshop sketch, photograph of an existing part or spec sheet can still be enough to start a conversation for simpler work. The important thing is that critical dimensions are clear and there is no guesswork over scale.

Hole Position Matters More Than Hole Count

A common problem with flange drawings is giving a hole diameter but not defining where the hole sits. If four M10 clearance holes are equally spaced around a bore, the drawing should show the pitch circle diameter and, where necessary, the orientation of the pattern.

This matters when the flange has features that are not symmetrical. A keyway, cable cut-out, mounting tab or asymmetric outer shape means the first hole position needs a datum. Without it, a bolt pattern can be technically correct but rotated from the position required for assembly.

For general fabrication, standard clearance holes offer useful tolerance during fitting. Where bolts must locate the part precisely, dowel holes or a machined feature may be a better choice. Laser cutting can create accurately positioned holes, but a laser-cut edge is not always the final answer for a close-running bearing seat, precision dowel fit or threaded feature.

Material Choices for Laser Cut Flange Plates

Mild steel is a practical choice for general brackets, structural fabrications, machinery frames and indoor industrial use. It is cost-effective, readily available and easy to weld after cutting. If the plate will be painted, powder coated or otherwise protected, mild steel is often the sensible option.

Stainless steel is usually chosen where corrosion resistance, washdown conditions or appearance matter. It is common in food-adjacent equipment, external installations, marine environments and chemical processing areas. Grade selection still depends on the setting. Stainless is not a single answer to every corrosion problem, particularly around chlorides or coastal exposure.

Aluminium is useful where weight matters or where the component needs natural corrosion resistance. It is widely used for machine covers, lightweight assemblies, vehicle parts and specialist equipment. It is softer than steel, so thickness and fastening arrangement need careful consideration if the plate will take repeated loads or be clamped heavily.

The right thickness depends on what the flange is doing. A thin plate may be ideal as a cover or light mounting face, but it can distort when tightened against a gasket or loaded by a motor. A thicker plate brings more stiffness, though it also adds cost, weight and longer cut time. If flatness is particularly critical, consider what happens after cutting too: welding, heat, coating and bolting can all affect the finished assembly.

When Laser Cutting Is the Right Process

Laser cutting is a strong fit for flat flange plates with profiles, holes and slots all in one plane. It removes the need to mark out and drill each hole manually, which is a real advantage on repeat work or parts with several features. Once the drawing is proven, repeat batches can be produced consistently.

There are limits. Laser cutting does not create countersinks, counterbores, threads or turned diameters. Those operations need secondary machining or finishing. Thick material and very small holes can also require a practical review, as the preferred hole size depends on the material and plate thickness.

If a bore carries a bearing, shaft seal or precision locating feature, leave a machining allowance or specify a pilot hole for finishing. This approach often gives the best balance between speed and final accuracy. The laser does the bulk of the work quickly, while machining is reserved for the surfaces that genuinely need it.

Edge condition is another consideration. Laser-cut edges are generally clean and suitable for many fabrication uses, but the application decides whether deburring is needed. A visible stainless part, a hand-operated product or a gasket face may need additional finishing. For a welded frame component, the as-cut edge may be entirely suitable.

Ordering Custom Flange Plates Without Delays

Before sending a job, check that the drawing is at full size and uses one unit system consistently. Millimetres are standard for UK fabrication drawings. Remove duplicate lines, construction geometry and dimensions from a DXF cutting layer, as these can cause confusion or delay when preparing the file.

Be realistic about tolerances. A tight tolerance should be applied only to the dimensions that control fit. Specifying very tight tolerances across every feature can add cost without improving the assembly. It is better to identify the bore, hole centres or outer edges that are genuinely critical and allow normal fabrication tolerance elsewhere.

For repeat parts, keep the drawing revision visible in the file name or on the drawing itself. A simple revision reference prevents an older flange pattern being ordered by mistake months later. If the job is replacing a worn or damaged part, include a note on which dimensions were measured from the original and which must match the mating assembly.

NKD Services can cut custom flange plates from your supplied design in mild steel, stainless steel and aluminium, with one-off orders and production quantities handled through the same straightforward process. If you have a clean DXF, the route is quick. If you only have a clear sketch or an existing part to work from, provide as much dimensional information as possible and focus on the features that must fit.

A flange plate does not need to be complicated to be critical. Give the bolt pattern a reliable datum, choose material for the actual environment and reserve machining for the features that demand it. That is how a flat piece of metal arrives ready to earn its place in the assembly.
