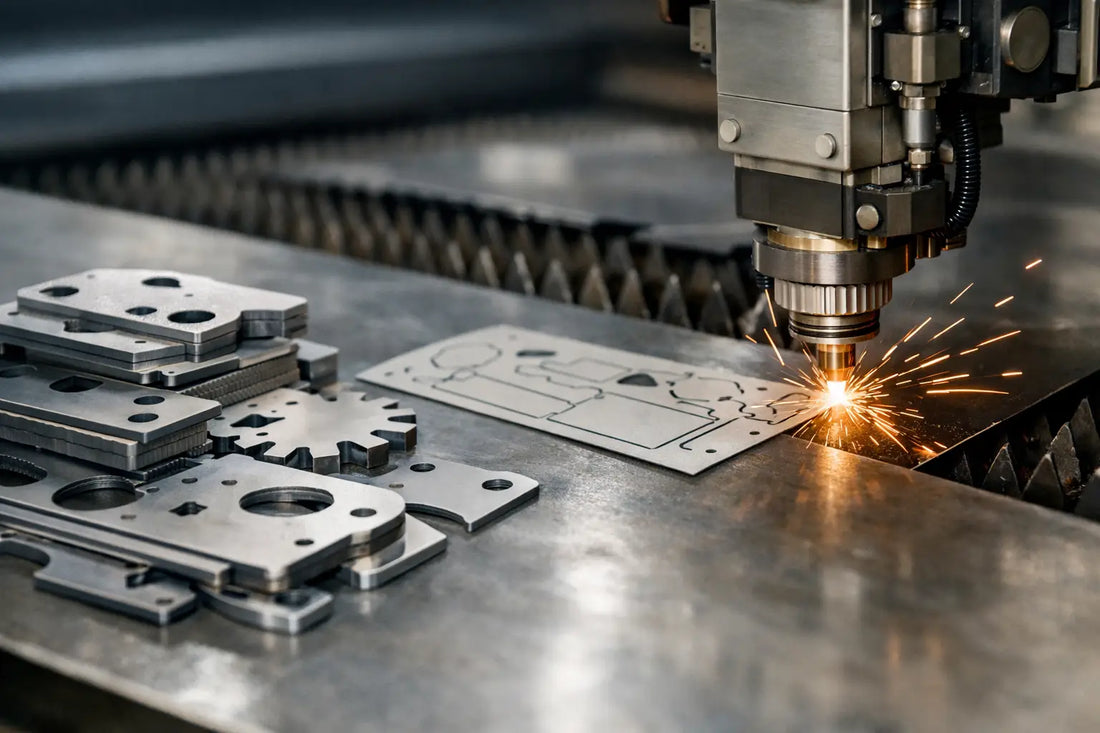

DXF File Laser Cutting Service for Metal Parts

A drawing can look finished on screen and still cause delays on the shop floor. A good dxf file laser cutting service turns a clear design into accurate metal parts quickly, but the result depends on more than simply uploading a file. Material choice, sheet thickness, hole sizes, bend allowances and drawing quality all affect the price, lead time and suitability of the finished part.

For engineers, fabricators and makers, DXF cutting is a practical way to source brackets, panels, machine parts, flanges, guards and replacement components without carrying the cost of an in-house laser. It also works for one-off jobs. You do not need a production run to benefit from precision cutting, provided the drawing gives the cutter enough information to quote and manufacture it properly.

What a DXF File Laser Cutting Service Needs

DXF is a widely used CAD format for 2D outlines. For laser cutting, the file should show the exact profiles to be cut from sheet metal: outside edges, internal holes, slots and cut-outs. A clean DXF lets the cutting team import the geometry, check it against the selected material and thickness, nest it efficiently, then programme it for the fibre laser.

The best files are simple. Use a 1:1 scale in millimetres, keep the finished cut lines on one layer where possible, and remove dimensions, notes, title blocks and duplicate geometry from the cutting file. Those details are useful for communication, but they should not be mistaken for cutting paths.

If your part needs countersinks, tapped holes, folds, welding or finishing, say so in the enquiry. A laser can cut the profile accurately, but it cannot create every feature required for a finished assembly. Clear specifications at the start avoid the common problem of receiving a correctly cut part that still needs an unplanned second operation.

Start With the Part's Job, Not Just Its Shape

The right metal is based on how and where the component will be used. Mild steel is a sensible, cost-effective choice for general fabrication, structural brackets, bases and machine components where corrosion resistance is not the priority. It can be painted, powder coated or otherwise finished after cutting.

Stainless steel suits parts exposed to moisture, regular cleaning or harsher environments. It is often selected for food-adjacent equipment, external fittings, guards and architectural work, although the grade and finish matter. Aluminium is light, naturally corrosion resistant and useful where weight is a concern, such as enclosures, vehicle components and prototype products.

Thickness needs the same practical thinking. A thicker sheet may improve stiffness, but it also adds weight and material cost. It can affect whether small holes, narrow slots and tight internal corners are suitable. A thin sheet may be ideal for a cover panel but unsuitable for a heavily loaded mounting plate. If the design is at the limit, it is usually faster to discuss the application before production than to find out during assembly that the part flexes or will not accept its fixings.

Design Details That Save Time and Cost

Laser cutting is precise, but it is not magic. Small features need to be proportionate to the material thickness. As a general rule, very small holes in thick material are more difficult to cut cleanly than larger holes, and extremely narrow slots can be affected by the laser kerf. If a hole will be tapped later, leave enough material around it and specify the required thread rather than assuming a cut hole is ready for a fastener.

Keep inside corners realistic. The laser leaves a small radius rather than a perfectly sharp internal corner. Where a square internal corner is needed for a tab-and-slot assembly, adding a small relief, often called a dog-bone, can allow the mating part to sit fully home. This is a minor drawing change that can prevent a frustrating fitting problem.

Spacing also matters. Holes and cut-outs placed too close to an edge may distort the remaining material, particularly in thinner sheet. Tight nests of slots can create heat in one area of the part. A cutting provider can advise on manufacturability, but a drawing that accounts for these limits is quicker to approve and less likely to need revision.

For repeat parts, include a sensible identification method. A part number in the enquiry, a separate PDF drawing, or clearly named DXF files helps prevent confusion when several similar profiles are ordered together. Do not rely on a vague filename such as “final version new”. Production work moves faster when every part is easy to identify.

When a DXF Is Not Available

Not every customer starts with CAD. A worn bracket, a paper sketch, a photograph with measurements or a marked-up specification sheet can be enough for a straightforward replacement part. The key is to provide accurate dimensions, material preference, thickness and quantity, plus any details that affect fitment.

A physical sample is particularly useful for parts with unusual hole positions or a profile that has been altered over time. However, a photograph alone rarely gives enough scale for exact reproduction. Include measurements between hole centres, overall length and width, and any critical clearances. If a component must match an existing assembly, state which dimensions are critical rather than leaving that open to interpretation.

For more complex shapes, having a DXF created before cutting can still be worthwhile. It creates a record for future orders, makes changes easier to control and reduces the chance of repeated measuring. This is especially useful for maintenance teams and small manufacturers who may need the same replacement part again months later.

Quantity Changes the Best Approach

One-off laser-cut parts are valuable for prototypes, repairs and proof-of-concept builds. They let you test fit, assembly and material choice before committing to a larger batch. The trade-off is that setup, programming and handling still take time, so the unit cost of a single component will naturally be higher than the same component made in quantity.

For batch work, consistency becomes as important as the individual profile. Standardise material, thickness and revision level before production begins. Where several parts can be cut from the same sheet, efficient nesting can improve material use and reduce cost. It may also be worth ordering a small number of spare parts for service stock, particularly for machine guards, mounting plates and frequently damaged items.

There is no fixed point where a job becomes a production order. It depends on part size, material, complexity and how often you expect to reorder. A supplier that accepts both one-offs and larger runs gives you room to move from prototype to repeat manufacture without changing the drawing or changing the way you buy.

Check These Points Before You Send the File

Before requesting a quote, review the drawing as if you were fitting the part yourself. Confirm that the units are millimetres, the outline is at full scale, and every hole and slot is included. Check that there are no overlapping lines or duplicate shapes, as these can create programme errors or lead to unnecessary questions.

Then confirm the practical order details: material, thickness, quantity, finish requirement and deadline. If the part is folded after cutting, provide the bend information separately and make sure the flat pattern is correct for the process. If you are unsure about tolerances, state where accuracy matters most. A general panel and a bearing location do not need the same level of control.

At NKD Services, custom DXF work is quoted around the actual part requirement, whether that is a single replacement plate or a repeat batch of production components. Giving the full specification at the outset helps keep the quotation clear and the turnaround realistic.

Make Your First Cut Useful

For a new design, order a test part before committing to a large batch whenever the fit is critical. Check hole alignment, mating tabs, clearance around fixings and whether the chosen thickness performs as expected. A prototype is not wasted spend when it prevents a full batch of parts needing modification.

The quickest route from idea to usable metal is a clean drawing, a clear specification and an honest view of what the part has to do. Send those details with your enquiry, and the cutting process can focus on what it should deliver: accurate parts that are ready for the next stage of your job.
