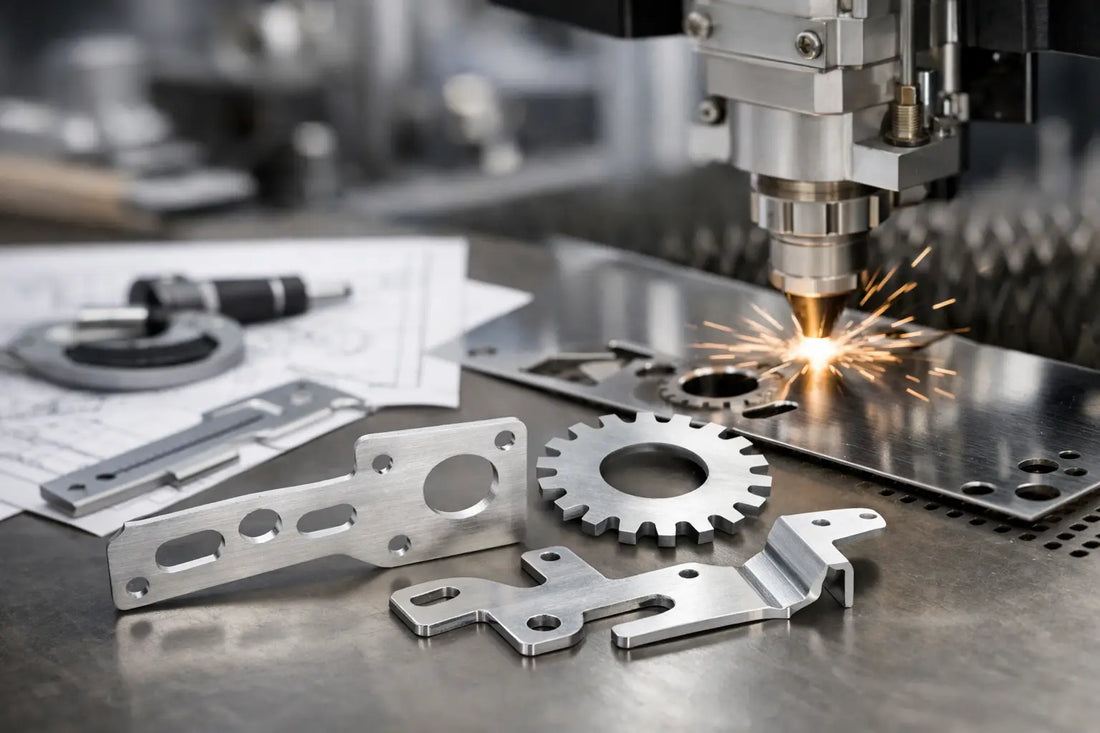

Aluminium Laser Cut Parts: What to Specify

A bracket that is 2 mm too thin, a hole that has not allowed for a fastener, or a drawing sent at the wrong scale can hold up an otherwise simple job. Aluminium laser cut parts are quick to source when the specification is clear, but aluminium has its own cutting and finishing considerations. Getting the basics right before ordering helps keep cost down and avoids delays when the parts arrive on site.

For prototypes, replacement parts and production batches alike, the aim is the same: provide a usable drawing, select material that suits the job, and be realistic about what the cutting process can achieve. That does not need to mean a lengthy engineering pack. A good DXF file and a few clear notes will cover most jobs.

Why choose aluminium for laser-cut components?

Aluminium is popular because it combines low weight with good corrosion resistance. It is often the sensible choice for machine guards, enclosures, panels, brackets, covers, plates, signage components and transport-related parts where reducing weight matters.

Unlike untreated mild steel, aluminium does not normally need paint simply to protect it from everyday corrosion. That can remove a finishing stage from a job, although the surface can still mark, oxidise or pick up fingerprints depending on the grade and environment. If appearance is critical, specify the finish you need rather than assuming all aluminium sheet will look the same.

The trade-off is that aluminium is not automatically the best material for every part. It is softer than many steels, so thin sections can bend more easily. Threads cut directly into thin sheet have limited engagement, and high-wear or high-load parts may need thicker material, inserts, folds or a different grade. For a simple cover plate, aluminium may be ideal. For a highly loaded machine mounting, it is worth checking the design before committing to material.

Selecting the right aluminium grade and thickness

Material selection starts with the part's purpose. A general-purpose sheet aluminium grade suits many indoor and light-duty applications. Where corrosion resistance, forming or welding is more important, a different grade may be more suitable. For parts that will be machined after cutting, anodised, welded, folded or used outdoors, say so at quotation stage. Those details affect the best material choice.

Thickness is just as important as grade. Thin sheet is economical and works well for covers, panels and light brackets, but it can distort if the part has long unsupported edges. Thicker material gives more stiffness and better bearing area around holes, but adds cost, weight and cutting time.

A practical starting point is to consider how the part will be fixed and loaded. A small panel held at several points may work well in thinner aluminium. A cantilevered bracket carrying equipment needs enough material around the bend line and mounting holes to prevent flexing. If you are replacing an existing part, measure its thickness and check whether the original design relied on formed edges or welded reinforcement.

For repeat parts, keep the same grade and thickness on the drawing and purchase order. Descriptions such as “aluminium plate” are often too broad for production work, particularly where fit, finish or post-processing matters.

What a laser-cutting drawing needs to show

A DXF file is the clearest route to accurate aluminium laser cut parts. It allows the profile, holes, slots and internal cut-outs to be read directly by the cutting software. Draw at full size in millimetres, use closed profiles, and make sure there are no duplicate lines sitting on top of one another.

Where a DXF is not available, a dimensioned PDF, sketch, photograph or specification sheet can still be useful for straightforward work. Include overall length and width, material thickness, hole diameters, key centre distances and the quantity required. A photo of the old component alongside a ruler can help with a replacement part, but it should support measured dimensions rather than replace them.

It also helps to state which dimensions are critical. Not every edge needs the same level of control. A decorative cover with clearance holes has different requirements from a mounting plate that locates bearings or sensors. If a hole must suit a specific bolt, rivnut, cable gland or bearing, identify the item. This prevents a nominal dimension being used where clearance or a tighter tolerance is needed.

Keep holes, slots and narrow features realistic

Small holes and narrow slots are possible, but their practicality depends on sheet thickness and the feature's location. As a rule, very small features in thick aluminium are less efficient to cut and more likely to require a design review. Features close to an outside edge can also leave weak tabs that may deform during handling.

Avoid making assumptions about laser kerf, the narrow width removed by the beam. Cutting software compensates for it, but the finished edge is not a substitute for precision reaming or machining where a press fit or very close bearing location is required. Laser cutting is excellent for profiles and general holes; critical fits may need a second operation.

Sharp internal corners are another common detail to review. Laser cutting can produce tight corners, but adding a small radius can improve durability and reduce stress concentration. It is especially worthwhile on brackets and parts that will see vibration.

Design for the next process, not just the cut

A flat laser-cut part is often only one stage of the job. Think ahead to folding, welding, tapping, powder coating, anodising or assembly before finalising the profile.

If the part will be folded, the flat pattern needs bend allowances and suitable distances between holes and bend lines. A hole placed too close to a fold can distort or become difficult to form cleanly. If it will be welded, allow access for the weld and consider how heat may affect flatness. If it will be powder coated, account for coating build-up on mating faces and inside holes.

For tapped holes, sheet thickness matters. Thin aluminium may not provide enough thread depth for a reliable fixing. A rivnut, weld nut, threaded insert or folded return can be a better answer. These decisions are normally cheaper to make on the drawing than after parts have been cut.

Surface finish should also be considered early. Laser-cut edges may have light marking or a small burr depending on the material and geometry. For many brackets and internal components, this is perfectly acceptable. For customer-facing panels, hand-contact parts or items being anodised, specify any deburring, edge finishing or cosmetic requirement upfront.

Quantities, nesting and cost control

One-off aluminium parts are useful for proving a design, repairing equipment or making a template. Batch quantities bring different opportunities. When several parts use the same thickness and grade, they can be nested efficiently on a sheet, reducing material waste and helping achieve better unit pricing.

Design choices affect price as well. A compact shape generally uses less material than a large open profile. Standard hole sizes are easier to work with than a collection of unusual diameters, and reducing unnecessary cut-outs shortens cutting time. That does not mean compromising the part's function just to save pennies. It means removing features that do not add value.

If you need several variants of a part, keep common features consistent where possible. For example, a family of panels with the same outer size and fixing holes but different internal cut-outs can be easier to manufacture and assemble. Clearly name each drawing revision so older files are not accidentally repeated.

At NKD Services, one-off orders and larger runs can follow the same straightforward route: provide the drawing, material requirement, quantity and any critical notes. Clear information at the start gives the cutting team the best chance of quoting quickly and supplying parts that are ready for your next operation.

Checks to make before placing an order

Before sending files, check that the drawing is full scale in millimetres and that every required profile is present. Confirm the aluminium grade or intended use, sheet thickness, quantity and whether the part needs a particular finish. Review holes against the actual fixings, and make sure slots are wide enough for their mating components.

It is also worth checking the part in the context of assembly. Will a spanner reach the nut? Is there enough clearance for a folded edge? Does the panel need countersunk screws, which may require a separate operation? Does the component need identification marking, or will several similar parts need to be kept separate? A two-minute review can prevent a costly re-order.

The best aluminium laser cut parts are not necessarily the most complicated ones. They are the parts with a clear purpose, sensible material choice and drawings that leave little room for guesswork. Start with the function the component must perform, then let the material, thickness and profile follow from that.
