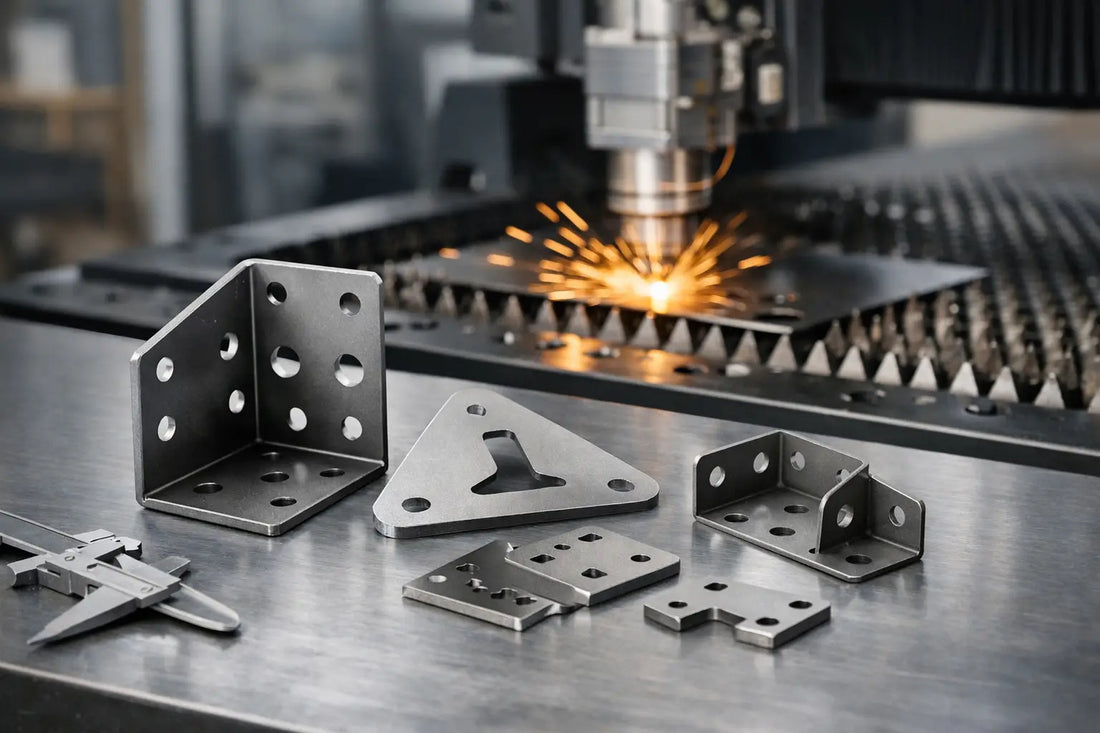

Custom Laser Cut Brackets Made for the Job

A bracket can be a small part of a much larger build, but it often carries the job that matters most. It may locate a guard, support a motor, secure a panel, hold pipework in place or provide the mounting point that keeps an assembly aligned. When an off-the-shelf option does not match the hole pattern, material, size or load requirement, custom laser cut brackets provide a practical route to parts made around the job rather than a compromise.

For engineers, fabricators and maintenance teams, the value is not just in getting a metal shape cut. It is in getting the right shape, in a suitable material, without waiting weeks or being pushed into an order quantity that does not fit the work.

What makes a good custom laser cut bracket?

A good bracket starts with its function. Before deciding on material thickness or adding holes, establish what the part must hold, where it fits and how it will be fixed. A simple mounting plate may only need two clearance holes and a clean outside profile. A machine bracket supporting vibration or a heavier load may need thicker material, gussets, folded returns or a revised fixing arrangement.

Laser cutting is particularly useful because it gives accurate profiles and repeatable hole positions. Slots, notches, radiused corners, cut-outs and engraved identification marks can all be included in the same part design. This avoids the slow process of manually marking out, drilling and shaping each bracket from stock.

The finished part still needs to be sensible to manufacture. Very narrow tabs can bend or distort, holes placed too close to an edge may weaken the part, and internal corners need a radius rather than a perfectly sharp square. These are straightforward details, but they make a difference to cut quality, strength and cost.

Flat brackets and folded brackets are not the same thing

A laser cutter produces a flat blank. Many brackets are used flat, such as mounting plates, joining plates and repair tabs. Others need bends to create an angle, channel or stand-off. In that case, the laser-cut profile is normally the first operation before folding.

This distinction matters when preparing a drawing. The supplied DXF should usually show the flat pattern, including bend allowances where needed, rather than the finished folded dimensions alone. If you only have a sketch, photo or specification sheet, it can still be a useful starting point for a simple job. Just make clear which dimensions are critical and whether the part requires forming after cutting.

Choosing the right material and thickness

Material choice should follow the environment and the work the bracket has to do. Using thicker metal than necessary can add cost and weight. Using the cheapest option in the wrong setting can lead to corrosion, flexing or early replacement.

Mild steel is often the most cost-effective choice for general fabrication, machinery, workshop fixtures and painted assemblies. It is easy to work with and suits many internal applications. If the bracket will be exposed to weather, moisture or chemicals, it needs suitable finishing or a different material.

Stainless steel is a strong option where corrosion resistance and a clean appearance are important. It is commonly specified for food-related equipment, outdoor installations, washdown areas and exposed architectural work. There are different stainless grades, so the operating environment should guide the final selection rather than assuming all stainless performs the same way.

Aluminium is lightweight, naturally corrosion resistant and useful where weight reduction matters. It is popular for vehicle parts, enclosures, frames and product development work. However, aluminium does not behave like steel under load. A thickness that feels adequate in mild steel may flex more in aluminium, so bracket geometry and fixing points need proper consideration.

Thickness is equally important. A light panel bracket may only need thin sheet, while a structural mounting point may need heavier gauge material or additional folds and gussets. If the bracket will see shock loading, repeated vibration or a cantilevered load, do not judge it by static weight alone. The direction of the force matters as much as the force itself.

Design details that save time on the shop floor

Custom parts become more useful when they remove work from the assembly stage. A well-designed bracket should locate easily, accept the intended fixings and leave enough access for tools. Small changes at drawing stage can prevent real frustration later.

Hole sizes should match the actual fastener arrangement. For example, a clearance hole needs to allow for the bolt and any installation tolerance, while a tapped hole requires enough material thickness for the thread or an alternative fixing method. Slots can help where adjustment is needed, but excessive slot length can reduce stiffness and make repeatable positioning harder.

Think about the order of assembly too. A bracket may look correct on screen but be impossible to fit once surrounding panels, motors or pipework are in place. Consider spanner clearance, socket access and whether bolts are inserted before or after the bracket is mounted.

Where several parts look similar, part numbers or orientation marks can be laser marked directly onto the component. This is particularly helpful for installation kits, service parts and repeat builds. It reduces assembly errors without adding labels that can peel away or go missing.

From drawing to cut part

For a straightforward quote and accurate manufacture, a DXF file is normally the best format. It should show the cutting geometry at full size, ideally in millimetres, with duplicate lines and stray entities removed. Closed profiles are important, as open contours can cause delays when a file is prepared for cutting.

A PDF drawing is useful alongside the DXF when you need to communicate material, thickness, quantity, finish requirements or critical dimensions. It also gives the person reviewing the job a clear reference for what the finished part is meant to be.

Not every requirement begins with CAD. For a replacement bracket or a one-off repair, a clear paper drawing with dimensions, a photo of the existing part and a note of the material can be enough to start the conversation. Include hole diameters, centre distances, overall size and any details that cannot be guessed from an image. A ruler in the photograph is useful, but it should support dimensions rather than replace them.

One-off brackets versus repeat production

One of the main advantages of laser cutting is that the same process works for a single prototype and a larger repeat order. A one-off bracket lets you check fitment before committing to a full build. This is often the sensible approach for product development, maintenance work and modifications to existing equipment.

For repeat production, keeping an approved drawing and part revision is essential. If a hole position changes by even a few millimetres, the new version should be clearly identified. Consistent revision control avoids a familiar problem: a batch of parts that matches an old file perfectly but no longer fits the current assembly.

Quantities can also affect the best design choice. A complex bracket may be economical as a laser-cut and folded part for small and medium runs. At higher volumes, other manufacturing methods may become worth considering. There is no single answer - it depends on quantity, tolerance, material and the number of operations needed after cutting.

Avoiding common bracket ordering problems

Most issues are preventable before the sheet reaches the laser cutter. Confirm whether dimensions are finished sizes or flat-pattern sizes, particularly on folded work. State material and thickness rather than writing only “steel”. Check that hole sizes suit the fasteners you will actually use, and make sure the drawing revision is the one approved for manufacture.

It is also worth being realistic about tolerance. Laser cutting is accurate, but a bracket that interfaces with cast parts, worn machinery or hand-fabricated frames may need slots or adjustment built into the design. Making every dimension theoretically exact does not always produce the best-fitting part in the real world.

For jobs with tight clearances, order a first-off part before placing a larger batch. The extra check is usually cheaper than reworking a full production run. Once the fit is proven, repeat orders become quick and predictable.

A practical way to buy custom brackets

The quickest route is to send the clearest information available: a DXF where possible, the required material and thickness, quantity, and any forming or finishing requirements. If the part is replacing something already in service, say what it does and where it is used. That context can highlight details a drawing alone may not show.

NKD Services works with one-off orders as well as batch quantities, so a single replacement mounting bracket does not need to become a large procurement exercise. Whether the requirement is a simple flat plate, a set of matching machine brackets or repeat parts for a build programme, clear specification helps keep pricing fair and turnaround moving.

The best bracket is rarely the most complicated one. It is the part that fits first time, uses the right material, can be assembled without trouble and arrives in time to keep the job moving.
