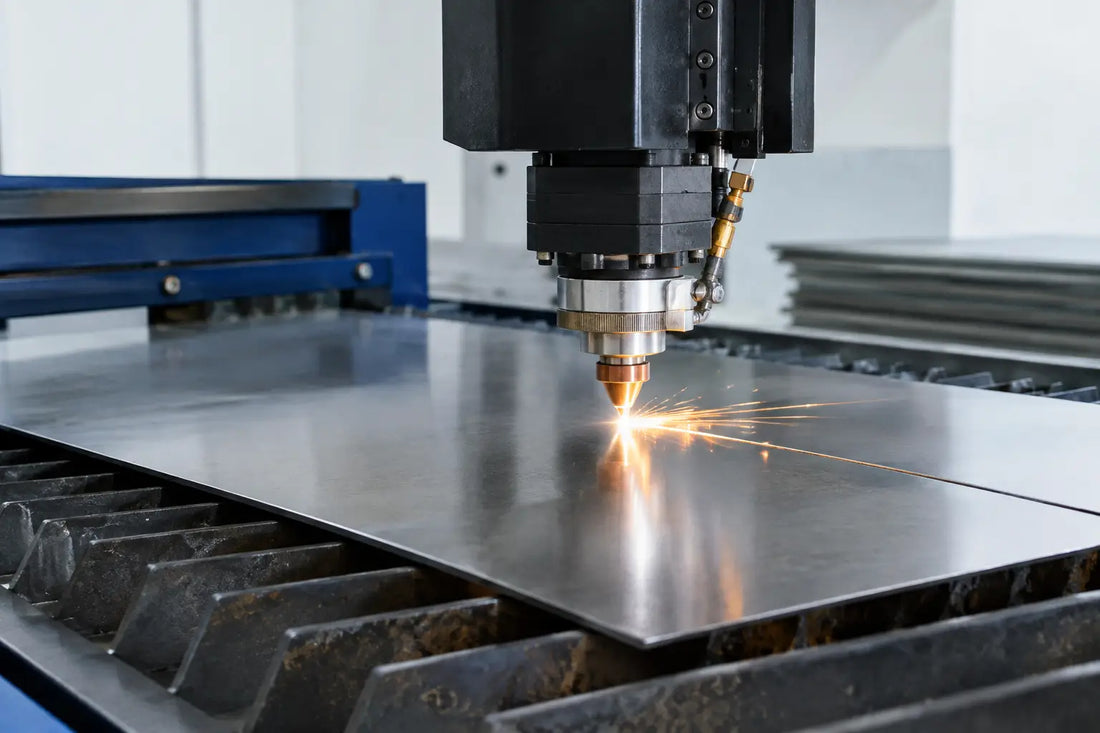

How to Prevent Sheet Metal Warping in Cutting

A flat sheet can leave the laser bed looking perfectly sound, then lift at one corner or take on a slight bow as it cools. That movement can be enough to spoil fit-up, cause problems at the press brake, or make a panel look poor once painted. To prevent sheet metal warping, the job needs to be considered before cutting starts - not just when the finished part is already distorted.

Warping is usually a heat and stress problem. Laser cutting, welding and forming all put energy into metal. If that heat is uneven, or if the material cannot expand and contract consistently, internal stresses pull the sheet out of shape. The right material, sensible part design and a controlled cutting process go a long way towards producing flatter, more reliable components.

Why sheet metal warps

Metal expands when heated and contracts as it cools. During fibre laser cutting, the heat-affected area around the cut is small, but it is not zero. On a large, thick or intricate part, repeated heating in one area can create local stress. As the part cools, those stresses may pull it upwards, downwards or sideways.

Thin sheet is naturally more prone to visible distortion because it has less stiffness. A long, narrow bracket in thin mild steel can move more readily than a compact plate cut from thicker material. Stainless steel also retains heat differently from mild steel, while aluminium conducts heat very quickly and can react differently again. There is no single setting or rule that works for every job.

The starting condition of the sheet matters too. Material may already carry residual stress from rolling, levelling, storage or previous processing. Once cuts release that stress, a part can move even where the laser input is well controlled. This is why a sound cutting plan should allow for both the material and the geometry.

Prevent sheet metal warping with better part design

The lowest-cost way to control distortion is to address it in the drawing. Small changes to a DXF can reduce heat build-up and make a part much easier to manufacture consistently.

Avoid long, unsupported strips where possible. Narrow legs, fine webs and large cut-outs leave little material to resist movement. If the design allows, increase the width of a bridge, add a return flange at the forming stage, or use a rib or folded edge to stiffen the finished component. These changes may add little material but make a major difference to rigidity.

Large openings deserve attention as well. A panel with a big central cut-out can behave like a frame, especially when the remaining border is narrow. Keeping material more evenly distributed around the part helps. Where a large aperture is essential, consider whether a few smaller openings, a different arrangement of features, or a formed section could achieve the same purpose.

Sharp internal corners can concentrate stress. Adding appropriate radii to slots and internal profiles improves durability and can help reduce local movement. This is also good practice for parts that will be bent or see repeated loading in service.

Hole size and spacing matter on thin sheet. A dense cluster of holes or slots introduces a lot of heat into a small area. If function permits, spread features out, reduce unnecessary perforations, or use a staggered pattern. For parts that need a large quantity of small holes, it is worth discussing the intended use and tolerances before production. A flat cosmetic panel and an internal machine guard do not always need the same approach.

Choose material and thickness for the job

Material selection is often driven by corrosion resistance, strength, weight or cost. Flatness should still be part of the decision. If a part must remain very flat over a large area, moving up one thickness can be more effective than trying to correct a flexible thin sheet after cutting.

Mild steel is a practical choice for many brackets, plates and fabricated assemblies. Stainless steel suits applications where corrosion resistance or appearance is important, but thin stainless panels can show distortion clearly. Aluminium is light and useful for many applications, although its high thermal conductivity means cutting strategy and part support need careful consideration.

It also pays to distinguish between a part that needs to look flat and one that needs to measure flat. A light visual bow may be acceptable in a cover panel, yet unacceptable for a mounting face, seal, sliding mechanism or component going into an assembly jig. State critical flatness requirements at enquiry stage rather than assuming a general profile tolerance will cover them.

For repeat work, use the same grade, thickness and supply specification whenever possible. Changing from one sheet source or temper to another can alter how material behaves, even when the nominal thickness is the same.

Control heat during laser cutting

Cut order has a direct effect on distortion. Cutting every feature in one area before moving elsewhere concentrates heat. A planned sequence spreads heat across the sheet, allowing sections to cool rather than continually loading one zone.

On suitable jobs, internal features are cut before the outside profile. This keeps the part stable while holes and slots are produced. The profile is then released later in the sequence. The exact approach depends on the shape, thickness and nesting arrangement, but the principle is simple: retain support for as long as it is useful.

Micro-joints or tabs can also help keep parts in position during cutting. They are particularly useful for small, narrow or delicate profiles that could shift once freed from the sheet. They do leave small witness points that need breaking out and dressing, so they are a practical trade-off. For visible or precision mating edges, their position should be chosen carefully.

Heat input is not only about cutting speed. Assist gas, focus position, nozzle condition, power and feed settings all affect cut quality and the amount of energy delivered. Running a process too slowly can put unnecessary heat into the work. Running it too aggressively can compromise edge quality or cause instability. A capable cutting process balances clean edges, reliable pierces and controlled thermal load.

Nesting also plays a part. Parts placed tightly together may be economical on material, but a dense nest of thin, intricate shapes can hold heat in a small area. On distortion-sensitive work, the best yield on paper is not always the best production outcome. Allowing sensible spacing, sequencing parts across the sheet and avoiding a build-up of similar heat-heavy features can protect quality.

Support the sheet and handle it properly

A sheet that is not properly supported can sag or move as cut material is released. The cutting bed, slat condition and sheet placement all influence the result. This is particularly relevant on thin gauge material and large blanks.

Once parts are cut, handling matters just as much. A hot, flexible panel can distort if lifted from one corner, stacked unevenly or placed across an unsupported surface. Let parts cool where practical and support them across their length when moving them. This is simple workshop discipline, but it prevents avoidable rework.

Store sheet material flat, dry and supported. Leaning thin sheet against a wall may be convenient, but it can introduce a bend before production has even begun. If flatness is critical, inspect incoming material and keep protective packaging and handling methods consistent.

Plan welding and forming around distortion

Laser-cut parts are often only the first operation. A part that leaves cutting flat can still warp during welding or folding if the next steps are not planned properly.

For welding, use the smallest weld size that meets the engineering requirement and avoid putting long continuous welds into thin material unless the design genuinely needs them. Balanced weld placement, stitch welding and a sensible sequence reduce concentrated shrinkage. Clamping and fixturing can hold an assembly in position, but they do not remove all residual stress, so they should support a good weld plan rather than replace one.

For folded parts, keep bends a sensible distance from holes, slots and cut-outs. Features too close to a bend can deform as material flows through the tooling. Grain direction, bend radius and bend sequence can also affect the finished shape. If a part includes several bends and must sit flat afterwards, identify the critical faces and dimensions before manufacture.

Straightening is possible in some cases, but it should be treated as a recovery operation, not the standard process. Manual correction adds time, can mark the surface and may not be repeatable across a batch. A better route is to refine the design and process until parts come off consistently within the required tolerance.

Give your cutting supplier the right information

A clean DXF is the best starting point for laser-cut profiles. Include the material grade, thickness, quantity and any critical dimensions. If flatness is important, say so clearly and explain why. A note such as “must sit flat for gasket sealing” gives far more useful direction than “no warping”.

For a bespoke part, a drawing, photo or specification sheet can also help show the finished application. This is especially useful where the profile will be welded, folded, powder coated or assembled with bought-in components. The more clearly the function is understood, the easier it is to flag a thin web, heat-heavy feature pattern or tolerance that may need a different manufacturing approach.

NKD Services can cut one-off parts and production batches in mild steel, stainless steel and aluminium, so there is scope to prove out a distortion-sensitive design before committing to volume. A small prototype run can confirm fit, flatness and handling requirements at a much lower cost than correcting a full batch later.

A flat part is rarely the result of one magic setting. It comes from matching the design, material, cutting plan and downstream fabrication to what the component actually has to do. Get those decisions right early, and the parts arriving on the bench are far more likely to fit first time.
