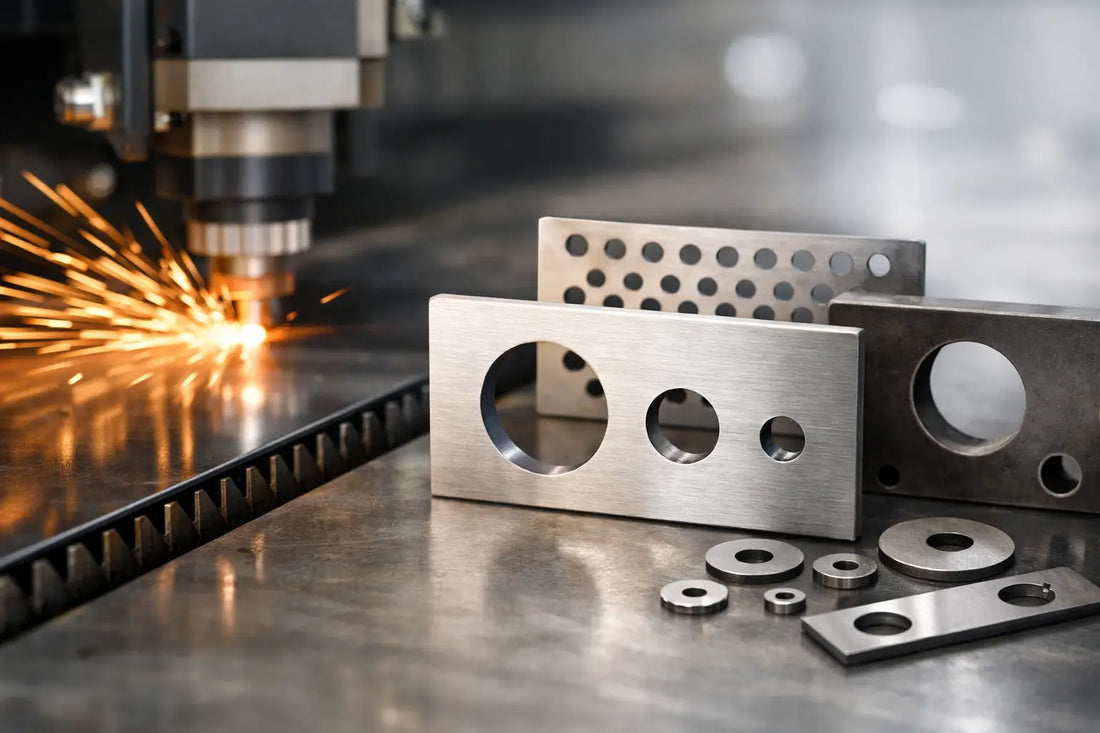

Laser Cut Hole Sizing for Clean, Usable Parts

A hole that looks fine on a drawing can become the reason a part will not assemble. A bolt may bind, a threaded insert may not seat, or a panel may need reworking on site. Getting laser cut hole sizing right before production is one of the simplest ways to avoid delays, wasted material and last-minute drilling.

For most sheet metal jobs, the drawing dimension is only the starting point. Material type, sheet thickness, the purpose of the hole and the tolerance required all affect what is practical to cut. The right approach is not to make every hole as small and tight as possible. It is to specify holes that suit the job and can be produced consistently.

Why laser cut hole sizing depends on the part

A fibre laser cuts by focusing a high-energy beam through the sheet and clearing molten material with assist gas. It produces accurate, repeatable holes, but a laser is still cutting material rather than punching a perfectly formed cylinder. This means the thickness of the sheet has a direct bearing on the smallest hole that can be cut cleanly.

As a practical starting point, aim for a hole diameter at least equal to the material thickness. For example, a 3 mm hole in 3 mm steel is generally a more sensible starting point than a 1 mm hole in 3 mm steel. Larger holes are quicker and more reliable to cut, with less risk of taper, heat effect or a rough edge.

This is a guideline, not a fixed rule. Thin gauge stainless steel or aluminium may allow smaller features, while thicker plate, high quantities and tight cosmetic requirements may call for a more conservative size. If the hole is critical, it is worth treating the laser-cut size as a pre-operation and allowing for drilling, reaming or tapping afterwards.

The same applies to slots and narrow internal shapes. Their narrowest section should be considered in the same way as a round hole. A long, thin slot may look straightforward in CAD, but if its width is below what suits the material thickness, it can be slow to cut or give an inconsistent result.

Start with the function, not just the nominal size

The correct diameter depends on what the hole needs to do. A clearance hole for an M8 bolt does not need to be 8 mm. It needs enough room for the bolt to pass through, while accounting for coating, fabrication variation and how easily the parts must line up during assembly.

If a hole is for a fastener, use a recognised clearance-hole size rather than matching the thread diameter. For a locating pin, bearing, dowel or close-fitting shaft, the requirements are different. In those cases, a laser-cut hole alone may not achieve the fit you need, particularly on thicker material. Specify a smaller pilot hole if appropriate, then finish it with a suitable machining operation.

Threaded holes need similar thought. A laser can cut the tapping drill size, but the finished thread is created afterwards. Check that there is enough material thickness for the thread engagement required. Very thin sheet is often better suited to a captive nut, rivet nut, weld nut or formed thread solution than a tapped hole.

Where a hole accepts a cable gland, grommet, insert or other bought-in component, work from that component's fitting instructions. Do not assume the stated nominal thread or body diameter is the required panel cut-out. A few tenths of a millimetre can make the difference between a secure fit and a loose component.

Material thickness changes the result

The relationship between hole diameter and material thickness is the main consideration, but material also matters. Mild steel is usually forgiving for general brackets, base plates and machine parts. Stainless steel can require more care where small holes and a high-quality visible finish are needed. Aluminium cuts well, but it is softer and can show damage more readily during handling or assembly.

Thicker material can also create a slight taper through the cut edge. The entry side and exit side of a small hole may not measure exactly the same, especially where the feature is close to the practical limit for that sheet. This may not matter for a clearance hole in a fabricated frame. It matters more for a component that must locate precisely against another part.

For parts with several thicknesses or materials in the same assembly, do not simply copy hole sizes across all drawings. Review each part individually. A 5 mm hole may be ideal in 2 mm mild steel but unsuitable as a precision fit in 8 mm stainless plate.

Keep holes away from edges and bends

Small holes need enough material around them. As a general rule, leave at least one material thickness between the edge of a hole and the outside edge of the part, with more space where possible. Features placed too close to an edge can distort, leave a weak section or make the remaining tab difficult to handle.

If the component will be folded after cutting, keep holes clear of the bend area unless the design specifically allows for the forming process. Metal stretches and compresses around bends, so a hole too close to the bend line can become oval or shift slightly. A fabricator can advise on bend allowances, but the best time to address this is before the file goes into production.

Tolerances: specify what actually matters

A common mistake is applying a very tight tolerance to every dimension on a drawing. This adds cost and can create unnecessary inspection work without improving the finished assembly. Standard laser-cut parts are accurate enough for many fabrication, guarding, bracket and panel applications, but not every feature needs precision-machining tolerances.

Instead, identify the features that control the assembly. These may be two mounting holes that set a motor position, a central bore that locates on a shaft, or a pattern of holes that must match an existing machine component. Give those features clear dimensions and tolerances. Other non-critical holes can use a general tolerance.

It also helps to dimension hole centres from clear datums or finished edges, rather than chaining dimensions from one hole to the next. Chain dimensioning allows small variations to build across a part. Datum-based dimensions make the design easier to inspect and reduce ambiguity for whoever is programming the job.

If you are replacing an existing part, measure more than one feature before copying it. Wear, paint, distortion and previous alterations can make an old component a poor master. A simple sketch with overall dimensions, hole diameters and centre positions is often enough for a straightforward replacement, but state which dimensions are critical.

CAD files and drawings that prevent delays

For custom laser cutting, a clean 1:1 DXF is the most useful format. Keep cut geometry on a single layer where possible, use closed outlines and remove duplicate lines. A hole made from overlapping arcs, broken segments or duplicated entities may look correct on screen but can cause a quote query or delay when the file is prepared for cutting.

Make sure all dimensions are in millimetres and that the drawing clearly states the material, thickness and quantity. If the hole needs a secondary operation, such as tapping, countersinking or reaming, call it out separately. A laser-cut outline does not automatically communicate the finished requirement.

For countersunk screws, specify both the clearance-hole diameter and the countersink details. The laser can provide the clearance hole, while the countersink is usually produced in a secondary process where required. This avoids the assumption that a standard round hole is ready for a flush-fitting fastener.

Customers without a DXF do not need to abandon a simple job. A clear paper drawing, photograph with dimensions or specification sheet can be enough to start a conversation. Include the hole sizes, spacing, material and thickness, plus a note of what the part is used for. That context often reveals an easier or more cost-effective solution.

When to use a larger hole or a second operation

There is no benefit in forcing a laser to produce a feature at the edge of practicality when a modest design change will make the part more reliable. Increasing a hole by 0.5 mm may improve assembly and reduce cutting time. Changing a narrow slot to a wider standard size may make a bracket easier to manufacture without affecting performance.

Where fit is genuinely critical, a combined process is often the right answer. Laser cut the profile and pilot features quickly, then drill, ream or machine the critical hole to its final size. This is particularly sensible for bearing seats, dowel locations and close-tolerance mounting patterns.

For prototype work, consider ordering one part first if the assembly has not been proven. It is cheaper to test a bolt pattern or component fit on a single laser-cut sample than to find an issue after a batch has been made. One-off orders are useful for this exact reason: they let you validate the real part, not just the CAD model.

NKD Services can cut parts from supplied drawings or DXF files in mild steel, stainless steel and aluminium, whether you need a single replacement plate or a repeat batch. Providing clear hole requirements at quotation stage helps keep the job moving quickly and avoids preventable revisions.

Before releasing your next file, ask one practical question of every hole: does it need to be laser-cut to size, or does it need to be a reliable starting point for the next operation? That decision will usually deliver a cleaner part and a faster build.
