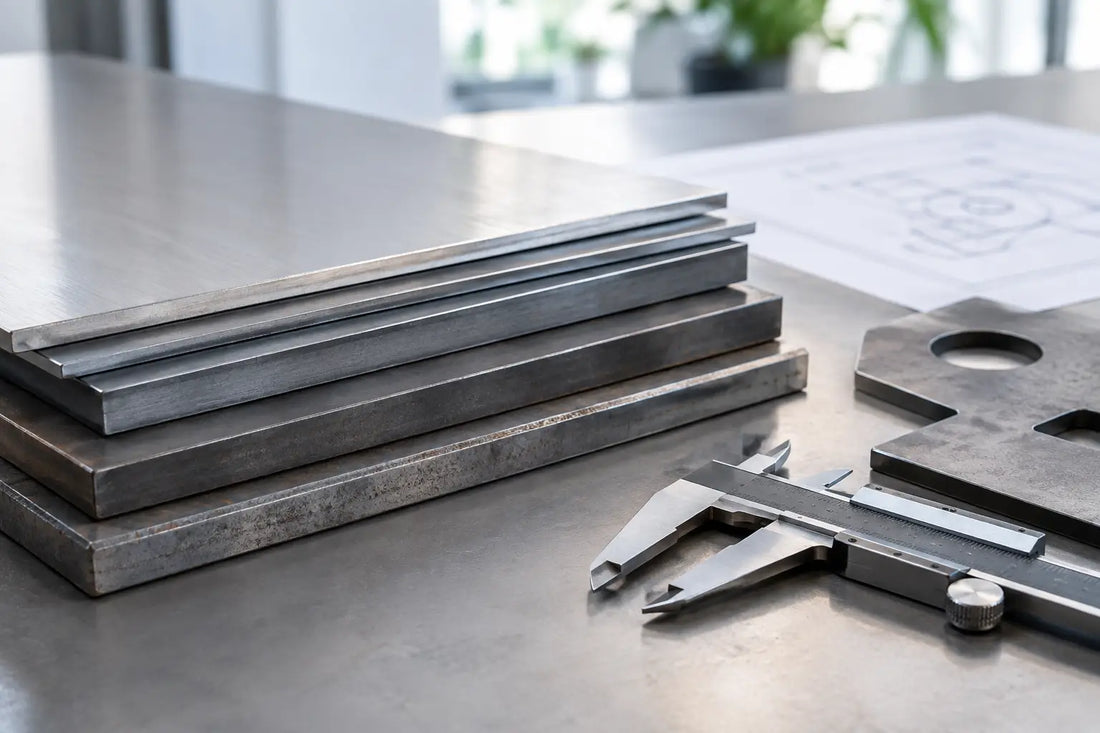

How to Select Metal Thickness for Cut Parts
Share
A bracket that looks fine on screen can flex as soon as it carries a load. A panel can be stronger than needed, yet cost more to cut, bend and ship than the job allows. Knowing how to select metal thickness means matching the sheet to the real working conditions of the part, not simply choosing the heaviest material available.
For laser-cut parts, thickness affects more than strength. It influences weight, edge quality, bend performance, hole sizes, material cost and the overall practicality of the design. The right choice is usually a balance rather than a single rule.
Start with what the part needs to do
The first question is not “what thickness is standard?” It is “what forces will this part see?” A decorative cover plate, a machine guard, a mounting bracket and a structural gusset may have similar outlines, but they need very different levels of stiffness and strength.
Consider whether the part will carry a fixed load, resist vibration, support equipment, span an opening or simply cover and protect something. Also consider where the load is applied. A short, folded bracket can often perform well in thinner material, while a long flat bracket may need a thicker sheet or an added return fold to stop it flexing.
If the component is replacing an existing part, measuring the original thickness is a sensible starting point. It is not always the final answer, particularly if the original part failed or the new design has changed, but it gives useful context.
For critical load-bearing, lifting, safety or pressure-related components, obtain proper engineering advice. Laser cutting produces accurate parts, but it does not replace design verification where failure could cause injury, damage or downtime.
Choose the material before finalising thickness
A 3 mm sheet is not a 3 mm sheet in every material. Mild steel, stainless steel and aluminium differ in stiffness, strength, corrosion resistance and cost. Material grade matters too, especially when a part must withstand repeated loading or outdoor use.
Mild steel is a practical, economical choice for many brackets, frames, plates and general fabrication jobs. It is commonly selected where the part will be painted, powder coated or used indoors. Stainless steel costs more but is often worthwhile where corrosion resistance, hygiene or a clean finished appearance matter. Aluminium is much lighter than steel and naturally corrosion resistant, but it is less stiff at the same thickness. An aluminium part often needs to be thicker than an equivalent steel part to limit deflection.
This is why changing from mild steel to aluminium simply to save weight can require a rethink of the design. The finished part may still be lighter, but it may need larger folds, ribs or extra thickness to do the same job.
Strength and stiffness are not the same thing
Strength is the ability to resist permanent deformation or failure. Stiffness is the ability to resist bending and flexing under normal use. A part can be strong enough not to break but still feel flimsy, vibrate or move out of alignment.
Thickness has a major effect on stiffness. Increasing sheet thickness slightly can make a substantial difference to how a flat part behaves. That is why a larger cover, tray or mounting plate often benefits from a folded edge or formed return instead of a large jump in material thickness. Good design can save material and improve the finished result.
How to select metal thickness for common parts
There is no universal thickness chart, but typical applications help narrow the decision.
Thin sheet is often suitable for light guards, covers, signage, electrical enclosures and cosmetic panels. It keeps weight and material cost down, although large unsupported areas can flex easily. Small holes, narrow slots and close features also need more care in thin material, particularly if the part will be handled frequently.
Medium-thickness sheet is widely used for general brackets, mounting plates, flanges, machine parts and fabricated assemblies. It provides a useful balance of rigidity, cut quality and cost for many industrial jobs. Where a part is folded, this range can produce a strong component without unnecessary bulk.
Thicker plate is normally used for structural brackets, base plates, heavy-duty flanges, wear parts and applications with significant loading. It brings greater stiffness and thread engagement where tapped holes are required, but it also adds weight, material cost and cutting time. It may make more sense to use a thinner sheet with folds or welded reinforcement if the component design allows it.
The right answer depends on the part size as much as the thickness. A 2 mm steel bracket with short legs and return folds may be far more rigid than a 5 mm flat plate of the same overall footprint.
Check the design features against the sheet thickness
A laser can cut fine detail, but not every feature is equally practical in every sheet. Small holes, narrow slots and tight internal corners should be considered alongside the chosen thickness.
As a general design rule, try to keep hole diameters and slot widths at least equal to the material thickness where possible. Smaller features may be achievable depending on the material, machine and tolerance required, but they can be less consistent and may increase production difficulty. If a fixing hole is too small for the sheet thickness, consider using a larger fastener, adding a welded nut or using a thinner local tab where appropriate.
Leave enough metal between holes, slots and outside edges. Closely packed features can create heat distortion in thinner sheet and leave weak sections in thicker parts. This matters particularly on brackets where holes sit near a bend line or where a fastener load pulls towards an edge.
If the part will be bent after cutting, thickness also affects bend radius, bend allowance and the minimum distance from a hole to the bend. A hole placed too close to a bend may distort during forming. Finalise the material and thickness before completing the flat pattern, rather than treating them as a last-minute purchasing decision.
Factor in finish, corrosion and the environment
The working environment can change the right thickness choice. Outdoor steelwork, wash-down areas, coastal sites and chemical environments need suitable material and finish, not just extra millimetres of metal.
For example, a slightly thicker mild steel part will still corrode if the coating is damaged or unsuitable for the environment. Stainless steel may be the better long-term option, provided the grade suits the conditions. Aluminium can work well outdoors and where low weight is useful, but it needs thought around galvanic corrosion when joined to other metals.
Allow for the coating too. Powder coating, galvanising and paint add protection and a small amount of build-up. This can matter on tight-fitting parts, precision holes and sliding interfaces. If two laser-cut parts must fit together, state the intended finish at the quoting stage.
Balance performance against cutting and material cost
Thicker metal generally costs more per part because there is more material in the sheet, and heavier plate can take longer to process. It also increases handling, freight and fabrication costs. For a one-off part, the difference may be modest. Across a repeat batch, selecting more thickness than needed can become an avoidable expense.
That does not mean choosing the thinnest option. Rework, failed parts and premature wear cost far more than selecting a sensible thickness at the start. The aim is to use the lightest, most economical sheet that meets the required stiffness, strength and service life.
Before placing an order, have clear answers to these practical points:
- What load, vibration or impact will the part see?
- Will it be flat, folded, welded or used as part of an assembly?
- Which material and finish suit the environment?
- Are the holes, slots and fixing details sensible for the selected thickness?
Test the decision before committing to volume
For a new product, prototype work or replacement part with uncertain loading, ordering a small first run is often the most cost-effective route. Fit the part, check clearances, apply the expected load and look for flex, sharp edges, vibration or issues during assembly. It is much easier to change from 2 mm to 3 mm, add a fold or move a hole before a larger batch is cut.
NKD Services can help turn a practical specification into accurately laser-cut mild steel, stainless steel or aluminium parts, whether you need a single test piece or repeat production quantities. The more clearly the part’s job is defined, the easier it is to select a thickness that performs properly without paying for metal you do not need.
A good thickness choice should disappear into the finished job: the bracket stays put, the panel remains straight, the fixings fit, and the part does its work without adding unnecessary weight or cost.
