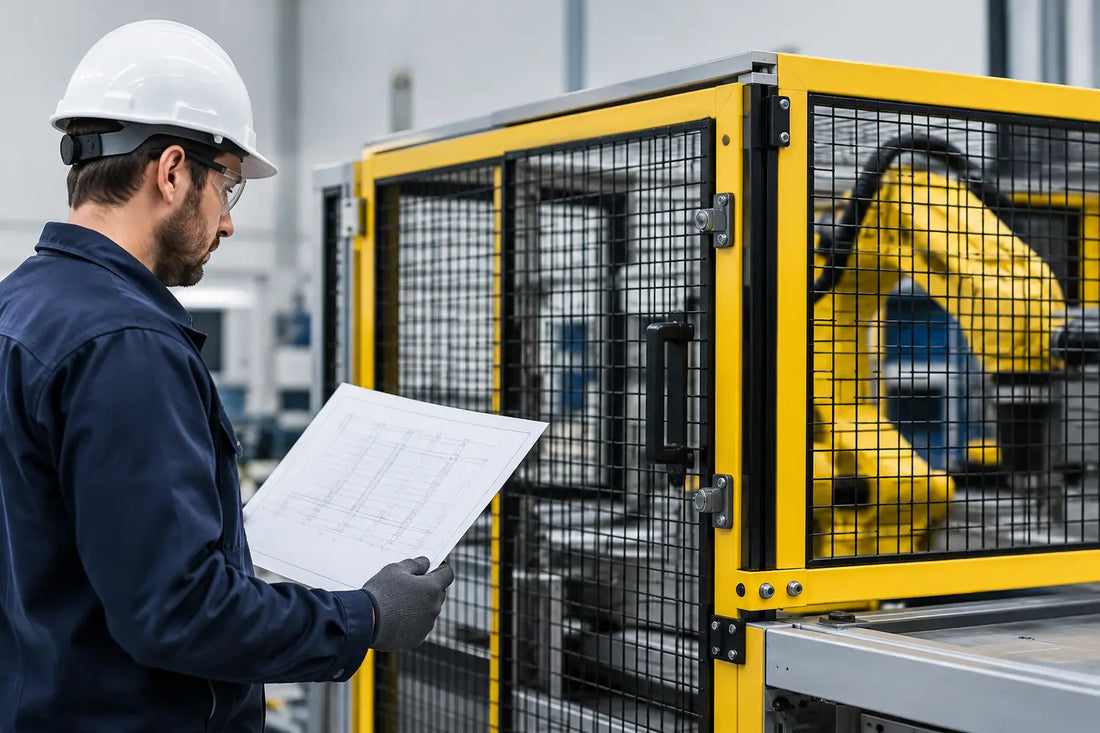

Machine Guard Panel Design Guide for Safer Builds

A guard panel that looks substantial can still leave a dangerous reach-through point, flex under impact or turn a five-minute maintenance task into an hour of downtime. Good guarding starts with the hazard and the way people actually use the machine. This machine guard panel design guide sets out the practical design decisions to make before sending panels for cutting and fabrication.

Start with the risk, not the sheet metal

A machine guard is part of a safety system, not simply an enclosure around moving parts. First identify where people could reach, climb, pass material through or access the machine during normal operation, cleaning, setting and fault finding. Consider rotating parts, pinch points, ejected material, sharp edges, heat, dust and noise where relevant.

In the UK, guards should be designed within the requirements of PUWER and the applicable machinery safety requirements. For new machinery, standards commonly considered include BS EN ISO 14120 for guard construction, BS EN ISO 13857 for safety distances, and BS EN ISO 14119 where interlocked guards are used. The final specification depends on the machine, its risk assessment and how it is supplied or modified. A panel layout cannot be signed off by appearance alone.

This matters when specifying mesh apertures, gaps under a guard and the distance between the guard and the hazard. A larger opening may improve visibility and airflow, but it may allow fingers, hands or arms to reach further into the danger zone. Moving the panel back can change what aperture is acceptable. These dimensions need to be based on the relevant safety-distance guidance, rather than a rule of thumb from an earlier job.

Fixed, interlocked or adjustable access

The most suitable panel arrangement depends on how often access is genuinely required. A fixed guard is usually the simplest and most dependable option where access is occasional. It should need a tool for removal and use fasteners that are retained where practical, so they do not disappear into the machine or onto the factory floor.

Where operators need routine access for loading, clearing or cleaning, a hinged door with an interlock may be more appropriate. The interlock should stop hazardous movement when the guard is opened, and it must not be easy to defeat. A well-made door panel is only one part of that solution: hinge position, closing alignment, lock location and the machine control system all need to work together.

Avoid designing a large removable panel simply because it is easy to manufacture. Large loose panels are awkward to handle, often get left off after maintenance and can create manual-handling issues. Split a wide enclosure into manageable sections, or use hinged access where repeated entry is expected.

Choose the panel type for the job

Solid sheet, perforated sheet, welded wire mesh and framed mesh panels each have a place. The right choice is usually driven by the hazard, the required visibility and the working environment.

Solid sheet gives the best containment for swarf, coolant splash and small ejected parts. It also suits areas where visibility is not needed. However, it can make inspection harder and may restrict airflow, so it is not automatically the best choice around heat-generating equipment.

Perforated sheet provides a neater, more rigid alternative where some visibility or ventilation is needed. The hole size, pitch and open area must still be checked against the required safety distance. Do not assume that a panel marketed as perforated safety sheet is suitable for every machine position.

Mesh gives good visibility and airflow, but can flex if it is not supported properly. It is often most effective when fixed inside a folded or welded frame. The frame controls the overall stiffness, protects exposed mesh edges and provides reliable fixing points. For higher-energy processes, assess whether mesh can contain the likely ejection hazard at all.

For most fabricated machine guards, mild steel offers an economical and practical starting point. Stainless steel is useful for wash-down, food-related environments and corrosive conditions. Aluminium can reduce weight on doors and removable sections, although it needs suitable framing and fastening detail to prevent excessive flexing.

Build stiffness into the machine guard panel design

Thin sheet can be laser cut accurately but still perform poorly once fitted. Panel stiffness is affected by material thickness, unsupported span, folds, return edges, framing and the number and position of fixings. A broad flat panel with a few corner bolts is likely to vibrate, rattle and bow long before it looks unsafe on a drawing.

Folds are one of the most cost-effective ways to strengthen a panel. A return along the edge, a folded channel or a shallow tray form can substantially improve rigidity while removing sharp exposed edges. Where folding is not possible, add a separate angle, box section or flat-bar frame.

Think about where force will be applied. Operators lean on guards. Forklift traffic, trolleys and loose stock can strike the lower sections. A panel fitted at knee height may need more support than an upper enclosure panel. If a guard must resist an expected impact, the supporting posts, brackets and anchor points matter as much as the sheet itself.

Allow sensible tolerances around the machine. Guards built too tightly can foul as equipment vibrates, heats up or is adjusted. Conversely, avoid casual oversized gaps at corners, beneath panels and around shafts or conveyors. Detail each interface deliberately.

Design for fabrication and fitting

A clear drawing reduces lead time and prevents avoidable rework. For laser-cut parts, provide a DXF where possible, with all cut-outs, holes and slots at finished size. If folds are required, supply a drawing or model showing bend direction, internal radii, finished dimensions and any critical datums.

Use consistent hole sizes and standard fasteners where you can. This makes the guard easier to assemble and easier to replace later. Slotted holes can help with site alignment, but use them with suitable washers and only where adjustment will not compromise safety clearances.

Do not place holes, narrow slots or fine detail too close to a bend line without checking fabrication allowances. Likewise, very narrow tabs and long unsupported strips can distort during cutting or handling. If the design includes mesh, clarify whether it is being supplied as a loose infill, welded into a frame or mechanically retained with cover strips.

For replacement panels, measure more than the outside dimensions. Record fixing-centre positions, hole diameter, fold depth, panel orientation, mesh aperture and whether the part sits inside or outside the frame. A photograph alongside a basic dimensioned sketch is often enough to begin a quote, especially when no original CAD file exists.

Details that improve day-to-day use

Good guarding should make safe behaviour the easy option. Add suitable handles to access doors, but keep them positioned so they cannot be used as steps or snag points. Use viewing areas where operators need to check material flow. Provide cable and hose routes that do not require a panel to be left open.

Labels, warning signs and transparent sections can help communicate hazards, but they do not compensate for poor physical protection. Similarly, a guard that is difficult to clean may encourage people to remove it permanently. Include access for routine cleaning and inspection at the design stage.

Before releasing the design, check the complete arrangement against the machine in use. Confirm the guard cannot be bypassed easily, access points are controlled, fixings are secure and there are no sharp edges or trapping points created by the guard itself. Also check that maintenance staff can carry out their work without improvising around the enclosure.

A well-designed panel is quicker to manufacture, simpler to fit and far more likely to stay in place. If you can provide a clear drawing, DXF or even a dimensioned sketch for a straightforward replacement, the fabrication process can move quickly without guessing at the details that keep people safe.
