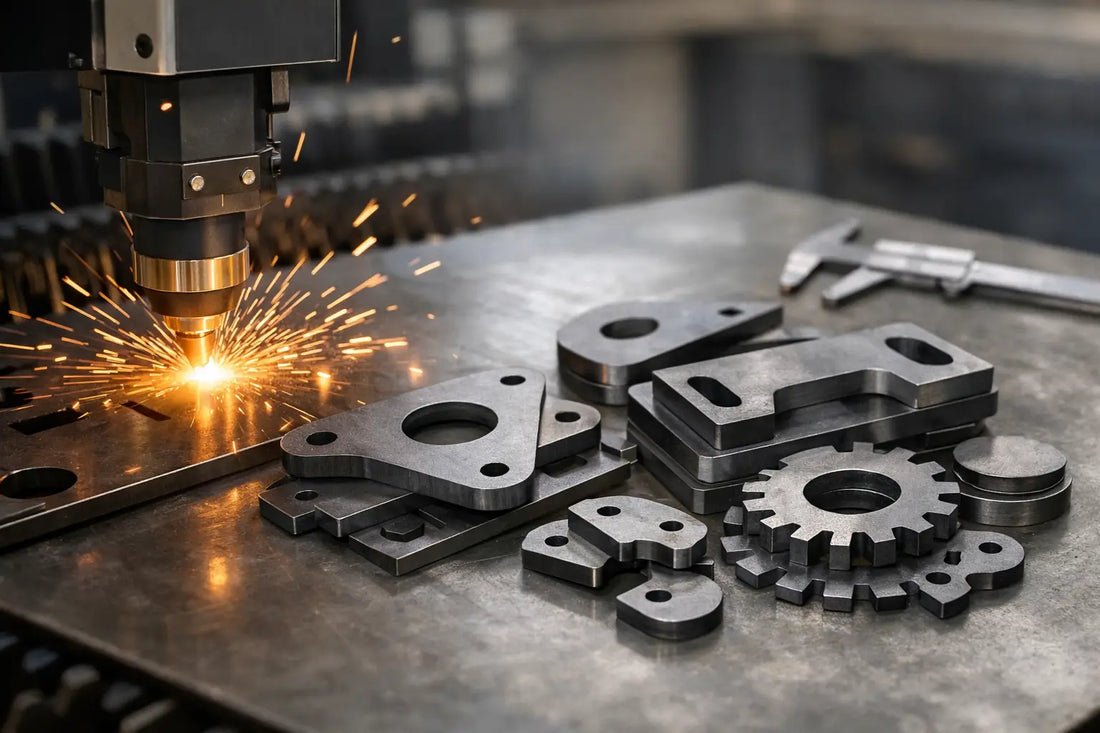

Laser Cut Mild Steel Parts for Fast Fabrication

A replacement bracket that holds up a maintenance job, a set of machine guards for a new build, or 200 repeat panels for production all have the same basic requirement: the part needs to arrive accurate, usable and on time. Laser cut mild steel parts offer a practical route to that result, without the cost and delay of tooling or setting up in-house cutting for every job.

Mild steel remains one of the most widely used materials in fabrication because it is affordable, readily available and easy to weld, drill, bend and paint. Combined with fibre laser cutting, it gives engineers, fabricators and makers a fast way to turn a drawing into a precise flat component.

Why mild steel suits so many fabricated parts

For general engineering work, mild steel is often the sensible starting point. It has the strength needed for brackets, base plates, flanges, covers, frames, gussets and repair pieces, while staying more economical than stainless steel or aluminium in many applications.

It is also forgiving in downstream fabrication. If the part is going to be welded into an assembly, folded on a press brake, tapped, painted or powder coated, mild steel is familiar territory for most workshops. A laser-cut edge is clean and consistent, which reduces the time spent marking out, trimming or cleaning up parts made by slower manual methods.

That does not mean mild steel is right for every job. Stainless steel may be the better choice where corrosion resistance or hygiene matters, such as food equipment or exposed outdoor installations. Aluminium can reduce weight where that is the priority. But for indoor machinery, structural fabrications and general industrial components, mild steel gives a strong balance of cost and performance.

What fibre laser cutting changes

Traditional methods still have their place, particularly for certain heavy-section work or very simple cuts. For sheet metal parts with profiles, holes, slots and repeated features, fibre laser cutting is usually faster and more accurate than cutting by hand, sawing or machining every outline.

A laser follows the geometry in the drawing, so a complex shape can be cut repeatedly without producing a physical template. This matters when you need matching left- and right-hand brackets, mounting holes that align with an existing assembly, or a batch of parts that must fit together reliably.

The process also makes smaller quantities more accessible. There is no need to justify expensive press tooling just to produce a one-off plate or a short prototype run. If the design changes after a test fit, the file can be revised and cut again. That flexibility is valuable during development, maintenance work and low-volume manufacturing.

Ordering laser cut mild steel parts: start with the job, not just the shape

A good cutting enquiry gives the supplier enough information to quote accurately and produce parts that work first time. A DXF file is normally the most direct route for custom profiles because it contains the geometry needed for laser cutting. It should be drawn full size, with the outline, holes and internal cut-outs clearly defined.

If a DXF is not available, a clear dimensioned drawing, specification sheet or even photographs of an existing part can still be useful for straightforward work. Include the material thickness, quantity and any critical dimensions. If the component has to mate with another part, say which holes, slots or outside dimensions are most important.

It helps to state what happens after cutting. A plate that will be folded needs bend information and suitable allowances in the flat pattern. A part intended for welding may benefit from practical features such as tabs, slots or weld-preparation details. If a part will be painted or powder coated, consider whether coating build-up affects close fits.

Choose thickness for the real load and process

Thickness is not simply a matter of making a part as heavy as possible. Thicker mild steel adds stiffness and strength, but also adds weight, material cost and fabrication effort. A thin cover panel and a load-bearing mounting plate should not be specified in the same way.

Think about how the part is supported, where the load is applied and whether it will be bent or welded. Long unsupported sections may flex even when the material seems substantial. In some cases, a formed return, a rib or a gusset gives a better result than increasing plate thickness across the whole component.

For a replacement part, measure the original material where possible, but also consider why it failed. If cracking occurred around a hole or bend, copying the exact profile may repeat the problem. Moving a hole away from an edge, increasing a radius or adding reinforcement can make a simple repair part last far longer.

Design holes, slots and corners sensibly

Laser cutting can produce fine detail, but every feature should have a purpose. Very small holes in thick material can be difficult to cut cleanly and may be better drilled or tapped after cutting, depending on the requirement. As a working rule, avoid specifying holes that are smaller than the material thickness unless the application has been discussed first.

Internal corners also need thought. A laser beam leaves a small radius rather than a perfectly sharp inside corner. This is rarely an issue for brackets and plates, but it can matter when a part must locate tightly around a square feature. Small corner reliefs, often called dog-bones, can allow a laser-cut part to fit where a sharp internal corner is needed.

Slots should allow for assembly tolerance, especially if they are used with bolts. A nominally exact hole pattern may be right for dowels or fixed locating points, while mounting brackets often benefit from slots that provide adjustment during installation. The best choice depends on whether alignment or adjustment is the priority.

Edge quality, tolerances and finishing

Laser cut edges are typically clean, but mild steel parts can still require finishing depending on their use. Small amounts of dross or a light burr may occur on some edges, particularly on thicker material or complex profiles. For most fabricated assemblies this is not a problem. For hand-held products, visible panels or parts that need a smooth paint finish, request deburring or allow time for edge dressing.

Tolerance should be specified where it matters, rather than applying tight tolerances to every feature by default. Tight tolerances can increase checking, handling and cost, yet a general fabrication bracket may only need accurate hole centres and a sensible outside profile. Clearly marking critical dimensions helps avoid paying for precision that the job does not need.

Mild steel will also need protection if it will be exposed to moisture. Freshly cut mild steel is not corrosion-resistant. Primer and paint, powder coating, plating or galvanising may be suitable options, depending on the environment and the part design. If galvanising is planned after fabrication, account for venting and drainage requirements on hollow assemblies.

One-off parts and production batches need different thinking

A one-off part should be quick to order and practical to make. Standard shapes such as discs, rings, plates and flange plates can be ideal where only the diameter, hole pattern or thickness needs changing. For a simple job, this can remove the need to create a full CAD drawing from scratch.

For bespoke profiles, prototypes are worth treating as a check of the complete process, not just the cut shape. Test the hole positions, fold lines, mating features and clearance for bolts, bearings or wiring before committing to a larger quantity. A small change at this stage can prevent an expensive batch of unusable parts.

Repeat production benefits from keeping the approved file and specification consistent. Give parts a clear revision number, confirm material grade and thickness, and record any finishing or packing requirements. If the same component is ordered regularly, this makes reordering simpler and reduces the risk of a drawing revision being confused with an older version.

Keeping cost under control

Material thickness, overall size, cutting length, number of pierces and quantity all affect price. A large simple plate may take less cutting time than a smaller component covered in holes and detailed cut-outs. Nesting multiple parts efficiently on a sheet can also make a difference, particularly for batches.

There are practical ways to reduce cost without weakening the design. Avoid decorative internal detail that serves no function, use standard material thicknesses where suitable, and combine compatible parts into one order. If several small components are needed, leaving them connected with tabs in a carrier sheet can make handling easier, although they will need snapping out and dressing afterwards.

The cheapest part is not always the best-value part. Saving a small amount on material can be false economy if the finished component bends, corrodes early or takes extra workshop time to fit. The aim is a part that performs properly and gets the job moving.

A straightforward route from drawing to part

Whether you need a single repair plate or a repeat batch for a production line, clear information makes the process quicker. Supply the best drawing or file you have, state the material, thickness and quantity, and flag the dimensions that cannot be compromised. If you are unsure about a feature, ask before the parts are cut rather than trying to solve it on site afterwards.

NKD Services works with one-off orders as well as larger quantities, giving customers a practical way to source laser-cut components without unnecessary minimums. The right mild steel part is rarely the most complicated one - it is the one that fits, performs and arrives when the work needs to continue.
