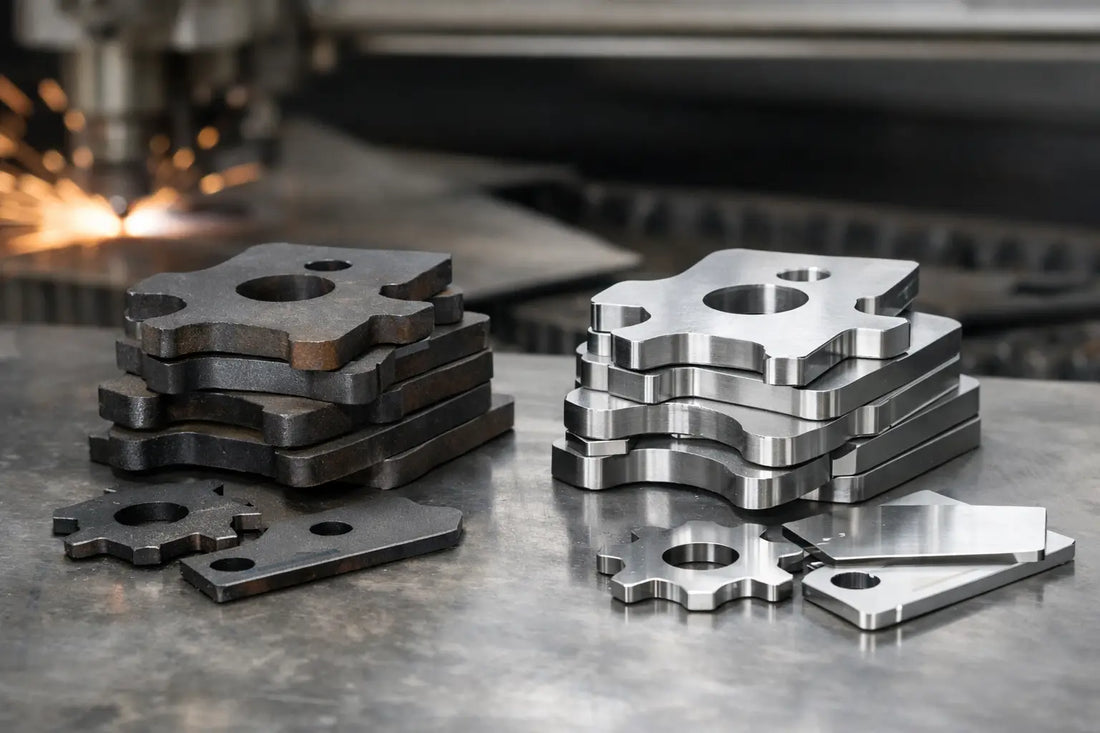

Mild Steel vs Stainless Steel for Cut Parts

A bracket can look right on a drawing and still be wrong for the job if the material choice is off. In the mild steel vs stainless steel decision, the main question is not which material is better overall. It is which one suits the environment, finish, budget and fabrication work your part will face.

For laser-cut brackets, panels, rings, plates and replacement parts, mild steel is often the practical, cost-effective option. Stainless steel earns its higher price where corrosion resistance, hygiene or a clean visible finish matter. Choosing early can prevent unnecessary finishing costs, premature rusting and delays later in the build.

Mild steel vs stainless steel: the basic difference

Mild steel is a low-carbon steel. It is widely used across general fabrication because it is affordable, readily available and straightforward to cut, drill, form and weld. The term can cover several grades, but for most sheet-metal buying decisions, it means standard carbon steel sheet suited to painted, coated or indoor fabrications.

Stainless steel is an alloy steel containing chromium. The chromium forms a protective surface layer that helps the material resist corrosion. Common sheet grades include 304 stainless steel for general-purpose use and 316 stainless steel where conditions are harsher, such as coastal, chemical or food-processing environments.

Neither material is automatically the right choice. A painted mild steel machine guard in a dry workshop may be better value than stainless. A stainless enclosure used outdoors without a coating system may save time and maintenance over its working life.

Cost: where mild steel usually wins

Material cost is normally the first clear difference. Mild steel sheet costs less than stainless steel, particularly on larger panels or repeat batches where every square millimetre adds up. It is a sensible choice when the part will be painted, powder coated, zinc plated or installed in a protected indoor setting.

Stainless steel costs more to buy and can add to processing costs. However, buying on sheet price alone can be misleading. If mild steel needs galvanising, powder coating or regular repainting to survive its working environment, the finished cost gap can narrow. For a visible outdoor part, the expense of stainless may be justified by reduced maintenance and a longer service life.

For prototypes, consider the final application rather than simply ordering the cheapest first sample. A mild steel prototype is useful for checking fit, hole positions and assembly. If the production part needs to sit outside in rain, though, the final batch may still need stainless steel or a specified corrosion-protection finish.

Corrosion resistance and where the part will be used

Untreated mild steel rusts when moisture and oxygen reach the surface. Condensation, wet hands, road spray and a damp store are often enough to start corrosion. Laser cutting exposes fresh edges, so even a coated mild steel part needs proper finishing around holes and cut profiles.

Mild steel is still a sound choice for dry internal equipment, structural frames, workshop fixtures, mounting plates and parts that will receive a suitable protective finish. Paint, powder coating, galvanising and plating can all improve corrosion resistance, but each option affects cost, lead time and sometimes tolerances.

Stainless steel is generally the safer material for wet, external or wash-down environments. Grade 304 is suitable for many architectural, catering, commercial and general outdoor applications. Grade 316 offers improved resistance to chlorides, making it more suitable for coastal locations, marine-adjacent equipment and certain industrial settings.

Stainless is not completely maintenance-free. Tea staining, surface contamination and corrosion can still occur, especially where iron particles from mild steel tools or grinding dust are left on the surface. A specified finish and sensible cleaning procedure matter when appearance or hygiene is critical.

Strength, stiffness and thickness

People often assume stainless steel is always stronger. The reality depends on the exact grade, temper and material thickness. Stainless sheet can offer higher tensile strength than standard mild steel, but that does not mean a thinner stainless part will always behave the same way in a fabricated assembly.

For many brackets and flat components, stiffness is driven more by thickness, bend geometry and the distance between fixing points than by the material name. A folded 3 mm mild steel bracket may perform better than a flat 2 mm stainless bracket, despite stainless having useful mechanical properties on paper.

This is where a drawing review is worthwhile. If a component is carrying a load, resisting vibration or spanning an opening, specify the material grade, thickness and fixing arrangement together. Do not rely on a direct one-for-one swap between mild and stainless steel unless the design has been checked.

Mild steel is particularly well suited to heavier fabricated work where thickness and economical material usage are priorities. Stainless is often chosen for thinner, cleaner-looking panels, guards and housings, provided its forming behaviour is allowed for.

Laser cutting and edge quality

Both materials are well suited to fibre laser cutting. A well-prepared DXF file can produce accurate profiles, slots, holes and repeat parts in either material, from one-off components through to production quantities.

Mild steel is generally straightforward to cut, particularly in common fabrication thicknesses. Depending on thickness and cutting method, it may have a small amount of oxide on the cut edge. This is usually not a concern for painted or welded fabrications, but it can need cleaning if the edge is being coated, machined or used as a visible face.

Stainless steel is often cut using nitrogen assist gas to help produce a cleaner, brighter edge with minimal oxide. This can be useful for exposed parts, food-related equipment and assemblies where the edge will remain visible. It also contributes to the higher processing cost of stainless compared with mild steel.

For either material, make sure small holes, narrow webs and tight internal corners are realistic for the sheet thickness. Good laser cutting starts with a sensible drawing. Where a feature is too fine for the thickness, changing the design before manufacture is quicker and cheaper than correcting parts after delivery.

Welding, forming and finishing

Mild steel is generally easier and more forgiving for routine welding and fabrication. It suits MIG welding, grinding, painting and common workshop processes. This makes it popular for frames, bases, machine brackets and parts that will be modified during assembly.

Stainless steel can also be welded and folded successfully, but it needs cleaner handling and the correct consumables. Stainless is prone to work hardening, so bending and forming may require more force than an equivalent mild steel component. Poor welding practice can reduce corrosion resistance around the weld area, particularly if heat tint is not cleaned where appearance or service conditions demand it.

Finishing should be considered before ordering the cut part. If mild steel will be powder coated, allow for coating thickness on close-fitting slots, threads and mating faces. If stainless will be brushed, polished or grain-finished, agree which face is visible and whether protective film is required during fabrication. These details are often more useful than simply writing “stainless” on a drawing.

Which material suits common parts?

Mild steel is usually the sensible starting point for painted brackets, internal mounting plates, machine bases, structural tabs, workshop jigs and replacement parts used away from moisture. It gives good value, easy fabrication and a wide range of finishing options.

Stainless steel is often the better fit for catering equipment, wash-down areas, outdoor signage components, visible architectural plates, laboratory equipment, medical-adjacent enclosures and parts exposed to regular moisture. It is also useful where a clean metallic finish is part of the product rather than an afterthought.

There are grey areas. An outdoor electrical cabinet may use mild steel successfully if it is properly designed, sealed and powder coated. A stainless component inside a dry factory may be unnecessary unless cleanliness, appearance or customer specification calls for it. The working environment and expected lifespan should guide the choice.

Getting the specification right before cutting

A clear order specification avoids back-and-forth and helps get parts into production quickly. State the material as precisely as the job requires, such as mild steel or 304 stainless steel, then include thickness, quantity, finish requirements and whether one or both faces are cosmetic.

For bespoke profiles, provide a dimensioned drawing or DXF file where possible. If you only have a photo, paper sketch or existing part, include key measurements, hole sizes and the intended use. A cutting supplier can then flag obvious issues before material is committed.

At NKD Services, one-off orders and repeat runs can both be cut to suit the job. That means you can test a design in the material you expect to use, rather than making assumptions from a substitute sheet.

The best material choice is the one that performs for the full life of the component, not merely the one that looks cheapest on the quote. Put the part’s environment and finish at the centre of the decision, and your cut components will be easier to assemble, protect and rely on.
