Laser Cutting Versus Punching for Sheet Metal

A replacement guard is needed for a machine that is stopped. A batch of brackets has to fit existing holes first time. Or a new enclosure is still changing between prototype revisions. In cases like these, laser cutting versus punching is not a theoretical choice - it affects lead time, unit cost and how quickly you can get usable parts on the bench.

Both processes produce accurate sheet metal components, but they solve different production problems. Laser cutting is generally the more flexible route for custom work, mixed orders and changing designs. Punching can be very efficient when a stable design calls for high volumes of repeated holes, forms or cut-outs.

Laser Cutting Versus Punching: The Main Difference

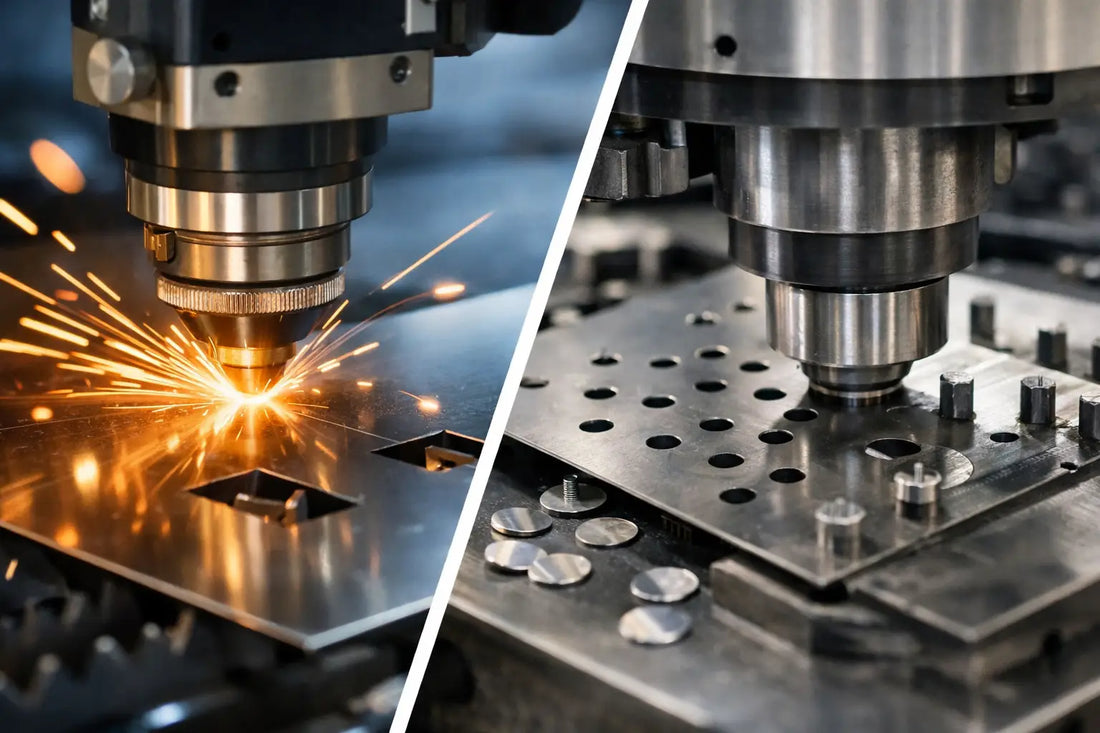

A fibre laser cuts the profile by focusing a high-powered beam onto the sheet. The cutting path is controlled directly from the CAD drawing, so a different shape normally needs a different programme rather than a new physical tool. This makes laser cutting well suited to one-off parts, prototypes, replacement components and short to medium production runs.

Punching uses a press with shaped punches and dies to shear features from sheet metal. A turret punch press may hold a range of common tools for round holes, slots, squares and other standard forms. For parts that need a feature outside the available tool range, a dedicated punch and die may be required.

That difference in tooling drives much of the decision. If your drawing may change, or you only need a few components, avoiding bespoke tooling can save both money and delay. If you are making thousands of identical parts with repeat features, punching may earn back its tooling cost through fast cycle times.

When Laser Cutting Is the Better Fit

Laser cutting works from a DXF file and can follow almost any practical 2D profile. Complex external shapes, irregular apertures, tabs, brackets and lettering can be cut without changing physical tools between features. It is a useful option where parts are customised, even if only a hole position or overall size changes from one order to the next.

This flexibility matters on real jobs. A fabricator may need ten mounting plates in three sizes. A maintenance team may have one worn component to copy. A product developer may be testing two versions of a panel before committing to production. Setting up punch tooling for each variation would rarely make commercial sense, while laser cutting can move from drawing to production quickly.

It is also strong for fine detail and closely spaced features, provided the design is suitable for the material thickness. Fibre laser cutting delivers clean, accurate profiles in mild steel, stainless steel and aluminium, with no contact tool pressing against the sheet. For components that will be welded, folded, painted or assembled, a consistent profile and reliable hole placement are often more valuable than chasing the lowest possible price on a very high-volume run.

Laser cutting is not automatically the cheapest option for every job. Cutting long perimeters, particularly in thicker material, takes machine time. A part covered in hundreds of identical small round holes may be faster to punch when the correct tooling is already set up. The right question is not simply which process costs less per part. It is whether the process suits the drawing, quantity and deadline.

No dedicated tooling for changing designs

With laser cutting, altering a hole diameter, adding a notch or revising an outer profile is primarily a drawing and programming change. That gives buyers room to improve a design without writing off a bespoke tool. It also makes small orders viable, including a single replacement part.

For customers without a finished DXF, a clear dimensioned drawing, photograph or specification can still provide a starting point for simpler work. The more complete the information, the faster a supplier can confirm what is practical and quote accurately.

When Punching Has the Advantage

Punching comes into its own when designs are settled and quantities are high. A standard part with repeated holes or louvres can be produced at an impressive rate, particularly where the machine has the required tools ready to use. The press can also create certain formed features, such as countersinks, dimples, louvres and extrusions, that a laser cannot produce by cutting alone.

For example, an electrical enclosure panel made in large numbers may need rows of standard apertures and formed fixing points. Punching can combine several operations efficiently. If the panel geometry remains unchanged for a long production programme, the tooling cost can be spread across a large number of parts.

There are limits. A punch needs clearance around each feature, and the available tool shapes influence the design. Large or unusual cut-outs may require nibbling, where overlapping hits build up a shape. This can leave small witness marks on the edge and may be slower than laser cutting for complex profiles. Special shapes may also mean special tooling, with associated cost and lead time.

Punching can produce burrs on one side of the sheet, depending on material, tooling condition and settings. These may need removing where appearance, handling or fit is critical. Laser-cut edges may also require finishing in some applications, especially where a painted or cosmetic surface is required, but the likely edge condition should be discussed against the part’s end use rather than assumed.

Cost: Look Beyond the Price Per Part

The lowest unit price is not always the lowest job cost. Punching often has a front-loaded cost in tooling and setup. Laser cutting has less upfront commitment but its cost is linked more directly to material, thickness, cutting length, pierce count and machine time.

For a one-off flange plate or a small batch of bespoke brackets, laser cutting is usually the straightforward choice. You pay for the parts you need rather than investing in a tool that may never be used again. It also avoids minimum-order pressure that can leave you with surplus stock and cash tied up on the shelf.

For a repeat part ordered in large quantities, ask for a comparison based on annual demand rather than one batch alone. If the same component will be required month after month without changes, punching may offer a lower ongoing cost. If orders are irregular, volumes fluctuate or designs are still being refined, the flexibility of laser cutting is often worth more.

Material utilisation should be part of the calculation too. Efficient nesting reduces waste by arranging parts tightly on the sheet. This is relevant to both methods, particularly with stainless steel and aluminium where material cost can form a significant share of the job price.

Accuracy, Tolerances and Part Design

Neither process should be selected solely because it is described as accurate. What matters is the tolerance on the feature that affects function. A general bracket may have generous tolerances, while a locating plate, bearing mount or panel that mates with another component may need much tighter control.

Laser cutting is particularly useful for detailed contours and non-standard hole patterns. However, very small holes in thick plate, narrow webs and sharp internal corners need sensible design rules. As a practical guide, avoid specifying tiny slots or holes that are not proportionate to the material thickness, unless there is a clear functional reason and the supplier has confirmed they can be produced.

Punching performs best with features that suit available tooling. Standard round holes and slots are usually efficient. If a feature must be unusually shaped, close to an edge or positioned near another formed feature, it is worth checking manufacturability early. A small drawing change can prevent cracked edges, distortion or avoidable secondary work.

For both methods, provide the material grade, thickness, quantity, critical dimensions and any finish requirements. If a hole is for a particular bolt, rivnut or mating component, say so. The nominal diameter alone may not tell the full story once coating thickness, assembly clearance and tolerances are considered.

A Practical Way to Choose

Start with the quantity and how settled the drawing is. Low quantities, bespoke profiles and frequent revisions point towards laser cutting. High, repeatable volumes with standard punched features may point towards punching, especially if formed features are needed.

Then consider the deadline. Waiting for a custom punch tool can be hard to justify when a machine is down or a prototype needs approval. Laser cutting can remove that tooling stage and is often the quicker route from approved drawing to cut parts.

Finally, think about what happens after cutting. If parts require bending, welding or powder coating, the cut process is only one part of the job. Good drawings and clear requirements will do more for a trouble-free result than choosing a process based on a headline rate.

For custom sheet metal parts in mild steel, stainless steel or aluminium, NKD Services can assess the drawing, material and quantity and provide a practical laser-cutting route. Send the clearest file or specification you have, flag the dimensions that matter most, and choose the process that keeps your project moving rather than adding unnecessary tooling and delay.
