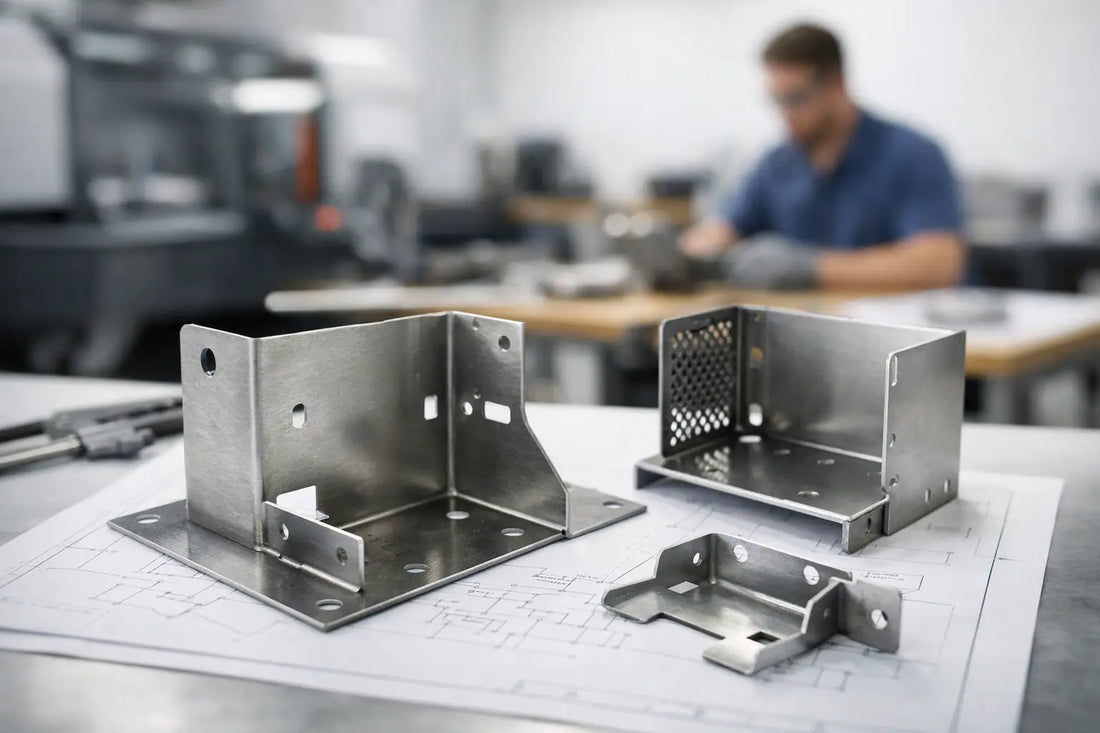

Rapid Sheet Metal Prototypes Built for Testing

A prototype is only useful if it arrives early enough to change the design. Rapid sheet metal prototypes give engineers, fabricators and product developers a practical way to test fit, strength and assembly before committing to a larger production run. Whether you need a one-off mounting bracket, an enclosure panel, a replacement guard or a set of development parts, the aim is simple: get accurate components made quickly, without being forced into a high minimum order.

Where rapid sheet metal prototypes save time

A CAD model can show whether parts look right, but it cannot always reveal how they behave on the bench or in the machine. A bracket may clash with a motor body, a fixing hole may be awkward to reach, or a panel may need a larger return to stop it flexing. Cutting the part and handling it usually exposes these issues faster than another round of screen-based changes.

This is particularly useful when a project has moving parts, existing equipment to work around or dimensions taken from an older component. Maintenance teams often need to replace an obsolete plate or guard with limited drawings available. Makers and small manufacturers may be refining a product in small steps. In both cases, ordering a first part or small set makes more sense than paying for a full batch before the design has been proven.

Laser-cut prototypes are also useful for checking the production process itself. They let you confirm that fasteners fit, folded sections line up and purchased components can be assembled as intended. If the first version needs adjusting, altering a drawing is far cheaper and quicker than reworking a large quantity of finished parts.

Start with the job the part needs to do

The quickest route to a usable prototype is not always the quickest route to a cut file. Before drawing, decide what the part is required to do. Is it carrying load, locating another component, shielding an operator, covering an opening or simply providing a neat mounting surface? The answer affects material, thickness, hole positions and whether the part needs further operations after cutting.

Mild steel is a sensible choice for many brackets, frames, plates and general engineering parts where strength and cost matter. Stainless steel suits jobs needing corrosion resistance, a clean finish or use in damp environments. Aluminium is often chosen where weight is a concern, although the required thickness and stiffness should be considered carefully. A thin aluminium panel may be light, but it may not perform like a steel equivalent.

For early development work, it can be worth using the intended production material rather than the cheapest available option. A prototype made from a different metal can give misleading results on stiffness, weight, welding behaviour or finish. On the other hand, if you are only checking hole centres and overall fit, a lower-cost test part may be entirely suitable. It depends on what you need to learn from the first sample.

Treat thickness as part of the design

Sheet thickness is not just a purchasing detail. It changes part weight, bend behaviour, thread options and clearance around fixings. A thicker plate can make a bracket stronger, but it may also interfere with an adjacent assembly or make a folded design harder to form.

Where a part will be bent after laser cutting, allow for the bend radius and keep holes, slots and cut-outs clear of the bend area where possible. Features placed too close to a bend can distort or become difficult to form cleanly. If a folded section must mate with another component, state the critical finished dimensions clearly rather than relying only on the flat pattern.

Designing rapid sheet metal prototypes for laser cutting

Laser cutting produces accurate two-dimensional profiles, but a good result starts with a practical drawing. A clean DXF file is normally the most efficient option because it gives the cutter a direct profile to work from. Draw in millimetres, use a 1:1 scale and make sure all outlines are closed. Duplicate lines, tiny gaps and overlapping entities can create avoidable delays at quotation or programming stage.

If you do not have a DXF file, a clear dimensioned sketch, photo or specification sheet can still be useful for simple work. Include overall length and width, hole diameters, centre distances, material and thickness. Mark which dimensions are critical. A rough drawing with all the necessary information is more useful than an impressive-looking sketch that leaves the key measurements open to guesswork.

Laser cutting has a small kerf, meaning material is removed as the beam follows the cut path. For most general prototype work this is handled during manufacture, but very tight fits need thought. Press-fit tabs, close-fitting slots and precisely located holes should be identified from the start. If two parts need to slide together, allow sensible clearance unless you are deliberately testing an interference fit.

As a practical rule, avoid specifying tiny holes or narrow slots that are smaller than the sheet can reliably support. Very fine features may be possible in some materials and thicknesses, but they can add cost, increase risk of distortion or leave fragile edges. If a small feature is essential, ask for it to be reviewed against the chosen material rather than assuming the same detail will work across every thickness.

Use tolerances where they matter

Not every dimension needs the same tolerance. Applying a very tight tolerance across a whole part can increase cost without improving the function. Instead, identify the features that locate the part, carry bearings, accept dowels or align with another assembly. These are the dimensions that should be controlled most closely.

For example, the outside profile of a machine cover may be relatively forgiving, while the centres of four mounting holes are critical. A flange plate may need an accurate central opening but have generous allowance around its outer edge. Giving this context on the drawing helps avoid both over-engineering and unpleasant surprises when the part arrives.

Build a prototype order around the next decision

The quantity for a prototype is rarely just one because one part is all you will ever need. It is often more practical to order enough parts to test alternatives, make a second assembly or keep a spare. A pair of handed brackets, several panel variations or a small set for colleagues can answer questions quickly without turning the order into a production commitment.

Think about what will happen after cutting as well. Will the part be folded, welded, painted, powder coated, drilled, tapped or fitted with inserts? Laser cutting provides the profile, but the downstream process can determine whether the design is truly economical. A part with many separate tabs and welded-on pieces may be right for a first test, yet a folded alternative could be better for repeat manufacture.

For folded and fabricated items, it is useful to test assembly sequence as well as physical fit. Can a welder access the joint? Can a spanner reach the nut after the panel is fitted? Is there room to apply a finish without masking critical faces? These are ordinary workshop questions, but they are exactly the questions that prevent prototype changes becoming expensive production changes.

Keep the quote process moving

Fast turnaround depends on complete information. Include the material grade where relevant, thickness, quantity and any required finish or secondary process. Name the file clearly and provide a revision reference, especially if several versions are being discussed. Sending a file called final-final-new.dxf is an easy way to create uncertainty when time is short.

It also helps to separate must-have requirements from preferences. If the part must be stainless, say so. If aluminium would be acceptable to reduce weight, make that clear. If a hole size is provisional and you are testing several options, state this rather than treating the first prototype as a fixed production drawing.

NKD Services supports both straightforward standard shapes and bespoke cut profiles, so a simple disc, ring, plate or flange does not need the same level of drawing work as a complex assembly component. For custom profiles, a clean file and clear specification give the best chance of a quick, accurate response.

When a prototype should become a batch

A successful first-off part is not always ready for a larger order. Before moving into repeat production, review the prototype with the people who will make, fit and use it. Check the dimensions after any bending or welding, confirm the finish is suitable, and make sure the material choice is still appropriate for the working environment.

If changes are needed, record them in the drawing rather than relying on verbal notes from the first build. A controlled revision makes repeat orders simpler and helps ensure the part you approved is the part that gets made next time. Once the design is stable, laser-cut batches can be a straightforward way to maintain consistency while keeping stock levels sensible.

The best prototype is not the one with the most detail on paper. It is the one that answers the next real question in your project, quickly enough for you to act on the result.
