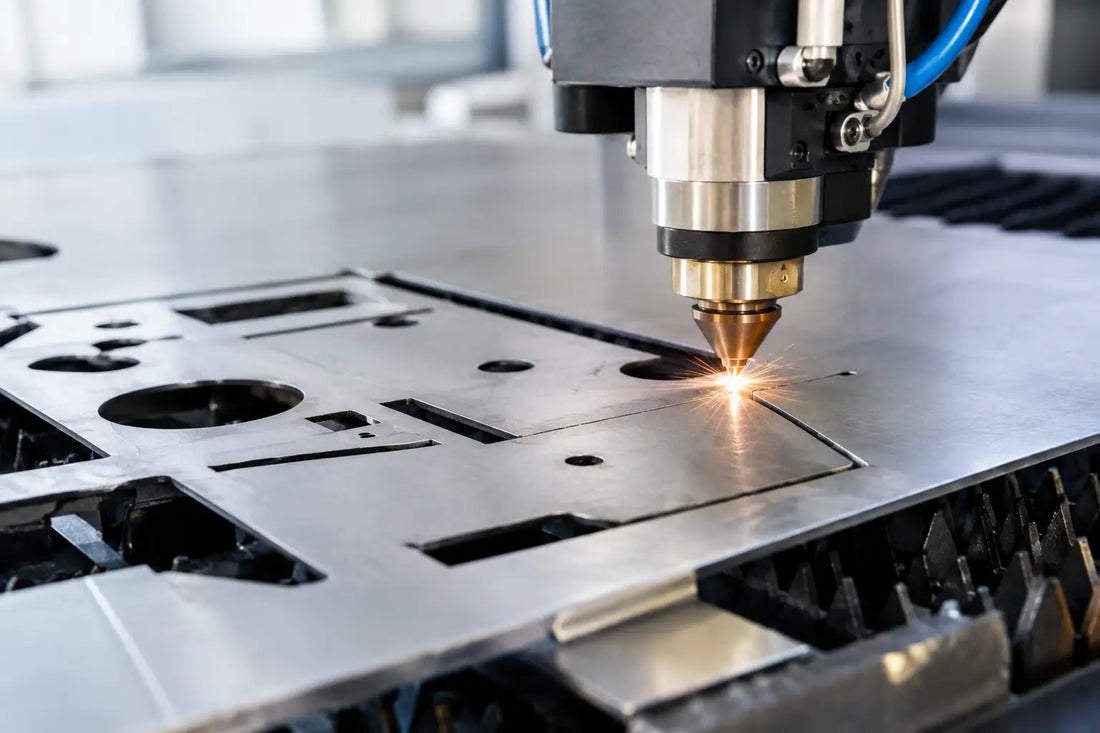

Prototype Metal Part Laser Cutting for Fast Testing

A prototype bracket is only useful if it fits the first time. If a hole is misplaced, a bend allowance has been missed, or the material is too light for the job, the test stops before it has properly started. Prototype metal part laser cutting gives engineers, fabricators and product developers a quick, practical way to turn a drawing into a real component without committing to a large production order.

For a one-off panel, replacement mounting plate, machine guard, flange or test assembly, fibre laser cutting is often the most direct route from design to part. It produces clean, accurate profiles in sheet metal and makes it easier to revise a design after a physical trial. The key is to treat the prototype as part of the engineering process, not simply as a smaller version of the final order.

Why prototype metal part laser cutting matters

A CAD model can confirm dimensions, but it cannot always reveal how a part behaves in the workshop or on site. A physical prototype can show whether fasteners are accessible, whether a cable route is obstructed, whether a plate clears an adjacent component, or whether a fabricated assembly can actually be put together in the intended order.

Laser cutting suits this stage because there is no dedicated press tool to produce. Once the profile is ready, the part can be cut directly from sheet material. That keeps the entry cost sensible for single parts and small batches, while allowing the same design to move into repeat production when it is proven.

Speed matters here, but so does avoiding false economy. Ordering the cheapest possible test part can be costly if the wrong material or an unclear drawing creates another round of changes. A useful prototype should answer a specific question: does it fit, does it function, can it be made reliably, or is it ready for a small production run?

Start with the test you need to carry out

Before choosing a material or sending a file, define what the part needs to prove. A simple fit-check part may only need the correct profile and hole positions. A working prototype may need the final material grade, thickness and finish because stiffness, weight, heat resistance or corrosion resistance are all relevant.

For example, an aluminium cover might be ideal for checking access, weight and clearance, but it will not tell you how a mild-steel production bracket performs under load. Equally, a mild-steel trial part can confirm a welding fixture works, while a stainless-steel version may still be needed to check appearance and finish for a food, marine or external application.

This is where prototypes prevent avoidable production problems. It is often quicker to test two or three sensible variants than to place a larger order based on assumptions. A slightly wider slot, a revised mounting pattern or a thicker plate can be inexpensive changes at prototype stage and expensive corrections once assemblies are already being built.

Choose material for the job, not just the price

Mild steel, stainless steel and aluminium all have their place in prototype work. The right choice depends on what is being tested and how close the prototype needs to be to the final part.

Mild steel is a practical option for general brackets, mounting plates, machine parts and welded fabrications. It is widely used, cost-effective and suitable where coating, painting or further fabrication will follow. If the prototype is mainly checking dimensions or assembly, mild steel often makes good commercial sense.

Stainless steel is appropriate where corrosion resistance, hygiene, appearance or exposure to moisture matters. It is common in catering equipment, outdoor installations, processing environments and applications where a painted finish is not wanted. Different stainless grades and surface finishes can affect the final result, so it is worth specifying the requirement rather than assuming all stainless sheet is interchangeable.

Aluminium is lighter and naturally corrosion resistant, making it useful for enclosures, vehicle components, lightweight frames and covers. It can be the best option where handling weight matters, but it is not a direct substitute for steel. Its stiffness, thread performance and welding behaviour differ, so a prototype intended to test a loaded steel part should normally be cut from steel.

Thickness deserves the same attention. A part that looks fine in a drawing can flex too much in reality. Conversely, making a prototype overly heavy may hide a design issue or add unnecessary cost. If the component will be bent, welded, tapped or countersunk after cutting, state that early. These operations influence material and thickness choices.

Preparing a drawing that cuts cleanly

A DXF file is normally the clearest starting point for laser-cut profiles. It gives the cutter direct geometry to work from and reduces the risk of dimensions being interpreted from a PDF. Make sure the file is drawn full size in millimetres and contains only the profile required for cutting.

Closed outlines are essential. Gaps, overlapping lines and duplicate entities can lead to delays while the file is checked or corrected. Holes, slots and internal cut-outs should be included at their finished positions. If there are engraved marks, fold lines or part numbers, make it clear whether they are to be etched, marked or simply shown for reference.

A quick check before sending the drawing can save time:

• Confirm the overall length, width and thickness required.
• Check hole diameters against the fasteners or fixings being used.
• Remove dimensions, title blocks and notes from the cutting geometry.
• State the material, quantity and whether the edges need deburring.

Not every job starts with CAD. For a straightforward replacement plate or basic bracket, a clear sketch, paper drawing, photo or specification sheet may be enough to begin a conversation. Include as many measurements as possible, identify critical dimensions, and show the part against a ruler where a photo is being used. For complex parts, however, a properly prepared DXF remains the best route to accuracy and speed.

Account for laser cutting tolerances and real-world assembly

Laser cutting is precise, but no manufacturing process removes the need for sensible tolerances. If a hole must accept a bolt, pin, bearing or another mating component, the nominal size alone may not be enough. Clearance requirements, coating thickness and the condition of the mating part all matter.

A close-fitting slot may work perfectly in CAD yet be awkward to assemble after powder coating. A tapped hole may need to be cut at the correct tapping size rather than the final thread diameter. A tab-and-slot assembly may require enough clearance to locate easily while still holding parts square for welding.

Small internal features need particular care. Very narrow slots, tiny holes and sharp internal corners are affected by material thickness and the laser kerf. If a feature is critical, say so. It may be better to adjust the design slightly for repeatable cutting than to force a theoretical dimension that creates inconsistent results or slows production.

Also consider the cut edge. Fibre laser cutting generally leaves a clean edge, but thicker material, certain geometries and the chosen material can produce some edge texture or light burr. Where appearance, handling or coating adhesion is important, discuss whether deburring or a secondary finishing process is needed.

Use the prototype to improve the production part

The first part should go to the place where it will be used, not straight into a drawer. Fit it to the machine, offer it up to the existing frame, assemble it with the correct fixings and let the people who will fabricate or maintain it handle it. They are often the first to spot a spanner clearance issue, an awkward sharp corner or a feature that is difficult to orientate during assembly.

Record changes directly against the revision. This avoids the common problem of several almost-identical drawings circulating between purchasing, the workshop and the customer. A simple revision letter or issue date can prevent an old prototype file being ordered again by mistake.

When the design is approved, keeping the same material, thickness and drawing revision makes moving to a repeat order far more straightforward. If the final batch needs a different quantity, folded features, finishing or delivery arrangement, establish that before production starts rather than after parts have been cut.

A practical route from one part to repeat orders

One-off orders should not be treated as inconvenient small jobs. They are often the start of a repair, a new machine build or a product line that will need more parts later. NKD Services supports both standard shapes that can be ordered quickly and bespoke laser-cut profiles quoted from customer drawings, so buyers can test an idea without taking on a high minimum order.

For the best turnaround, provide a clean drawing, the material and thickness, the quantity, and a clear note of anything that cannot be changed. If you are still deciding between options, say what the part is intended to do. A practical manufacturing conversation early on is usually faster than remaking a part after delivery.

The value of a prototype is not that it looks finished. Its value is that it gives you a reliable answer before time and money are committed. Start with the part that needs testing most, make the result clear, and let the next revision earn its way into production.
