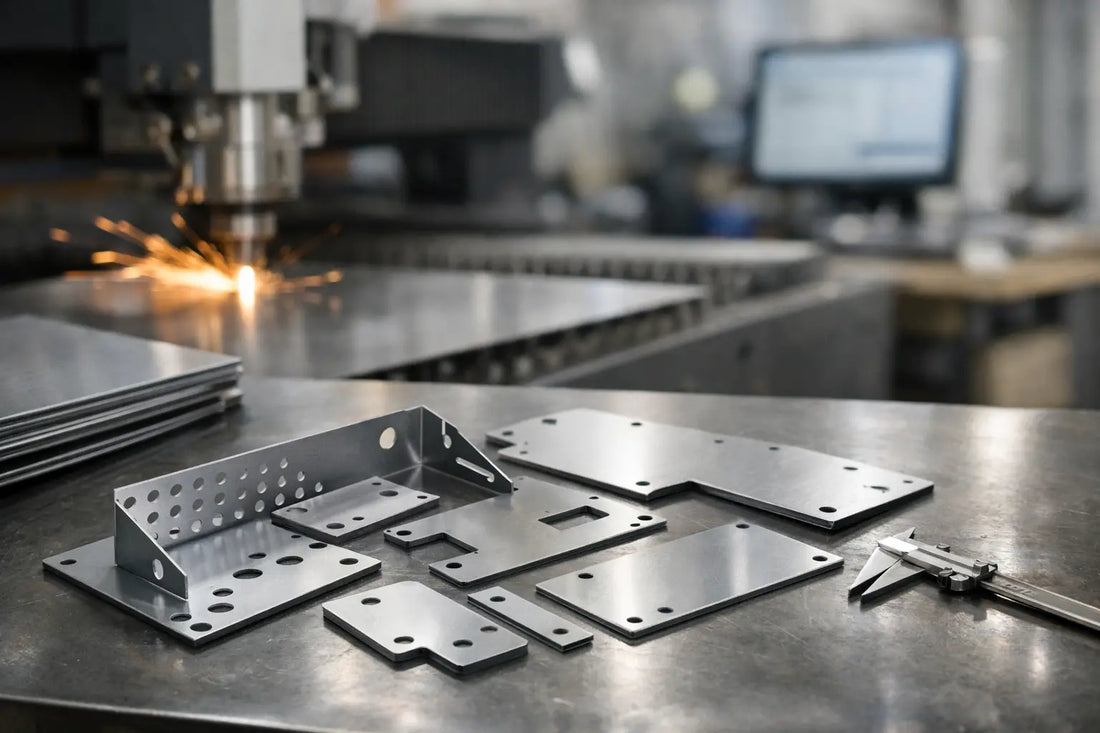

Precision Cut Sheet Metal for Faster Fabrication

A bracket that does not line up, a replacement panel that arrives a week late, or a production run held up for one simple profile can cost far more than the part itself. Precision cut sheet metal gives fabricators, engineers and makers a practical way to get the shapes they need without setting up tools, buying machinery or committing to an oversized order.

For a one-off repair, a prototype or repeat production, the job is usually straightforward: provide a usable drawing or specification, choose the material and thickness, then have the parts cut accurately for the next stage of fabrication. The detail in that process matters, particularly where holes, folds, mating parts or tight clearances are involved.

What Precision Cut Sheet Metal Means in Practice

Precision cutting is about producing a part that matches the intended drawing closely and consistently. For sheet metal work, fibre laser cutting is often the right method because it creates clean profiles, handles intricate geometry well and is efficient for both individual parts and larger batches.

A laser follows the geometry in a digital file, cutting outer profiles, internal holes, slots and cut-outs without a dedicated press tool. That makes it well suited to brackets, machine guards, base plates, flange plates, discs, rings, panels and replacement components. If the design changes, the file can be amended rather than starting again with new tooling.

Accuracy is not just a number on a quote. A part may be laser-cut very accurately but still cause trouble if the drawing does not account for the material thickness, a later bend operation, thread engagement or the clearance required for assembly. The best result comes from treating the cut part as one stage of the finished component, rather than an isolated shape on a screen.

Why Fibre Laser Cutting Suits Short Runs and Repeat Work

Traditional processes can make sense for high-volume, simple components, especially where tooling costs are spread across thousands of units. But they are less attractive when you need a few parts quickly, are still proving a design, or expect revisions between batches.

Fibre laser cutting has a low barrier to entry because there is no bespoke cutting tool to manufacture first. That is useful for maintenance teams replacing an obsolete part, product developers testing a new enclosure, and fabricators who need extra capacity during a busy period. One-off orders are viable, while repeat files can be used again when the next batch is required.

Lead time also matters. Keeping cutting work outside your own workshop avoids tying up staff, machine time and floor space. It can be a sensible choice even for businesses with fabrication capability, particularly when an urgent job would otherwise interrupt regular production.

There are limits. Laser cutting is not automatically the cheapest option for every large, straightforward order, and it does not replace forming, welding, machining, countersinking or finishing where those operations are needed. It is, however, a fast and dependable starting point for accurately profiled sheet parts.

Choosing the Right Material for the Job

Material choice affects strength, appearance, corrosion resistance, weldability and cost. It also affects what happens after the parts leave the cutter.

Mild steel is often the practical choice for general fabrication, structural brackets, frames, guards and painted components. It is widely used, economical and straightforward to weld. If the finished part will be exposed to moisture, plan for paint, powder coating, galvanising or another suitable protective finish.

Stainless steel suits applications where corrosion resistance, hygiene or a cleaner finished appearance is required. It is common in food equipment, architectural fittings, outdoor work and machinery used in demanding environments. Stainless can cost more than mild steel, so it is worth checking whether the application genuinely needs it rather than specifying it by default.

Aluminium is lightweight, corrosion-resistant and useful for panels, covers, transport applications and weight-sensitive assemblies. Its strength varies significantly by grade and thickness, so a thin aluminium plate is not simply a lighter substitute for steel. If rigidity is important, the design may need folded edges, ribs or a thicker section.

The required thickness should be based on the load, fixing method and overall part size. A large, thin panel can flex even when the laser-cut profile is accurate. Conversely, choosing a thicker material than necessary increases cost, weight and effort in later fabrication.

Preparing a File That Cuts Cleanly

A DXF file is usually the most efficient format for custom laser-cut parts. It allows the cutting geometry to be read directly and reduces the risk of dimensions being interpreted incorrectly. For customers without CAD access, a dimensioned drawing, photograph of an existing part, sketch or specification sheet can still be enough to begin a conversation for simpler work.

Before sending a drawing, check that all dimensions are in millimetres and that the geometry is shown at full scale. Where possible, make sure the file contains only the lines that need cutting. Duplicate lines, open profiles, overlapping entities and hidden construction geometry can create delays or require clarification.

Four checks prevent many avoidable problems:

• Confirm hole diameters and slot widths are practical for the selected material thickness.
• Allow enough clearance where bolts, pins, tabs or mating components need to fit together.
• Mark clearly which features are cut-outs and which details are only reference dimensions.
• State the material, thickness, quantity and any time-critical requirement with the enquiry.

Small features deserve particular attention. Very narrow slots, closely spaced holes and fine internal corners may be possible, but their suitability depends on the material and thickness. A sensible design adjustment can improve cut quality, reduce heat effects and make the component easier to use on the shop floor.

Design for the Next Operation, Not Just the Laser

Many sheet parts are cut before they are folded, welded, drilled, tapped, painted or assembled. Planning for those stages early saves rework later.

If a part will be folded, the flat pattern needs appropriate bend allowances and reliefs. Holes positioned too close to a bend can distort or become difficult to access. Tabs and slots used to locate welded assemblies are useful, but they need enough clearance to assemble without forcing the parts together.

For threaded fixings, consider whether a laser-cut hole will be tapped, fitted with a rivet nut, used with a captive nut or paired with a through-bolt. The right approach depends on the material thickness and load. A tapped hole in thin sheet may not provide enough thread engagement for a stressed component.

Surface finish should also be considered before cutting. If visible faces need to remain clean, tell the supplier. If a part is being painted or powder coated, allow for the finish thickness on closely fitting features. Where sharp edges are unsuitable for handling or assembly, plan for deburring, edge finishing or a revised profile.

From One-Off Part to Production Batch

The same precision cut sheet metal process can support a single prototype and a repeat order, but the buying decision changes as quantities rise. For a prototype, speed and flexibility are normally the priority. It may be worth paying slightly more per part to test fit, assembly and performance before committing to a larger quantity.

For production work, consistency becomes more important. Use a controlled drawing revision, agree the material specification, and keep a record of any agreed changes. Ordering a sensible batch can reduce unit costs through more efficient material use and machine setup, but there is little value in holding excess stock if the design is likely to change.

Standard shapes can be faster still. Discs, rings, plates and flange plates with straightforward dimensions are often ideal for instant ordering, especially when no bespoke profile is required. For custom work, an uploaded DXF gives the clearest route to an accurate quotation and repeatable parts.

NKD Services works with both routes: standard configurable components for quick purchasing and custom cutting for drawings, DXF files and bespoke specifications. That flexibility matters when a repair job needs one part now, while a successful prototype may need a batch next month.

Getting the Best Value From Your Order

The lowest part price is not always the lowest overall cost. A supplier that accepts small orders, responds clearly and delivers on the agreed lead time can save hours of workshop disruption. Equally, ordering a batch without checking the first part can be an expensive false economy.

Group compatible parts where possible, use common material thicknesses across an assembly and avoid unnecessarily complex geometry. These choices can help control cost without weakening the design. But do not remove useful locating features or reduce thickness purely to save pennies if the part will become harder to fabricate, assemble or maintain.

If you are unsure about a feature, send the drawing before finalising the design. A quick practical check on material, thickness, holes and intended use is often enough to prevent a part that looks right on screen from causing problems at the bench.

The strongest orders start with a clear purpose: what the part does, what it fixes to, what material environment it will face and when it is needed. Give the cutter that information alongside a clean drawing, and you are far more likely to receive parts that move straight into fabrication rather than back onto the drawing board.
