Laser Cutting for Fast, Accurate Metal Parts

A replacement bracket is rarely just a bracket when a machine is stopped waiting for it. The same applies to prototype panels, mounting plates, guards and production parts. Laser cutting gives UK buyers a fast, accurate way to turn a drawing into usable sheet metal without setting up tooling or committing to a large batch.

For engineers and fabricators, the value is simple: clean profiles, repeatable dimensions and a route from one-off part to repeat order. For customers without a fully prepared CAD file, the process can still be straightforward if the requirements are clear from the start.

What laser cutting is suited to

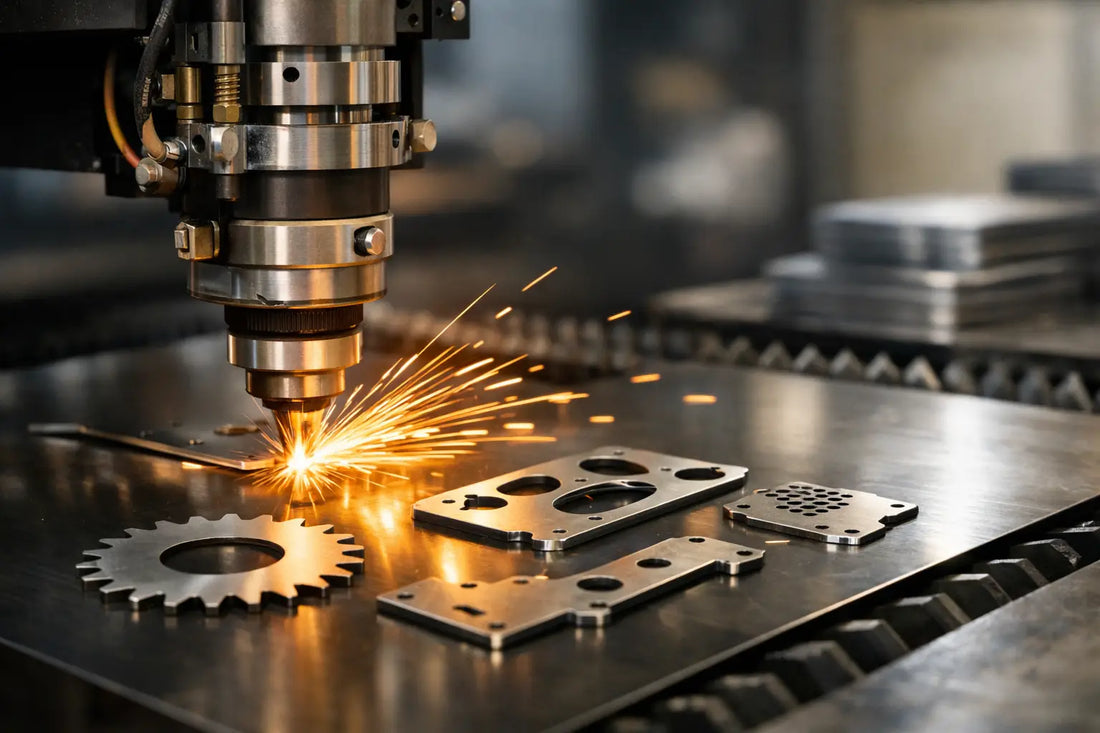

Fibre laser cutting uses a focused beam to melt through sheet metal along a programmed path. Assist gas clears the cut, leaving a precise profile that is ready for fabrication, assembly or finishing. It is particularly useful for flat parts with holes, slots, outside profiles, cut-outs and engraved or marked references where required.

Typical applications include machine brackets, electrical panels, base plates, gussets, covers, flange plates, discs, rings, repair parts and small production components. Because the programme is created from a drawing rather than a physical tool, design changes are quicker and more affordable than conventional tooling-led methods.

It is not the answer to every fabrication job. A laser cuts flat sheet, so folded sections, welded assemblies, turned parts and heavy machining need further processes. It also has practical limits around material thickness, very tight tolerances and features that are too small in relation to the sheet gauge. A good cutting supplier will flag these issues before production rather than sending parts that cannot be used.

Choosing the right material for laser cutting

Material choice affects cost, strength, corrosion resistance, appearance and how the part behaves in use. Starting with the job environment usually makes the decision easier.

Mild steel is a practical choice for general fabrication, structural brackets, frames and painted components. It is widely available, economical and well suited to welding. Bare mild steel will rust if left unprotected, so consider powder coating, paint, plating or another finish where the part will be exposed to moisture.

Stainless steel is often selected for food areas, external equipment, wash-down environments and applications where corrosion resistance matters. Grades and finishes vary, so it is worth stating whether a part needs to be brushed, polished, suitable for welding or used in a particularly harsh setting. Stainless costs more than mild steel, but it can reduce finishing and maintenance requirements.

Aluminium is lightweight, corrosion resistant and useful for enclosures, vehicle components, guards and equipment where weight matters. It is softer than steel and can mark more easily during handling. If appearance is important, specify whether the visible face needs protecting or whether minor handling marks are acceptable.

The cheapest sheet is not always the lowest-cost finished part. A heavier material might remove the need for stiffening folds, while stainless may avoid a separate coating operation. Equally, specifying a premium material for a simple indoor bracket can add cost with no practical benefit.

Thickness, features and tolerances

Sheet thickness should be chosen around the load on the part, its span, the fixing method and any later fabrication. A thin panel may be adequate for a cover but unsuitable for a mounting plate that carries vibration or weight. If a part is being welded, folded or threaded after cutting, these details should be considered before finalising the gauge.

Small holes and narrow slots need sensible proportions. As a working rule, avoid making features significantly smaller than the material thickness unless they have been checked with the cutter. A tiny hole in thick sheet can be difficult to produce consistently and may need drilling afterwards. Closely spaced cuts can also put heat into a small area, which may affect flatness on light-gauge material.

Standard laser-cut tolerances are suitable for most brackets, panels and fabricated components. Where a hole locates a bearing, dowel, shaft or another precision item, say so clearly. That feature may need a tighter cutting strategy, a smaller pilot hole followed by machining, or a revised fit. Calling out every dimension as highly critical can slow the job and increase cost, so identify the dimensions that genuinely control function.

Flatness deserves the same attention. Heat from cutting is localised, but thin sheet, narrow strips and parts with large amounts of internal cutting can move slightly. If flatness is essential, especially for sealing faces or accurate assemblies, include that requirement in the enquiry. The best answer may be a material change, a design adjustment or a secondary operation.

Preparing a drawing that cuts cleanly

A DXF file is normally the quickest route to a quotation and production. It gives the cutter the geometry needed to programme the machine and reduces the risk of dimensions being read incorrectly from a PDF. The file should be drawn at full size in millimetres, with a clear 1:1 scale.

Before sending it, check that the drawing contains only the lines that should be cut. Duplicate lines, open profiles, overlapping entities and stray marks can create delays or unexpected cutting paths. Keep outside profiles and internal holes clearly defined, and ensure circles are actual circles rather than a collection of short segments where possible.

If the part needs extra information, add a PDF drawing or specification alongside the DXF. This is the place for material, thickness, quantity, finish, deburring requirements, countersinks, tapped holes, bend notes and critical dimensions. A DXF describes shape well, but it does not explain every manufacturing instruction.

Not every job starts with CAD. A clear paper sketch, photo of an existing part, marked-up measurement sheet or sample can be enough to begin a conversation for a straightforward item. Include as many dimensions as possible, show hole centres from consistent edges, state the material and thickness if known, and make clear which side is the front. For a replacement part, photographs beside a rule can help, but they should support measured dimensions rather than replace them.

Designing parts to reduce cost and lead time

The quickest jobs tend to be the ones with clear requirements and designs that suit the process. Using common sheet thicknesses can improve material availability. Keeping a reasonable distance between holes and edges reduces distortion risk. Standard hole sizes can also make later assembly easier, particularly where bolts, rivnuts or self-clinching fixings are involved.

Avoid unnecessary complexity where it does not improve the part. Decorative internal cut-outs, many tiny apertures and excessive engraving all add machine time. That does not mean they cannot be done, only that they should earn their place in the design. On production runs, seconds per component quickly become a cost consideration.

Part nesting also matters. Several small pieces cut from the same material can often be more economical than ordering them separately, especially when they share thickness and finish. If you need left- and right-hand versions, or a set of related brackets, send the full requirement together. It gives the supplier a better view of the job and can avoid repeat set-up work.

For standard shapes, buying a ready-configured disc, ring, plate or flange plate can be faster than drawing a simple part from scratch. For bespoke profiles, an uploaded DXF and a short specification provide the clearest route to a quote.

From quote to usable parts

A useful enquiry states the material, thickness, quantity and required date at the outset. Add whether the parts are for a prototype, repair or repeat production, as this can affect the best approach. One-off orders are worthwhile, but a part intended for regular use may benefit from a quick design review before the first batch is cut.

Ask about edge condition if it matters. Laser-cut edges are generally clean, but some applications need deburring for safe handling, painting or close-contact assembly. Visible stainless and aluminium parts may also need careful handling to protect the finish. If a part will be welded, coated or assembled with other components, mention this so the material and finish are suitable for the next stage.

Lead time depends on material availability, drawing readiness, part complexity and current workload. Urgent work is easier to turn around when the specification is complete and the file is production-ready. A fast quote is useful, but accurate information at the start is what prevents a fast job becoming a delayed one.

NKD Services works with one-off parts as well as repeat quantities, so there is no need to wait until a small requirement becomes a large order. Whether it is a single replacement plate or a batch of production brackets, the practical next step is the same: send a clear drawing, state what the part needs to do, and let the cutting process do the time-consuming work.
