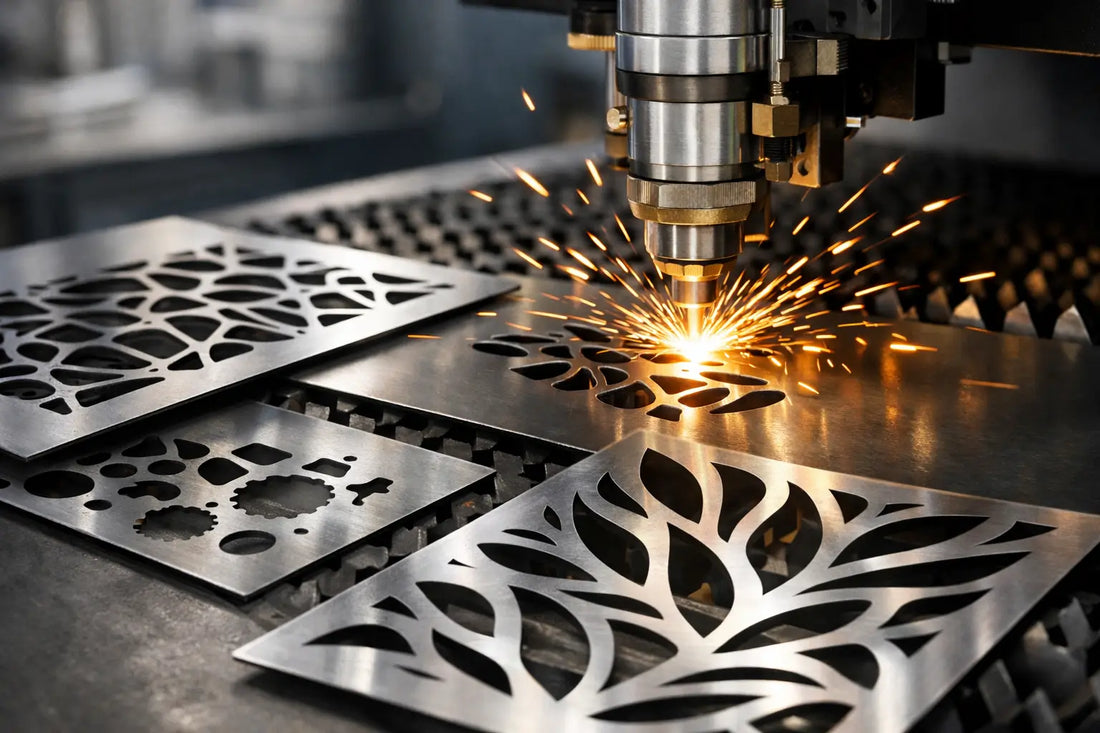

A panel that is a few millimetres out can hold up an enclosure build, leave a bracket line misaligned or turn a simple replacement job into a site visit. Laser cut metal panels avoid that problem by producing accurate profiles, cut-outs and hole patterns directly from a drawing, without the cost and delay of making dedicated tooling.
For fabricators, engineers and maintenance teams, the value is straightforward: order the shape you need in the material you need, whether that is one replacement cover or a repeat batch for production. The result still depends on good design choices, suitable material and a clear specification.
Where laser cut metal panels make sense
Metal panels appear in far more jobs than a flat rectangle might suggest. They are used as machine guards, electrical enclosure faces, access covers, mounting plates, control panels, vehicle fittings, architectural screens and protective covers. A laser can cut the outside profile as well as internal slots, holes, vents, tabs and lettering in the same operation.
This is especially useful where a panel has several features that would otherwise need marking out, drilling, punching and trimming. Cutting from a CAD file improves repeatability between parts and gives fabricators a reliable starting point for folding, welding, painting or assembly.
Laser cutting is not always the complete manufacturing process. If a panel needs bends, countersinks, threaded holes, weld studs or a finished coating, these operations need to be planned separately. Getting the flat pattern right before the material is cut saves time later and reduces the risk of costly rework.
Choosing the right material for the job
Material selection should start with the working environment, not simply the lowest sheet price. Mild steel is a sensible, economical choice for indoor machinery parts, brackets and panels that will be painted, powder coated or otherwise protected. It is widely used, easy to fabricate and suitable for many general engineering jobs.
Stainless steel is the better fit where corrosion resistance, wash-down conditions or a clean finished appearance matter. Food-processing equipment, external fittings and chemical or marine-adjacent applications often call for stainless, although the exact grade should suit the environment. A stainless panel is not automatically maintenance-free - surface finish, contamination and exposure conditions still matter.
Aluminium is light, naturally corrosion resistant and useful where weight is a concern. It is common in transport, covers, electronics and display work. It is softer than steel, however, so large unsupported panels can flex more easily. If stiffness matters, consider a thicker gauge, return folds or additional support points rather than assuming a thin aluminium sheet will behave like steel.
Thickness is equally practical. Thin sheet can be ideal for covers and enclosure skins, but may distort when welded or feel flimsy over a wide opening. Thicker plate offers strength and rigidity but adds weight, material cost and potential folding limitations. The best choice is the thinnest material that meets the loading, fixing and finish requirements of the part.
Design laser cut metal panels for production
A clean drawing gives a cutting supplier the clearest route to a fast quote and accurate part. DXF is normally the most useful format for flat laser-cut profiles because it contains the geometry at full scale. Keep the drawing to one-to-one dimensions and make sure all features are shown in the correct position.
Before sending the file, check that circles are truly circular, duplicate lines have been removed and dimensions match the required finished flat part. Open profiles, overlapping entities and stray construction lines can cause delays or create uncertainty over what should be cut. If you are working from a PDF, sketch, photograph or specification sheet, it can still be enough for a simple enquiry, but clear dimensions and tolerances are essential.
Holes, slots and narrow details
Very small holes and narrow slots need proportionate material thickness to cut cleanly. As a rule, features that are extremely narrow compared with the sheet thickness can be difficult to produce consistently and may not suit the application once the part is handled or finished.
Avoid placing holes too close to an outside edge. The remaining strip of material can be weak, and heat from cutting may affect a narrow section. If a hole is for a bolt, allow sensible clearance for the fastener, coating thickness and assembly tolerance. A tight nominal hole may look correct on screen but become awkward on the shop floor.
Sharp internal corners should also be considered carefully. Laser cutting can create a tight internal radius, but a small radius is generally preferable where the panel will be folded or where stress could concentrate around a cut-out. For enclosure windows, cable entries and access openings, rounded corners also make the finished part easier to handle.
Bends change the flat pattern
A folded panel cannot be drawn as a finished 3D shape and then flattened by eye. Bend allowance, material thickness, inside radius and tooling all affect the developed size. Hole positions near bends also need clearance so they do not distort during forming.
If folding is required after cutting, provide the flat pattern from the fabricator's agreed bend data or ask for guidance before finalising the drawing. This is one area where a quick conversation can prevent a full batch of parts being cut to the wrong developed length.
Tolerances should match the function
Not every dimension needs a very tight tolerance. Applying close tolerances across an entire panel can add inspection time and cost without improving the finished assembly. Reserve critical tolerances for features that locate parts, align shafts, accept dowels or fit with another precision component.
For a basic cover plate, overall dimensions and ordinary fixing holes may only need standard cutting accuracy. For a machine interface plate with several locating features, clearly identify the dimensions that control fit. This helps the supplier focus on what genuinely matters.
Information that speeds up a quote
A cutting quote is quicker and more accurate when the supplier does not have to guess. Alongside the file or drawing, state the material, grade where relevant, thickness, quantity and whether the part is required as cut only or has further processing requirements. Include the deadline if there is one, but allow time for any folding, finishing or delivery stage outside the cutting operation.
For repeat work, use a clear part number and keep a revision record. A small change to a hole size or slot position can create problems if an old drawing is ordered by mistake. It is good practice to put the revision on the drawing itself and confirm that the latest file is being used before a production run begins.
A practical specification normally covers these points:
- material and thickness, including grade where needed;
- quantity and part number;
- drawing revision and file format;
- critical dimensions, tolerances and any deburring requirement;
- secondary work such as folding, tapping, welding or coating.
Cost is driven by more than panel size
The amount of material in a panel affects cost, but it is not the only factor. A large plain rectangle can be quick to cut, while a smaller part with dozens of holes, tight slots and decorative detail may require more machine time. Material type, sheet thickness, quantity and how efficiently parts nest on a sheet also influence the price.
Quantity changes the calculation. A one-off panel is often worthwhile when it replaces a damaged component or proves a prototype, but a repeat batch can reduce the cost per part through shared set-up and better material usage. It depends on whether the design is stable. Ordering a large quantity before testing fit can be a false economy.
For prototypes, consider ordering one or two parts first, particularly where the panel interfaces with bought-in components, seals, hinges or folded sections. Test the assembly, record any changes, then release the final revision for a larger order. That approach is often faster than correcting a batch after it arrives.
From drawing to usable part
The best laser-cut panel is designed around its real job. Think about how it will be fixed, whether an operator will handle its edges, where cables and components sit behind it, and what happens after cutting. A well-positioned return fold can add stiffness. A slightly larger slot can make assembly easier. A clear revision mark can prevent the wrong part reaching the bench.
NKD Services supports one-off and batch laser-cut work in mild steel, stainless steel and aluminium, helping customers move from a simple profile to production-ready parts without unnecessary minimum-order barriers. Whether you have a finished DXF or only a clearly dimensioned drawing, put the practical details on the page first. That is how a flat sheet becomes a panel that fits first time.
