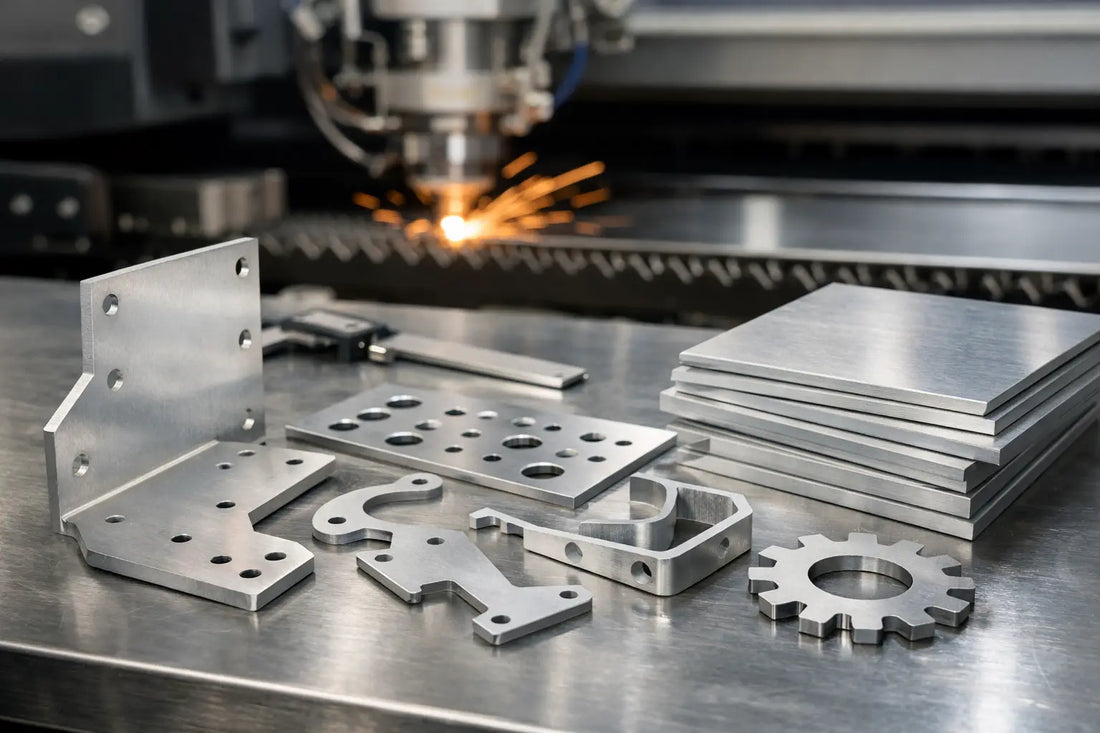

Custom Aluminium Sheet Parts, Cut for Your Job

A replacement cover plate should not require a large production order. Nor should a prototype bracket be held up because it is only one part. Custom aluminium sheet parts give engineers, fabricators, maintenance teams and makers a practical route to components made for the job at hand - from simple blanks and panels to detailed profiles with holes, slots and cut-outs.

Aluminium is often chosen because it is light, corrosion resistant and easy to handle. It can be a sensible alternative to steel where weight matters, where the finished part will be used outdoors, or where a clean non-rusting appearance is required. The right result, however, depends on more than sending over a drawing. Material grade, thickness, feature spacing and the intended use all affect how well the part performs and how economically it can be produced.

When custom aluminium sheet parts make sense

Off-the-shelf stock has its place. Standard discs, rings, plates and flange plates are a quick answer when the dimensions suit your requirement. But a custom-cut part becomes the better option when a standard shape needs mounting holes, cable entries, clearance slots, a specific outside profile or a non-standard size.

Typical applications include machine guards, enclosure panels, mounting plates, brackets, covers, signage blanks, spacers, vehicle fittings and replacement parts. For production buyers, the same approach works for repeat components that need to arrive consistently from batch to batch. For a one-off repair, it means you can replace the failed part rather than altering the rest of an assembly to suit available stock.

Laser cutting is particularly useful where the profile contains several features. A part with internal holes, slots and a shaped perimeter can be cut from one flat sheet without the time spent marking out, drilling and sawing each detail by hand. That reduces handling and helps keep repeated parts consistent.

Choose the aluminium around the job

There is no single aluminium grade that is best for every application. The correct choice depends on whether the priority is forming, corrosion resistance, strength, appearance or machining after cutting.

1050 aluminium for straightforward formed work

1050 is a relatively soft, high-purity aluminium commonly selected where good formability and corrosion resistance are useful. It is often suitable for simple covers, decorative work, light-duty panels and parts that may need bending after cutting. Its lower strength means it is not normally the first choice for a highly loaded bracket or structural component.

5754 aluminium for tougher sheet applications

5754 offers better strength than 1050 while retaining good corrosion resistance. It is a practical material for many general fabrication jobs, especially where the part may see moisture, outdoor exposure or regular use. If you need a fabricated panel or bracket that has to work harder than a light cover, 5754 is often worth considering.

6082 aluminium where strength matters

6082 is a stronger engineering-grade aluminium. It can be a sensible choice for components that need more rigidity or load-bearing capability, provided the design and any follow-on fabrication suit the material. It is less forgiving for tight forming than softer grades, so a design involving sharp bends needs checking before material is specified.

If you are unsure which grade fits the job, start with the part's actual duty. Ask whether it carries load, whether it will be bent, whether it will be exposed to weather, and whether weight is critical. A lower-cost material that bends easily may be the right call for a cover, while a stronger grade may prevent a mounting plate flexing in service.

Thickness affects more than strength

Sheet thickness is one of the first details a cutting supplier will need. It affects stiffness, weight, material cost and the smallest practical features within a design. Going thicker may stop a panel vibrating or a bracket distorting, but it also adds weight and can make bends harder to form. Going thinner saves material but may leave a part too flexible for the application.

It is worth designing around the load path rather than simply choosing the thickest sheet available. A folded return, rib, gusset or revised fixing position can add stiffness without increasing the whole part thickness. Where the part must remain flat, thickness may be the straightforward answer, but it should be a considered decision rather than a default.

Small holes and narrow slots also need sensible proportions in relation to sheet thickness. Very tight features can be difficult to cut cleanly, particularly in thicker material. If a slot only exists to provide clearance, giving it a little more width can improve manufacturability without affecting function. The same is true of tight inside corners. A small radius is usually more practical than a sharp internal corner.

Get the drawing right before cutting starts

A clean DXF file is the quickest route from design to quotation and production. It should contain the final cut geometry at full scale, ideally with all lines, arcs and circles closed and without duplicate entities. Dimensions should be clear, and the file should be drawn in millimetres unless another unit has been agreed.

For a laser-cut profile, include all cut-through features in the same drawing: outside edge, holes, slots and internal openings. Mark any important notes separately, such as material grade, thickness, quantity, required finish, bend details or tapping requirements. Laser cutting produces the flat pattern. If the part needs folding, countersinking, threads, welding or coating, those operations should be identified at the enquiry stage.

Not every job begins as CAD. A paper sketch, photo of an existing part, marked-up drawing or specification sheet can be enough for a simple replacement or basic profile. Include reliable measurements, hole centres, overall dimensions and thickness where possible. A photograph alongside a ruler is useful for context, but it should not be the only source of critical dimensions.

Tolerances need a purpose

Every drawing does not need ultra-tight tolerances. Over-specifying them can add cost or lead to unnecessary questions, while under-specifying a key dimension can cause assembly problems. Apply tighter tolerances where parts locate on pins, fit around shafts or align with a mating component. For clearance holes, guards and general panels, standard cutting tolerances may be entirely suitable.

Also consider the cut edge. Fibre laser cutting gives an accurate, clean profile, but the edge is still a cut metal edge. If a component will be handled frequently, used in a visible finished product or prepared for coating, discuss whether deburring or further finishing is required.

Design for cutting, bending and assembly

Good sheet parts are designed with the next operation in mind. A mounting hole placed too close to an edge can weaken it. A cut-out too near a bend line can distort during forming. A tight corner in a folded tray may need relief features so the material has somewhere to move.

Keep hole sizes, slot widths and corner radii consistent where the function allows. This makes drawings easier to check and can reduce the chance of mistakes during assembly. If the part will be bolted to another component, confirm the fastener size and leave appropriate clearance. If threads are required, check whether the material thickness is sufficient for tapping or whether a captive nut, stud or threaded insert would be the better option.

Nesting can also influence cost on repeat orders. Several small parts that share a sheet may be more economical than ordering each profile separately. That does not mean cramming parts together without thought - leave enough material between features and allow for practical handling - but it is worth discussing when quantities increase.

From one-off part to repeat batch

The process should be straightforward: provide the drawing or part information, confirm material, thickness and quantity, then review the quotation before production. For standard geometry, an instant-buy option can be the faster route. For bespoke profiles, a quote ensures the material and cutting requirements match the drawing.

One-off orders are useful for proving a design, testing fitment or solving an urgent maintenance issue. Do not treat a prototype as disposable, though. Check it against the assembly before committing to a larger batch. Confirm hole positions, access for tools, bend direction, cable clearance and whether the material feels suitably rigid in use.

Once a part is proven, keep the approved drawing under a clear revision number. This avoids the common problem of an old file being re-ordered months later. For recurring work, consistent material specification and a stable file make future orders quicker to place and easier to check.

NKD Services supports this practical approach, from straightforward single parts through to repeat laser-cut production work. The aim is not to make a small job feel like a complicated procurement exercise, but to get the required part moving with the right information in place.

The best starting point is a drawing that explains what the part must do, not just what shape it is. Once the material, thickness and critical dimensions are clear, custom aluminium sheet parts become a simple, dependable way to turn an idea, repair or production requirement into something ready to fit.
