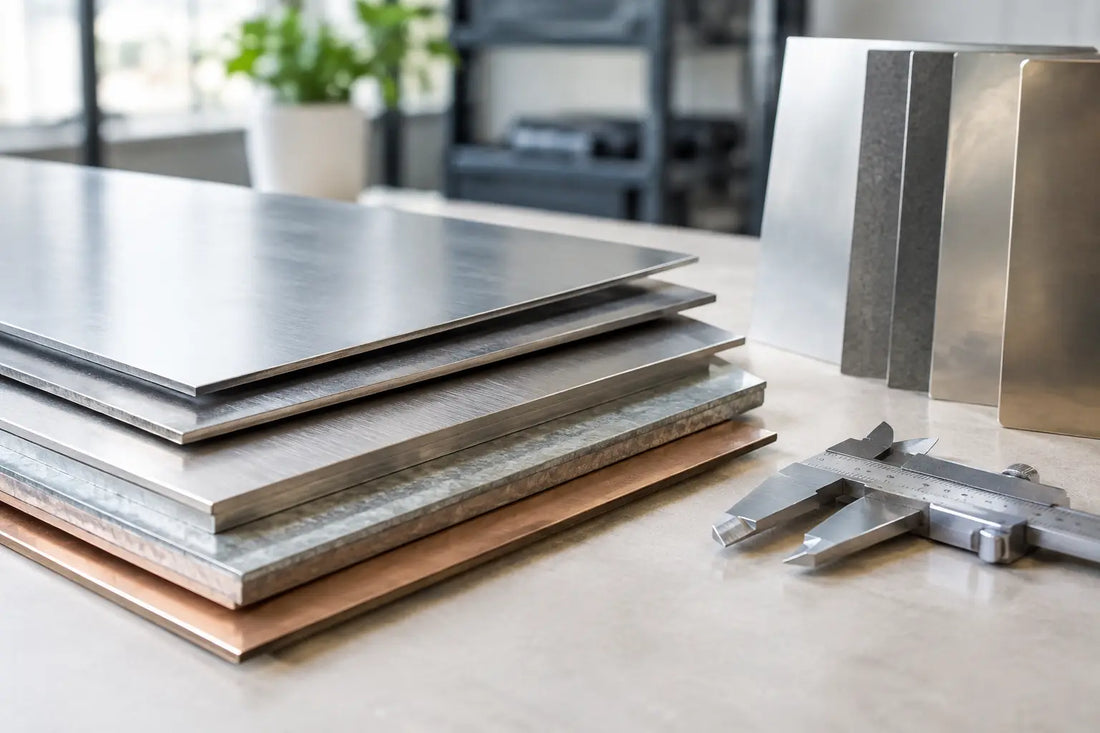

Choosing Sheet Metal Grade and Thickness

A replacement bracket is no use if the holes are out of position, the material is too thin, or the part arrives after the machine is back in service. Choosing sheet metal is not just a matter of picking a metal and a gauge. The grade, thickness, profile and finish all affect how a part performs, what it costs and how quickly it can be made.

For a simple disc or mounting plate, the decision may be straightforward. For guards, panels, machine brackets, covers and repeat production components, a little thought at the drawing stage can prevent wasted material, rework and delays. This guide covers the practical choices that matter when ordering laser-cut parts in the UK.

Start with what the part needs to do

The best material is usually the one that meets the working requirement without adding unnecessary cost or weight. Start with the environment, the load on the part and how it will be assembled.

A bracket supporting a motor, for example, needs suitable stiffness around its fixing holes and any bends. A decorative panel for outdoor use needs corrosion resistance. A lightweight enclosure may favour aluminium, while a hard-wearing workshop fixture may be better in mild steel.

It also helps to separate the cutting requirement from the finished assembly requirement. Fibre laser cutting produces accurate flat profiles, slots and holes. If the part needs folding, welding, tapping, powder coating or painting afterwards, allow for those operations when choosing the material and designing the profile.

Mild steel for everyday fabricated parts

Mild steel is a practical choice for many brackets, base plates, flanges, machine parts and general fabrication jobs. It is strong, widely used and normally the most cost-effective option where corrosion resistance is not the main concern.

It can be welded, drilled, tapped and painted after cutting. That makes it a solid all-round material for indoor machinery, fixtures, workbenches and structural components. If the part will be exposed to damp conditions, it will need an appropriate protective finish, such as paint, powder coating or zinc treatment.

Mild steel is often the sensible starting point when price matters, but do not choose it by default for wet, food-processing or external applications. Surface rust can become a maintenance issue quickly.

Stainless steel where corrosion matters

Stainless steel is commonly used for food equipment, external fittings, hygienic areas, marine-adjacent work and parts that need a clean, durable appearance. It costs more than mild steel, but its corrosion resistance can make it better value over the life of the component.

Grade selection depends on the job. For many general uses, 304 stainless is suitable. More aggressive environments may require 316, particularly where salt, chemicals or regular outdoor exposure are involved. The right choice depends on the actual conditions, not just the fact that a part will be used outside.

Stainless is not maintenance-free in every situation. Fabrication marks, contamination from other metals and trapped moisture can affect appearance and performance. Consider how the part will be cleaned, joined and finished once cut.

Aluminium when weight is the priority

Aluminium is useful for enclosures, vehicle components, covers, lightweight frames and parts where handling weight matters. It has good natural corrosion resistance and is considerably lighter than steel.

The trade-off is stiffness. An aluminium panel may need to be thicker than a steel alternative to achieve similar rigidity. It can also mark more easily during handling, so visible parts may need careful packaging or a specified finish. If a design was originally drawn for steel, do not simply swap in aluminium without reviewing the thickness and load path.

How to choose the right sheet metal thickness

Thickness is one of the quickest ways to control part strength and price. Thicker material generally gives greater stiffness and durability, but it also adds weight, material cost and cutting time. It can affect whether a part can be folded economically later on.

Use millimetres on drawings rather than relying on gauge references. Gauge systems vary by material and can cause confusion between suppliers. A clear callout such as 3 mm mild steel or 2 mm stainless steel leaves less room for error.

For light covers, small brackets and interior panels, thinner sheet can be suitable. For mounting plates, machine guards and parts with repeated loading, extra thickness may be worthwhile. The correct figure depends on span, fixing points, load direction and whether the part has folds or returns to add stiffness.

A large flat panel can flex even when made from relatively thick metal. Often, a folded edge, rib, return flange or additional fixing point is more effective than simply increasing the sheet thickness. Good design can reduce weight and material use without compromising the job.

Design profiles that are easy to cut and use

Laser cutting is highly flexible, but a clean drawing still matters. The cutter follows the geometry supplied, so dimensions, hole positions and cut-outs should reflect the actual assembly requirement.

Keep holes an appropriate size for the sheet thickness and the fasteners being used. Very small holes in thick material can be difficult or uneconomical, while oversized holes may create unwanted movement in an assembled part. If a hole will be tapped later, specify the correct tapping drill size rather than the finished thread size.

Leave enough material between holes, slots and outside edges. Narrow sections can distort under load or become vulnerable during welding and finishing. Sharp internal corners can also concentrate stress, particularly in parts that will be bent or repeatedly loaded. Adding a small radius where practical usually produces a stronger, more forgiving component.

If the part will be folded after cutting, include bend reliefs where needed and keep holes away from bend lines. A drawing can look correct when flat but still clash with tooling or distort once formed. If bend dimensions are critical, the flat pattern must account for bend allowance and the intended inside radius.

Tolerances: specify what actually matters

Not every dimension needs the tightest tolerance available. Calling for unnecessary precision can add cost and slow down production, particularly if the part will later be welded, folded or painted.

Identify the dimensions that control fit: bearing locations, mounting-hole centres, slots for adjustment, mating edges and datum faces. These deserve clear tolerances. Less critical external edges can usually work to general cutting tolerances.

Remember that the cut edge is only one part of the final result. A welded assembly may move slightly with heat. Powder coating adds thickness. Folded parts have normal variation from tooling and material behaviour. Specify the tolerance that the finished part genuinely needs, and consider the whole route from flat sheet to final assembly.

Send a drawing that gets the job moving

A DXF file is normally the clearest route for a laser-cut profile. It gives the cutter usable geometry and reduces the risk of dimensions being interpreted manually. Before sending it, check that the drawing is at full size, uses millimetres and contains only the final cutting profile.

Remove duplicate lines, construction geometry, title blocks and dimensions that are not meant to be cut. Closed shapes should be properly joined, and holes should be shown as complete circles or closed profiles. Where there are several parts, clearly identify the quantity required for each.

Not every job starts with a CAD file. For a straightforward plate, disc, ring or replacement component, a clear sketch, photo with measurements or specification sheet can be enough to begin a conversation. Include material, thickness, quantity and any essential dimensions. A few minutes spent making the requirement clear can save days of back-and-forth.

One-offs and batches need different thinking

A one-off part should be designed for speed and function. Standard sizes, simple profiles and readily available materials usually keep the job affordable. If you only need a round disc, rectangular plate or flange plate, using a standard geometry can be quicker than creating a fully bespoke drawing.

For repeat work, invest more time in the first drawing. Consistent hole sizes, shared material thicknesses and sensible nesting-friendly shapes can reduce future ordering effort. A part that is easy to cut, pack and identify is easier to reorder and less likely to cause assembly mistakes.

Batch size also affects the best purchasing decision. A prototype may justify a slightly higher unit cost because it proves the fit before production. Once the design is confirmed, larger quantities can make material use and machine time more efficient. There is no universal break point, so it is worth comparing the requirement rather than assuming that a small run is not viable.

Get the practical details right before ordering

Before placing an order, confirm the material grade, thickness, quantity, finish requirement and any time-critical deadline. Check whether burr direction matters, whether visible faces need protection, and whether parts need to be marked for assembly. These details are easy to overlook on a basic drawing but can matter a great deal on site.

NKD Services cuts custom profiles in mild steel, stainless steel and aluminium for one-off jobs through to repeat production orders. The most useful enquiry is usually the clearest one: send the drawing where available, state the material and thickness, and explain anything the part must fit or withstand.

The right sheet metal part is rarely the most complicated one. It is the part that fits first time, suits the environment, uses material sensibly and can be made again when you need it.
