Can Laser Cutters Cut Stainless Steel Properly?

A stainless bracket with six holes, a neat radius and a clean visible face can be cut in minutes - provided the material, thickness and drawing are right. So, can laser cutters cut stainless? Yes. Modern fibre laser cutters are well suited to stainless steel and produce accurate, repeatable parts for one-off jobs and production batches alike.

The useful question is not whether stainless can be laser cut, but what finish, tolerance and edge condition your part needs. Those details determine the best material grade, cutting setup and whether any secondary finishing is sensible.

Can laser cutters cut stainless steel cleanly?

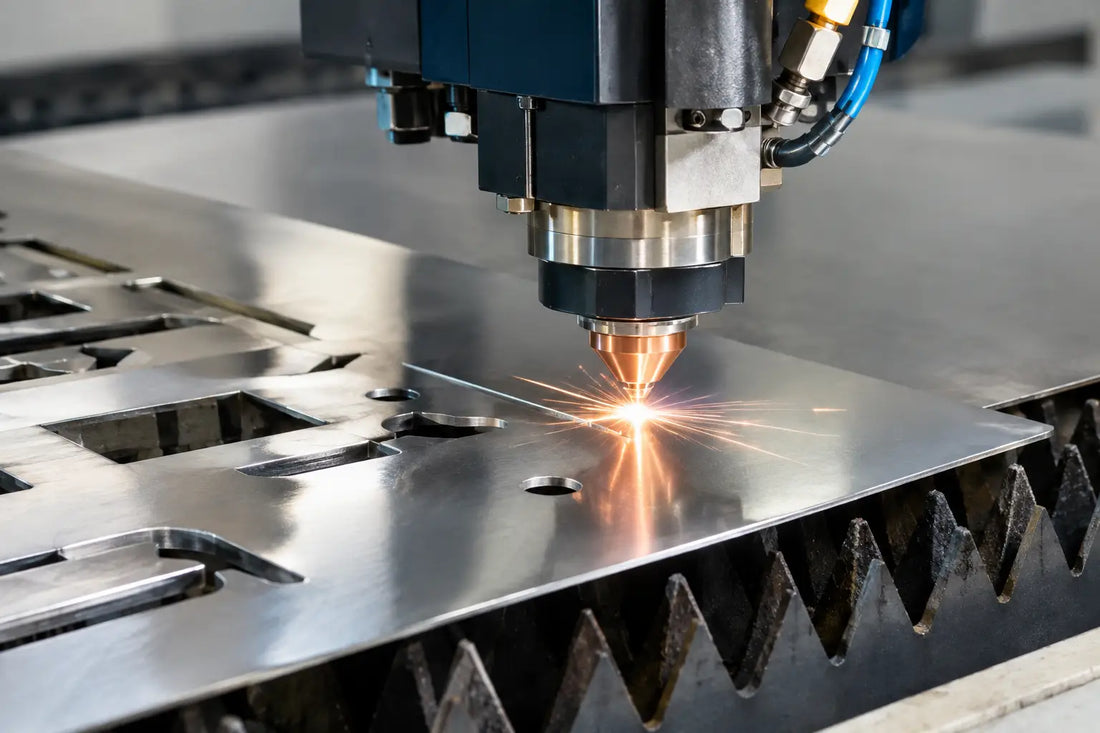

Fibre lasers cut stainless steel by concentrating a high-powered beam onto a very small area. The metal melts and an assist gas clears the cut path, leaving a narrow kerf and a precise profile. This makes laser cutting a practical option for brackets, panels, machine guards, flanges, shims, discs, covers, tags and many other flat components.

For most fabricated parts, the result is clean enough to use straight from the machine. Hole positions, slots and outside profiles can be cut accurately from a DXF drawing, with no need to make dedicated tooling. That is a major advantage when you need a prototype, a replacement part or a small batch without the cost and delay of press tooling.

Stainless also responds well to fibre laser cutting because the process is fast and controlled. Compared with older cutting methods, a fibre laser gives a fine cut width and a smaller heat-affected area. Parts are less likely to distort than with slower, hotter processes, although no thermal cutting method removes heat completely.

The grade and thickness make a difference

Most general fabrication work uses 304 stainless steel. It is widely available, corrosion resistant and suitable for indoor equipment, food-area fixtures, architectural details and general-purpose fabricated parts. Grade 316 offers improved corrosion resistance, particularly where parts will see saltwater, coastal air, chemicals or demanding washdown conditions.

Both grades can be laser cut effectively. The main differences for the buyer are normally cost, availability and the environment the finished part will work in. If a component only needs to resist everyday moisture, 304 is often the sensible choice. If it is going on a boat, near the sea or into an aggressive chemical environment, 316 may justify the extra material cost.

Thickness has a more immediate effect on cutting speed and edge finish. Thin stainless sheet cuts quickly and is ideal for detailed profiles, small brackets and panels. As thickness increases, the machine needs more energy and the cut becomes slower. The lower edge can also show more cut lines or light burr than a thin-sheet part.

That does not mean thicker stainless is unsuitable. It simply means the specification needs to be realistic. A thick plate flange with ordinary clearance holes has different requirements from a thin visible panel with intricate lettering. Tell the cutter what the part is for, especially if the edge will be on show, welded, painted, powder coated or used as a sealing face.

What does a laser-cut stainless edge look like?

A good laser-cut edge is square, narrow and consistent. On thinner material, it will usually need little more than a quick handling check before assembly. On heavier gauges, you may see fine vertical striations and a small amount of burr on the underside. This is normal, and it is often removed quickly with deburring equipment or by hand if the part needs a softened edge.

The top surface around the cut should be tidy, but stainless can pick up marking if it is moved across dirty benches or handled with steel-contaminated tools after cutting. If appearance or corrosion performance matters, keep stainless separate from ordinary mild-steel fabrication work and specify any protective film requirements before production.

Why nitrogen is usually preferred for stainless

The assist gas has a direct effect on cut quality. Nitrogen is commonly used for stainless steel because it shields the molten edge from oxygen during cutting. The result is a bright, cleaner edge with minimal oxidation, which is useful if parts will be left bare or welded afterwards.

Oxygen can increase cutting speed in certain applications, but it creates an oxidised edge. That may be acceptable for parts that will be painted, processed further or where appearance is not critical. It is less suitable where you want the fresh silver edge normally associated with laser-cut stainless.

For commercial work, this is a practical cost-versus-finish decision. Nitrogen-assisted cutting is often the right route for exposed stainless components, but it can cost more than an oxidised cut. A reliable supplier should match the process to the part rather than charge for a premium finish that the job does not need.

Design stainless parts for laser cutting

A well-designed drawing reduces cost, improves consistency and helps your parts arrive ready to use. Start with the material thickness and make sure the drawing is drawn at true size in millimetres. A clean DXF file is the quickest route to quotation and manufacture, although clear sketches, photos and marked-up drawings can be enough for straightforward work.

Avoid features that are too small for the sheet thickness. Very narrow slots, tiny holes and sharp internal corners are possible in some cases, but they can affect cut quality and lead time. As a rule, holes close to or below the material thickness need checking, particularly in thicker plate. If a hole is critical for a bolt, bearing or pin, state the required finished size rather than assuming every cut hole will behave like a drilled one.

Leave sensible spacing between holes, slots and the outer edge. Features placed too close together concentrate heat and can make narrow sections less stable. This matters most with thin sheet, detailed patterns and long slender parts.

Laser cutting also leaves a small internal radius at every inside corner because the beam has width. For most brackets and plates this is irrelevant. If you need a perfectly sharp square inside corner for a tab, folded return or mating component, allow a small corner relief in the drawing. It is a simple detail that prevents fitting problems later.

Tolerances and fit-up

Laser cutting is highly accurate, but tolerances should suit the function of the part. General fabricated components do not need the same tolerance strategy as precision location plates. Clearance holes should allow for fasteners and coating thickness. Interlocking tabs should have enough clearance to assemble without forcing, especially if the parts will be powder coated.

If a dimension is genuinely critical, identify it clearly on the drawing or quote request. That lets the cutting team check material thickness variation, kerf allowance and the most appropriate process before the job is made. It is far cheaper to resolve a tight-fit issue on screen than after a batch has been cut.

When laser cutting is the right choice

Laser cutting is particularly cost-effective when the part is flat, the profile is repeatable and you need flexibility. There is no separate die to manufacture, so one-off stainless parts are viable, and design changes can be made quickly between batches. It also suits nested production runs where multiple different parts are cut from the same sheet.

It may not be the best answer for every job. Very thick material, parts requiring a machined surface finish, deep countersinks, tapped threads or formed three-dimensional shapes need additional processes. Laser cutting can produce the blank accurately, then drilling, tapping, folding, machining or welding completes the component.

For a simple stainless disc, plate, ring or flange, ordering a standard geometry can be the fastest route. For custom profiles, uploaded DXF files keep the process moving. NKD Services can also review clear paper drawings, photos and specifications where a formal CAD file is not yet available.

Getting a faster, clearer quotation

Send the information that affects the cut from the start: material grade, sheet thickness, quantity and required finish. Include the drawing, overall dimensions and any features that are critical to fit. If you need material certification, deburring, protective film, folding or a particular delivery date, say so at quotation stage.

Quantities matter because setup, material use and nesting efficiency affect unit cost. One-off orders are welcome, but a run of ten, fifty or five hundred may have a very different price per part. If you expect repeat demand, mention it. A cutter can often plan the job around a repeatable material and process rather than treating every order as a new unknown.

Stainless laser cutting is straightforward when the requirement is clear: choose the grade for the environment, specify the thickness, allow sensible feature sizes and be honest about the finish the part needs. A clean drawing and a practical brief will usually get you from idea to usable metal part far quicker than waiting for a traditional fabrication route.
