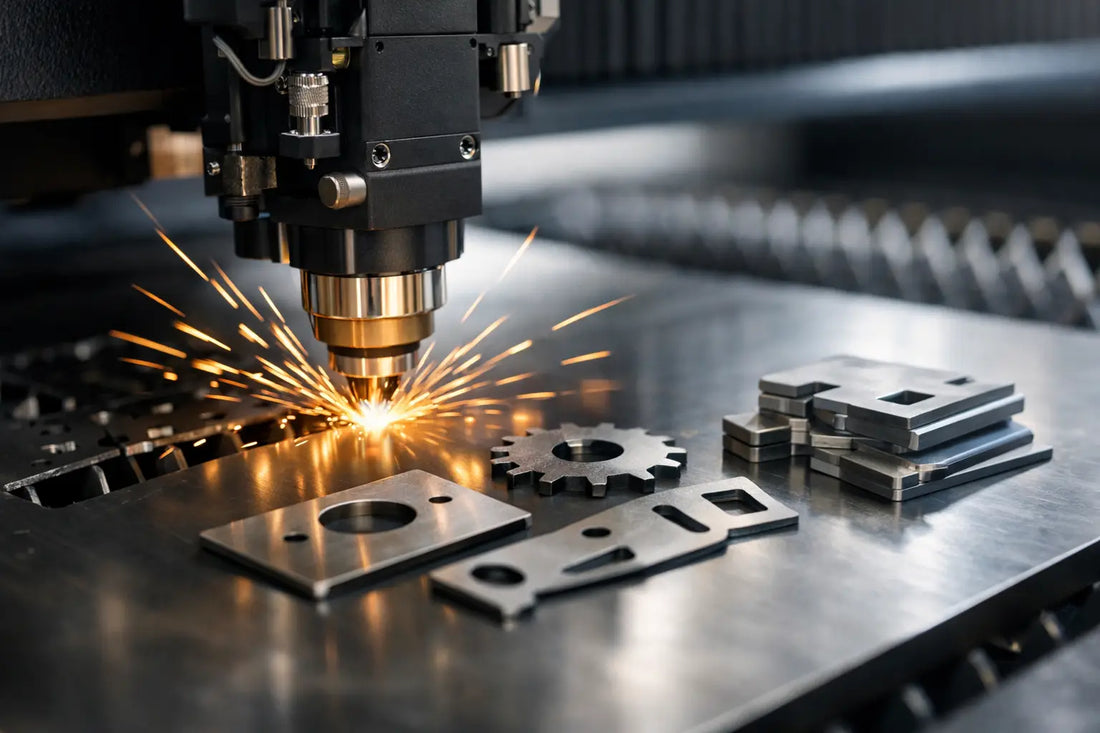

Laser Cutting Accuracy: What Affects Your Parts?

Laser Cutting Accuracy: What Affects Your Parts?

A bracket can look right on screen and still cause a problem on the bench. A hole may be a fraction tight for a bolt, two tabs may not line up with their mating slots, or a folded component may finish slightly out of position. Laser cutting accuracy is what turns a drawing into a part that fits, assembles and performs as intended.

For most jobs, the question is not simply, “How accurate is the laser?” It is whether the finished part can meet the tolerance needed for its job, in the chosen material and thickness, at a sensible cost and lead time. Fibre laser cutting is highly precise, but material behaviour, design details and production setup all play a part.

What laser cutting accuracy actually means

Laser cutting accuracy describes how closely a cut part matches its intended dimensions. This includes outside profiles, hole positions, slot widths, radii and the relationship between features. It is different from repeatability, although both matter. Accuracy is whether the first part matches the drawing; repeatability is whether part 50 matches part one.

A good cutting process also needs to account for kerf - the small amount of material removed by the laser beam. Modern fibre laser systems and correctly prepared CAD data allow kerf compensation to be managed very closely, but it cannot be ignored when features are small or tolerances are tight.

The required tolerance should always be led by function. A decorative panel may only need clean edges and a consistent outline. A machine guard might need mounting holes to line up. A locating plate, bearing housing or interlocking assembly may need more careful control because small deviations can affect the final build.

Factors that affect laser cutting accuracy

The laser machine is only one part of the job. Getting reliable results starts before the first sheet is loaded.

Material type and thickness

Mild steel, stainless steel and aluminium each react differently to heat. Thicker material generally has a wider cut zone than thinner sheet, and the edge can show more taper. Aluminium reflects heat differently from steel and requires the correct settings to maintain a clean, controlled cut.

Sheet thickness also affects small features. A narrow slot or very small hole that works well in 1.5 mm sheet may not be practical in 10 mm plate. As a working rule, feature size needs to be considered alongside material thickness, not viewed in isolation. If a detail is too fine for the material, it can lose definition, develop taper or require a secondary operation.

Material condition matters too. Sheet with a slight bow, residual stress, surface scale or protective film can behave differently during cutting. For standard fabricated parts this is usually manageable, but it becomes more relevant when a drawing calls for close tolerances across a large panel.

Design and drawing quality

The cleanest cuts begin with clean data. A properly scaled DXF with closed profiles, clear dimensions and no duplicate lines gives the cutting process a firm starting point. Gaps in geometry, overlapping entities and lines that should be arcs can create delays or produce features that do not match the designer's intention.

Feature spacing is another common issue. Holes or slots placed very close together can concentrate heat in one area. Tight internal corners can also be less practical than small radii, particularly in thicker sheet. Adding a sensible radius where the design allows can improve edge quality without changing how the part works.

For folded parts, dimensions need to be considered in the flat pattern, not just the finished shape. Bend allowances, bend deductions and the direction of the grain can affect the result after forming. Laser cutting can produce an accurate blank, but it cannot correct an incorrect developed drawing.

Hole size, slots and internal corners

Holes are often the features customers care about most because they affect bolts, rivnuts, pins and fixings. A laser-cut hole can be very accurate when its diameter is appropriate for the material thickness and application. Very small holes in thick material are more demanding and may not provide the same roundness or edge condition as a larger hole.

Where an exact fit is required, such as a dowel pin or a close-running shaft, laser cutting may be best used to create a pilot or near-size feature, followed by drilling, reaming or machining. That is not a failure of the laser process. It is choosing the right manufacturing method for the tolerance required.

The same applies to slots. If a tab must slide into a slot, allow for material thickness, coating, burr condition and assembly clearance. A nominal 3 mm slot for a nominal 3 mm tab is rarely the best route to an easy assembly. A little intentional clearance is usually cheaper than forcing parts together or reworking them later.

Setting tolerances that are realistic and useful

Tight tolerances add cost when they are applied everywhere without a functional reason. They can require slower cutting, more inspection, additional operations or material selection controls. The most economical approach is to identify the few dimensions that genuinely control fit and allow general tolerances on the rest of the profile.

A useful drawing makes this clear. State the material and thickness, identify critical dimensions, and include any hole sizes or slot widths that must work with existing parts. If the part is replacing an old component, a marked-up photo, sample or measured sketch can be valuable where a full CAD drawing is not available.

It is also worth defining what “accurate” means for the job. Does the part need to look neat? Does it need to bolt onto an existing frame? Is it part of a repeat production assembly? The answer changes the best cutting strategy. A one-off repair plate and a batch of precision mounting plates may use the same material, but they should not necessarily be specified in the same way.

How to improve laser cutting accuracy before ordering

Most avoidable fitting issues can be prevented at the design stage. Start by checking that the drawing is drawn at 1:1 scale and that dimensions are in millimetres. Confirm the specified sheet thickness rather than relying on a material name alone, as a small thickness change can affect slots, folds and hardware selection.

Then review the parts around the cut component. Check bolt sizes, washer clearances, thread engagement and any coating that will be added later. Powder coating, galvanising and paint all add thickness. This may be minor on an outside profile, but it matters on close-fitting slots, tabs and mating faces.

For assemblies, consider using a simple test piece before committing to a large batch. A single prototype can confirm clearances, hole locations and folding assumptions quickly. It is often the fastest route to confidence, especially when a part will be fitted to equipment that has been modified, repaired or manufactured by another supplier.

If you do not have a DXF, do not let that stop the enquiry. For straightforward discs, rings, plates and flange plates, the key dimensions are normally enough to establish what is needed. For more complex parts, a paper sketch, photograph or specification sheet can provide a practical starting point for a discussion about manufacturability.

Accuracy after cutting: the steps people forget

A laser-cut part can leave the machine within tolerance and still change during later work. Deburring can soften sharp edges. Folding changes final dimensions. Welding introduces heat and can pull material out of position. Finishes add thickness, while handling and packing can matter for thin, large sheets.

This is why it helps to plan the full manufacturing route rather than treating cutting as a separate task. If a folded bracket has two holes that must align after bending, those holes should be assessed in relation to the bend line. If a welded frame requires a flat mounting face, the weld sequence and clamping method deserve as much attention as the profile cutting.

For repeat orders, retain the approved drawing revision and any agreed notes on material, tolerances or critical features. Consistent information supports consistent parts and avoids the all-too-common problem of manufacturing an older version by mistake.

When fibre laser cutting is the right choice

Fibre laser cutting is an efficient option for accurate sheet metal profiles, from single replacement parts to production batches. It is particularly well suited to brackets, panels, covers, base plates, discs, rings, flanges and parts with repeat hole patterns.

There are limits, and being clear about them saves time. If a component needs extremely close positional tolerances, precision-ground faces or true reamed bores, machining may be needed after cutting. If it needs formed features, welding or inserts, those processes should be planned alongside the flat pattern. The right answer depends on the part, not on forcing every requirement through one process.

At NKD Services, the practical aim is simple: supply clean, reliable laser-cut parts that are right for the job, whether you need one bracket to get a machine running again or a batch for regular production. Send clear dimensions, flag the features that control fit, and leave room for sensible manufacturing decisions. That gives you the best chance of parts that arrive ready to use, rather than parts that need persuading into place.
