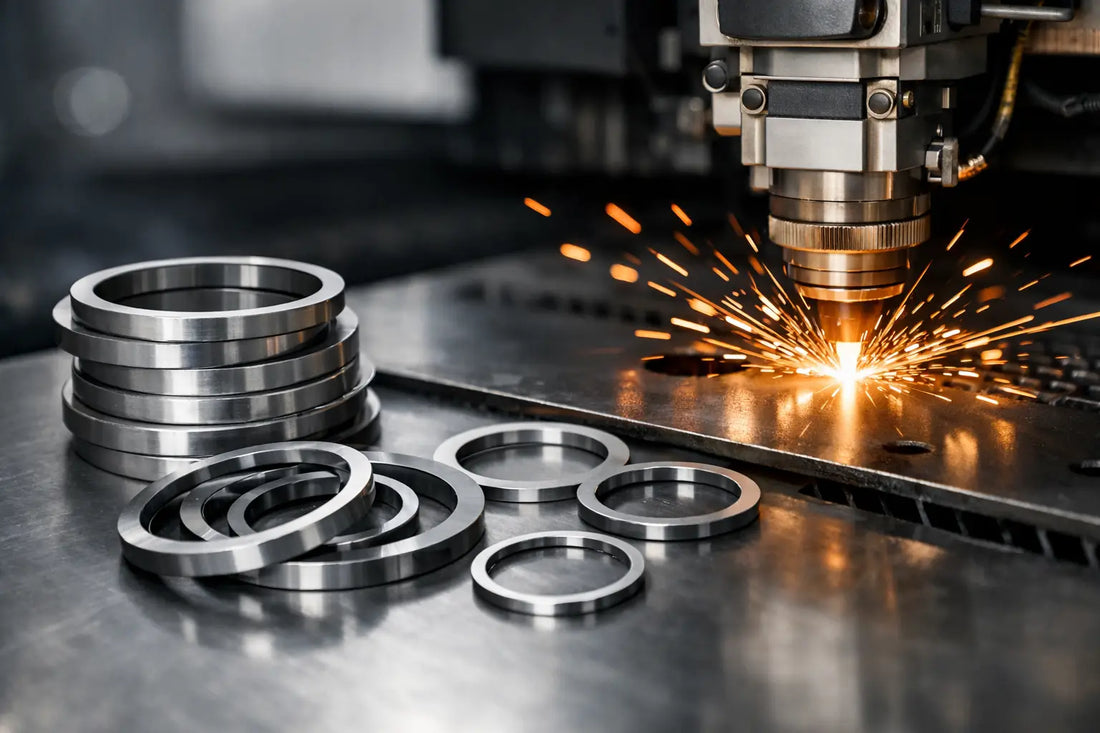

Laser Cut Metal Rings for Fast, Accurate Parts

A ring can look like one of the simplest parts on a drawing, right up until it has to fit a pipe, locate a bearing, bolt to a flange or sit squarely in an assembly. Laser cut metal rings give you a fast, accurate route to these common components without tooling costs or the delay of machining a part that can be cut directly from sheet.

For fabricators, maintenance teams and product builders, the value is straightforward: send the dimensions or a drawing, select the material and thickness, and order the quantity you actually need. That might be one replacement ring for a repair, a set of prototype parts or a repeat batch for production.

What laser cut metal rings are used for

Metal rings appear across fabrication and manufacturing because they solve several jobs with one simple geometry. They can be spacer rings, mounting plates, reinforcement washers, pipe collars, decorative features, retaining rings or flange components. The same basic shape can also become a blank for further folding, welding, drilling, tapping or machining.

Where a ring needs a clean internal cut-out and a consistent outside diameter, fibre laser cutting is often more practical than hand cutting or punching. It is particularly useful when the dimensions are not standard, the hole pattern changes between jobs, or the order quantity does not justify dedicated tooling.

Typical uses include exhaust and ducting flanges, machine guards, agricultural repairs, trailer parts, architectural metalwork, furniture frames, jigs and fixtures. For a maintenance job, a correctly sized ring can save a long wait for an obsolete part. For a fabricator, it can remove a repetitive cutting task from the workshop schedule.

Choosing the right material for laser cut metal rings

Material selection should start with the working environment, not just the lowest initial price. Mild steel, stainless steel and aluminium all cut well, but they behave differently once the part is in service.

Mild steel for general fabrication

Mild steel is usually the sensible choice for indoor structures, brackets, frames and general engineering work. It is cost-effective, readily weldable and available in a broad range of sheet thicknesses. If corrosion is a concern, the finished ring can be painted, powder coated, galvanised or otherwise protected after cutting.

It is a strong option for parts that will be welded into a larger assembly. Bear in mind that laser cutting leaves a heat-affected edge, so any coating plan and weld preparation should be considered before ordering.

Stainless steel for corrosion resistance

Stainless steel rings suit wet areas, outdoor equipment, food-related applications and installations where the finished part needs a cleaner appearance. The grade matters, particularly if the ring will face saltwater, chemicals or frequent washdown.

Stainless costs more than mild steel and can be slower to process in heavier gauges, but it may be the more economical decision over the life of the job. A ring that does not need regular repainting or early replacement can justify the higher material cost.

Aluminium for lower weight

Aluminium is useful where reducing weight matters, such as vehicle components, enclosures, display work and lightweight machinery. It also has good natural corrosion resistance. However, it is softer than steel and may not be suitable where a thin ring will take heavy clamp loads or repeated abrasion.

If the ring is being used as a load-spreading washer or a spacer beneath bolted joints, check whether the thickness and alloy will prevent distortion. A larger outside diameter or a thicker part may be needed to achieve the same stiffness as steel.

The dimensions that make or break the fit

A ring drawing normally starts with outside diameter, inside diameter and material thickness. For many jobs, that is enough to produce a usable part. Once the ring must locate against another component, though, small details become more significant.

State whether a dimension is critical and what it needs to fit. For example, a ring slipping over a pipe needs clearance, while a ring locating on a spigot may need a much closer fit. A nominal 100 mm hole is not automatically the right answer if the mating part measures slightly over or under that size.

Also consider kerf and tolerances. A laser removes a narrow width of material as it cuts, and modern fibre laser equipment compensates for this in the programmed geometry. Even so, every process has a realistic tolerance range. For normal fabrication, laser-cut dimensions are highly consistent. For press fits, bearing seats, threads or precision sealing faces, it may be better to laser cut a near-size blank and machine the critical feature afterwards.

The edge condition also depends on material and thickness. Laser cutting produces a clean edge for most applications, but thicker steel may have a small amount of dross on the underside. If a visible finish or a burr-free contact surface is required, specify any deburring, linishing or finishing work at the enquiry stage.

From simple ring to finished component

A plain ring is quick to order, especially if you have the inside diameter, outside diameter, material and thickness ready. Standard ring shapes are useful for uncomplicated parts where no drawing is needed.

For anything more involved, a DXF file is the best route. It keeps the cut profile clear and reduces the risk of interpreting dimensions from a marked-up image. A good DXF should be drawn at full size in millimetres, use clean closed lines and avoid duplicate entities. Put cut-outs, bolt holes and slots in the same profile where possible.

Not every job begins with CAD. A paper sketch, photo of an existing part or specification sheet can still be enough for simpler requirements. Include as many measurements as possible, identify which dimensions are most important, and show the intended hole positions from a clear datum. A quick conversation before cutting is cheaper than remaking parts after delivery.

Laser cutting can also prepare rings for secondary operations. Bolt holes, slots, tabs and etched identification marks can be included in the profile. If the part will be welded, think about access for the weld bead and whether a locating tab or notch would make assembly quicker. These small design choices can reduce fitting time across a batch.

Ordering quantities: one-off parts or production batches

Traditional fabrication suppliers often favour larger orders because setup time can outweigh the value of a small job. That creates problems when you only need one ring to get a machine running again or want a prototype before committing to a batch.

Laser cutting is well suited to both situations. One-off orders let you test dimensions, material thickness and fit before placing a larger order. For repeat work, a saved DXF gives a reliable starting point and helps keep later batches consistent.

There is still a trade-off. Larger quantities normally reduce the per-part price because programming, material handling and machine setup are spread across more components. Nesting several different parts from the same material sheet can also improve material use. If you need rings alongside plates, brackets or gussets in the same grade and thickness, it is worth sending them together for quotation.

Lead time depends on material availability, thickness, order volume and any added operations. A straightforward ring profile in stocked sheet can move quickly. Complex assemblies, unusual material grades or finishing requirements naturally take longer. For urgent work, provide a complete specification at the first enquiry and flag the required date clearly.

Common mistakes to avoid

The most costly errors are usually not in the cutting itself. They come from ordering a ring that is technically to drawing but wrong for its purpose.

First, avoid specifying only the nominal size of the mating part. Measure it where possible and decide how much fitting clearance is needed. Second, do not overlook material thickness. A ring that fits perfectly can still flex, foul another component or leave insufficient thread engagement once installed.

Third, check the practical direction of use. If one face must be cleaner for a seal, a cosmetic finish or a bearing surface, say so. Finally, make sure all holes are measured from a sensible datum, especially where a bolt pattern must align with an existing flange. A circle of evenly spaced holes can still be clocked incorrectly if its orientation is not shown.

A straightforward route from drawing to delivery

The quickest orders are the ones with clear information: material, thickness, inside and outside dimensions, quantity and any holes or special requirements. Add a DXF where available, or provide a clear drawing for simple parts. If the ring is replacing an existing item, a few photographs alongside measured dimensions can be useful.

NKD Services cuts custom rings for one-off jobs and repeat production, with mild steel, stainless steel and aluminium options for practical fabrication requirements. The aim is not to complicate a simple part. It is to get the right profile cut accurately, priced clearly and moving towards your workshop or site without unnecessary delay.

Before you place the order, take a minute to check the mating dimensions, the working environment and what happens to the ring after cutting. That small check usually determines whether a basic circular part becomes a dependable component first time.
