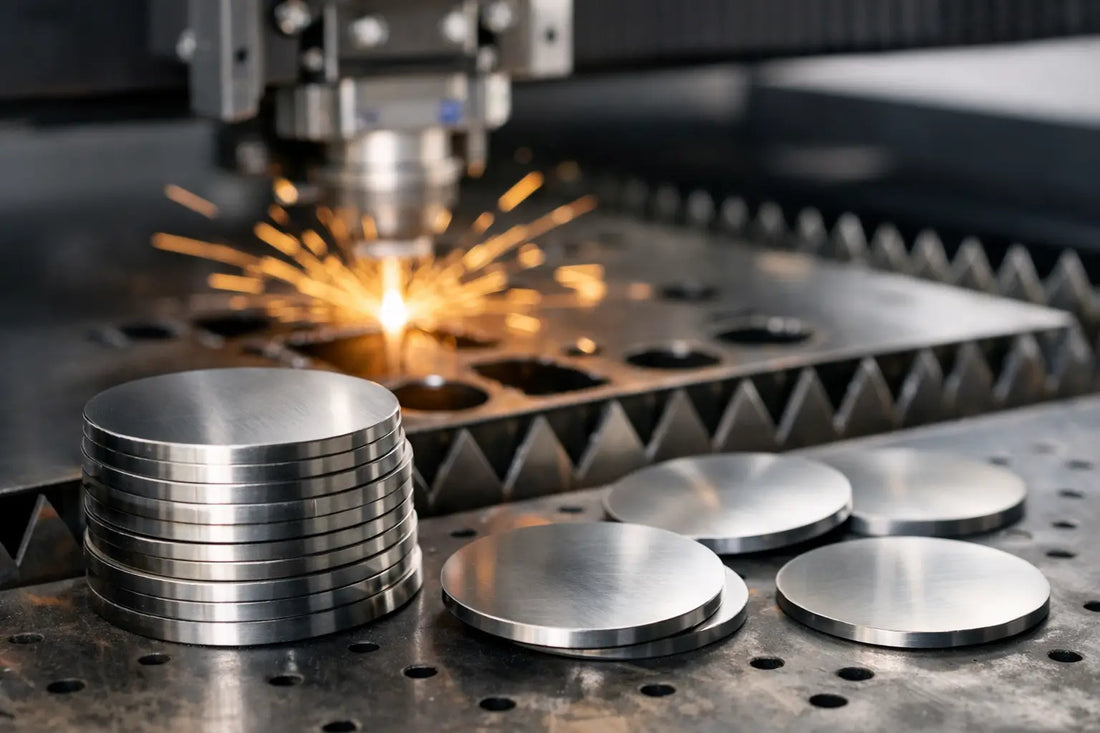

Laser Cut Metal Discs for Accurate Parts

A metal disc sounds simple until it has to fit a shaft, cover an opening, sit flat in an assembly or withstand regular use. Laser cut metal discs give you a fast route to accurate round parts without paying for dedicated tooling, whether you need one replacement blank or a repeat batch for production.

For engineers, fabricators and maintenance teams, the real benefit is control. You can specify the outside diameter, centre hole, material and thickness to suit the job, then order only the quantity required. That avoids the usual compromise of buying stock circles that are too large, too thin or made from the wrong grade.

When laser cut metal discs are the right choice

Laser cutting is well suited to flat discs made from sheet metal. It produces a consistent profile, handles internal holes and cut-outs in the same operation, and is economical for prototypes, low volumes and many repeat orders. There is no press tool to make first, so a design can move from drawing to part far more quickly than a stamped component.

This matters when a machine is waiting on a replacement part, a new product needs trial components, or a fabrication job requires matching blanks at short notice. A disc can be supplied as a plain circle, but it can also include a bore, bolt holes, slots, tabs, keyways or identification marks where the design allows.

Laser cutting is not the answer to every round part. If you need thousands of identical thin discs, pressing may offer a lower unit cost once tooling is justified. If the part needs a turned diameter, a tight shaft fit or a very smooth machined edge, machining may be the better finishing process. In many cases, though, laser cutting provides the sensible starting point: accurate flat blanks with minimal set-up time.

Common uses for cut discs

The same basic shape appears across a wide range of work. Laser cut discs are used as covers, spacers, mounting plates, wear pads, blanking plates, pulley blanks, gusset details and inspection plates. They are also useful for jigs, fixtures, art and signage, agricultural repairs, automotive projects and general workshop jobs.

A disc with a centre hole becomes a ring or washer-style component. Add a bolt pattern and it becomes a flange plate. Add slots or tabs and it can locate into a larger assembly. Starting from a standard geometry is often the quickest way to buy a part, while a custom drawing gives you more freedom where the detail matters.

Choosing the material for laser cut metal discs

Material choice should be based on the environment, the load on the part and what happens next. A disc that will be welded into a frame has different requirements from one fitted to external equipment or used as a visible finished panel.

Mild steel

Mild steel is a practical, cost-effective choice for general fabrication, brackets, machine parts and internal applications. It cuts cleanly and is commonly used where the disc will be welded, painted, powder coated or otherwise protected after cutting.

Bare mild steel will oxidise if left in damp conditions. If corrosion resistance matters, plan the coating or finishing stage from the start rather than treating it as an afterthought.

Stainless steel

Stainless steel is often chosen for wet areas, food-related equipment, external installations and parts where appearance matters. It offers good corrosion resistance, but the exact grade and finish still need to suit the environment. A disc exposed to coastal air, cleaning chemicals or regular washdown may need a more considered specification than one used indoors.

Laser-cut stainless can show heat tint around the cut edge. This is normal, and it may be acceptable for many industrial uses. Where appearance or corrosion performance is critical, allow for edge cleaning, passivation or another suitable finishing process.

Aluminium

Aluminium is useful where weight needs to stay down or where natural corrosion resistance is beneficial. It is common in enclosures, vehicle work, guards, lightweight fabrications and product development.

It is softer than steel, so consider how the disc will be clamped, fastened or loaded. If it needs threads, repeated assembly or a bearing surface, a thicker section, inserts or a different design may be required.

Get the specification right before ordering

The fastest jobs are usually the ones with a clear specification. For a simple disc, provide the outside diameter, material, thickness and quantity. If there is a centre hole or any additional detail, include its dimensions and position. State whether the part must be supplied with a particular face visible, grain direction, finish or protective film where relevant.

For custom work, a DXF file is normally the most efficient format because it gives the cutter a defined profile. A clean 1:1 drawing with dimensions in millimetres reduces questions and helps avoid delays. Keep the file to the required cut geometry, remove duplicate lines, and make sure holes and slots are closed shapes rather than separate segments.

Not every job begins with CAD. A marked-up sketch, paper drawing, photo of an existing part or specification sheet can still be enough for a straightforward requirement. Include a reliable scale, key measurements and as much information as possible about how the disc fits or functions. If a worn original part is being copied, measure the features that matter rather than relying only on the overall diameter.

Tolerance is another point worth discussing early. Laser cutting can achieve good accuracy, but the right tolerance depends on material thickness, feature size, part geometry and the function of the component. A general clearance hole is very different from a precise mating bore. If a disc must fit another component closely, say so at quotation stage. It may need a suitable allowance, a secondary operation or a test part before a larger batch is made.

Design details that save time and cost

A few design choices can make a disc easier to cut and more reliable in service. Keep holes and narrow slots proportionate to the material thickness where possible. Very small features can be difficult to produce consistently, particularly in thicker sheet. Likewise, thin sections between holes and the outside edge may distort or become weak under load.

Leave enough material around bolt holes so the disc does not tear or deform when tightened. If countersinking, tapping or folding is needed after laser cutting, build in the correct pilot-hole size and allow room for the tool. Where a cut edge will be handled regularly, consider whether deburring is required. Laser-cut parts are generally clean, but edge condition varies with material and thickness, and a safety-critical or customer-facing part may need further finishing.

Nesting can also affect cost on larger quantities. If several different discs, rings or plates use the same material and thickness, ordering them together can reduce waste and handling. For repeat work, keeping an approved drawing and revision number makes reordering simpler and prevents old versions returning to production.

From one-off disc to repeat production

One-off orders are useful for repairs, prototypes and fit checks. They let you confirm that the outside diameter, hole size and thickness work in the real assembly before committing to more parts. This is particularly sensible where the disc interfaces with castings, older equipment or components with uncertain dimensions.

Once the design is proven, the same file can be used for batch production. Consistent laser cutting helps keep parts interchangeable, while quantities can be scaled to suit the build schedule. There is no need to treat a small requirement as an inconvenience. At NKD Services, one-off orders and larger production runs follow the same practical approach: clear requirements, suitable material and a realistic turnaround.

Before placing an order, check the drawing against the part's actual job: what it mounts to, what it carries, where it operates and how it will be finished. A few minutes spent confirming those details can turn a basic cut circle into a disc that fits first time and keeps the job moving.
