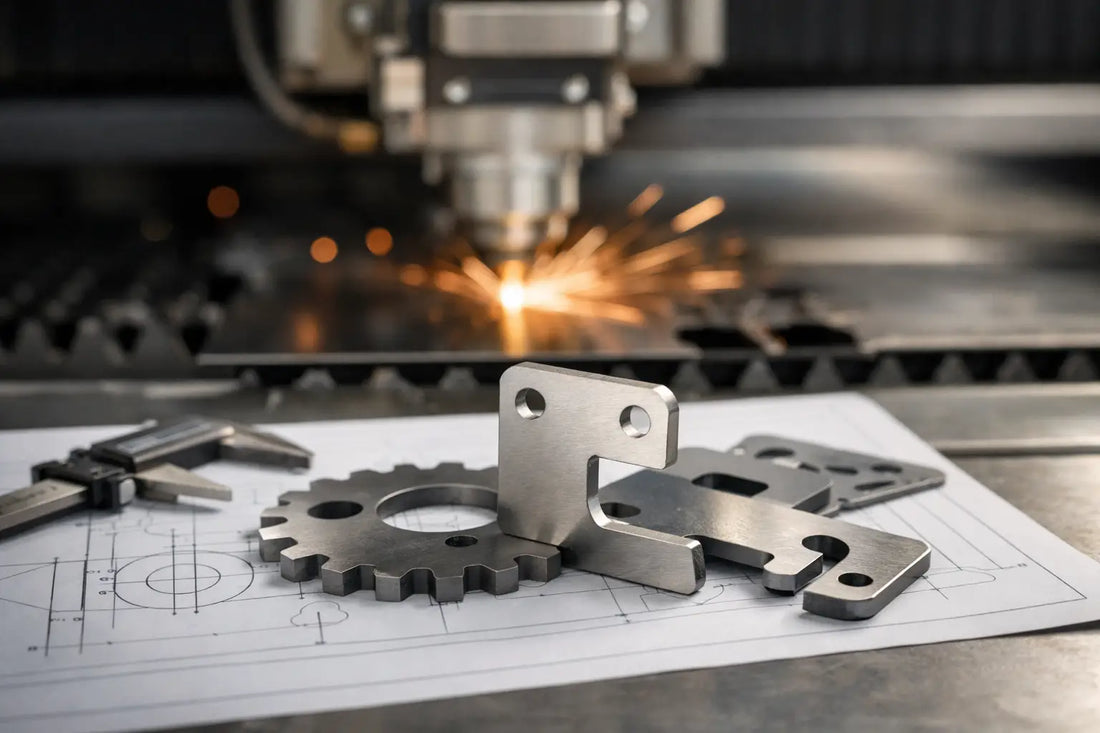

Custom Laser Cut Parts That Fit First Time

A replacement bracket that is a few millimetres out can stop a repair before it starts. A panel with the wrong hole size can hold up assembly. That is why custom laser cut parts need more than an outline on a drawing - they need clear dimensions, the right material and a cutting process suited to the job.

For engineers, fabricators, maintenance teams and makers, fibre laser cutting is a practical route to accurate sheet metal components without buying, programming and maintaining cutting equipment in-house. It works equally well for a single prototype, a replacement part or a repeat batch, provided the order information is right from the outset.

Start with the part's job, not just its shape

Before choosing a material or sending a file, establish what the part has to do. A simple flat plate may be a mounting face, a wear pad, a guard, a cover or a structural bracket. Each use affects the material, thickness, tolerances and finish you should specify.

If a part carries load, the key question is usually stiffness. Increasing material thickness can help, but so can changing the shape, adding folds later in the fabrication process, or using a stronger grade where appropriate. If it sits in a wet, food-processing or outdoor setting, corrosion resistance may matter more than raw strength. For an enclosure or decorative panel, surface appearance and paint preparation may take priority.

It is also worth checking how the part will be fitted. Bolted parts need correctly sized holes and enough clearance for sockets, washers and fasteners. Parts that locate against another component may need tighter control on critical features than on the outside profile. A laser-cut edge is accurate, but the drawing must still show which dimensions are genuinely critical.

Choosing material for custom laser cut parts

Mild steel, stainless steel and aluminium all have a place in everyday fabrication. The best choice depends on service conditions, cost and what happens after cutting.

Mild steel is often the sensible choice for general brackets, machine parts, frames, guards and fabricated assemblies. It is economical, readily available and well suited to welding and coating. Where corrosion is a concern, it will normally need paint, powder coating, galvanising or another protective finish.

Stainless steel costs more, but it earns its place where a clean appearance, corrosion resistance or regular washdown is required. It is common in food equipment, commercial settings, marine-adjacent work and exposed installations. Not every stainless job needs the same grade or finish, so state the environment and intended use when requesting a quote.

Aluminium is valued for its low weight and natural corrosion resistance. It is a strong option for covers, vehicle components, panels, housings and applications where reducing weight matters. It is softer than steel, however, so thread engagement, dent resistance and structural stiffness need consideration. A thicker aluminium part is not always a direct substitute for a thinner steel part.

Material thickness should be chosen around the function of the part, not guessed from a photo or an existing item alone. If you are replacing a failed component, measure the original carefully and consider why it failed. A new copy may restore operation, but a modest change in thickness, hole arrangement or profile could prevent the same issue happening again.

A drawing that can be cut without delays

A clean DXF file is usually the quickest route to a precise quotation and production. It gives the cutting team a clear 2D profile and avoids interpretation of dimensions from a screenshot. Use real-world scale, keep the drawing at 1:1 and make sure all geometry is visible on the correct layer.

For a straightforward laser-cut item, the file should show the finished flat profile, including external edges, holes, slots and internal cut-outs. Remove duplicate lines, overlapping entities and construction geometry before sending it. These details can cause unnecessary questions or affect how the software reads the part.

Where a DXF is not available, a dimensioned sketch, PDF, photograph or specification sheet can still be useful for simpler work. Include overall length and width, material, thickness, hole diameters and any measurements that control fit. A photo of the existing part alongside a ruler can help, but it should support dimensions rather than replace them.

Avoid specifying tolerances across every dimension unless they are needed. Tighter tolerances can increase inspection requirements, cost and lead time. A better approach is to identify the few features that must locate accurately - perhaps the centres of two mounting holes or a bearing opening - then allow normal manufacturing tolerance elsewhere.

Details that are easy to miss

Small details often decide whether a part is ready to use on arrival. Check that internal corner radii suit the mating component, especially where a square tab needs to fit into a cut-out. Confirm that slots allow for adjustment if the assembly needs it. If a hole will be tapped after cutting, specify the tapping size rather than the finished bolt diameter.

Consider the kerf and heat of the cutting process too. Fibre laser cutting produces a narrow cut, but no manufacturing process creates a mathematically perfect zero-width line. Very small holes, tight slots and fine features need to be proportionate to the material thickness. If a design is at the limit, a practical supplier can advise on a more reliable feature size before production begins.

Design for cutting, fabrication and assembly

Laser cutting is fast, but a part may still need bending, welding, countersinking, tapping, deburring or finishing afterwards. Designing with those operations in mind avoids awkward surprises.

For example, holes placed very close to a bend line can distort during folding. Slots that are intended to receive tabs need enough clearance for coating, weld build-up or assembly variation. A large flat panel may benefit from folds or return edges to improve rigidity instead of simply increasing sheet thickness.

If the part will be welded, leave enough edge access for the weld and make clear whether cosmetic appearance matters. If it will be powder coated, remember that coating adds thickness. This can affect close-fitting tabs, holes and sliding interfaces. The part may look better after finishing, but fit can become worse if clearance has not been allowed for.

For repeat production, retain the approved file revision and part number. A simple naming system prevents an old bracket or panel being ordered by mistake months later. It also makes it easier to request the same part again, amend one feature or compare costs between quantities.

When one-off cutting makes commercial sense

One-off orders are not only for prototypes. They are useful for breakdown repairs, obsolete machine parts, jigs, fixtures, trial installations and short-run product development. The value is often in avoiding downtime or proving a design before committing to a larger batch.

A small run can also reveal whether the part is genuinely ready for scale. Test fit the first components, check fastener access, and see how the material behaves in use. If changes are needed, it is far cheaper to revise a DXF before ordering hundreds of pieces.

For established parts, batch cutting can reduce handling and set-up cost per component. The right quantity depends on stock space, cash flow, expected demand and whether the design is likely to change. Ordering more is not automatically cheaper if half the batch becomes redundant after a design update.

NKD Services supports both routes, from individual custom components to production quantities, so customers can move from a first sample to repeat orders without changing supplier or process.

Get a faster, more accurate quote

A quotation is easier to turn around when the essential information arrives together. State the material and thickness, quantity, file format, required delivery date and any secondary work required. If the part is a replacement, say what it fits and which measurements are non-negotiable.

Be realistic about lead time where the job includes more than cutting. A flat profile may be straightforward, while folded, finished or specially sourced material can add stages. The quickest option is often a standard material in a commonly used thickness, with a clean DXF and no unnecessary complexity.

If cost is the main concern, ask whether small design changes could help. Combining several small parts onto one sheet, standardising hole sizes, reducing unnecessary cut-outs or adjusting material choice may improve the price without compromising function. The lowest-cost part is not always the thinnest or simplest-looking one - it is the one designed sensibly for how it will be made and used.

A good custom part starts with a clear purpose and a drawing that leaves little room for guesswork. Get those two things right, and laser cutting becomes a fast, dependable way to keep a repair moving, a build on schedule or a new product progressing from idea to working metal.
