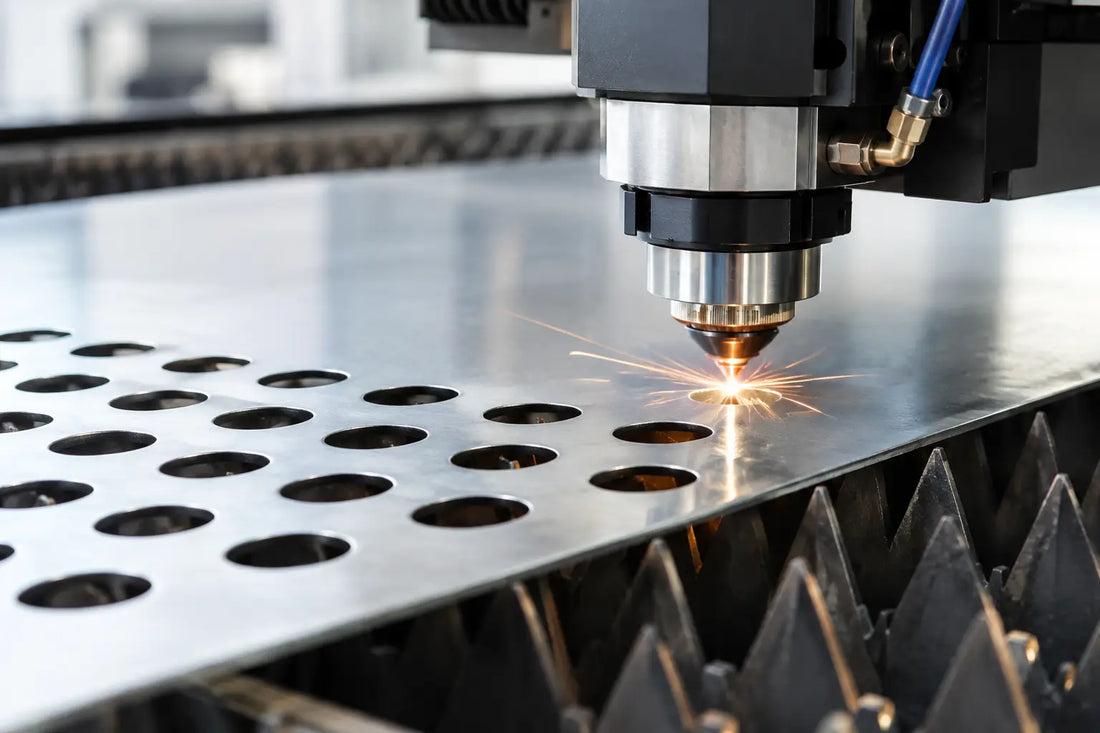

Best Practices for Laser-Cut Holes in Sheet Metal

A hole may look like the simplest feature on a drawing, but it often decides whether a sheet metal part fits first time or causes trouble on the shop floor. The best practices for laser-cut holes come down to designing for the material, the cutting process and the job the finished hole must do. Get those three right and parts are quicker to quote, cleaner to cut and easier to assemble.

What makes a laser-cut hole reliable?

A fibre laser can produce accurate holes in mild steel, stainless steel and aluminium, including detailed profiles that would be slow to drill or punch. That does not mean every hole size, shape and tolerance is equally economical or suitable.

Small holes in thick material are more demanding than larger holes in thin sheet. As the laser cuts through the material, the cut can develop a slight taper, heat can affect the edge, and dross may form on the underside depending on the material and thickness. These effects are normally minor on a well-designed part, but they matter when a bolt, dowel, bearing or thread has to fit precisely.

The aim is not simply to make the smallest possible hole. It is to specify a hole that performs its intended job without creating unnecessary cutting time, secondary work or rejected parts.

Best practices for laser-cut holes: size first

As a practical starting point, aim for a hole diameter at least equal to the sheet thickness. For example, a 3 mm diameter hole is a sensible starting point in 3 mm sheet. Smaller holes can sometimes be cut, particularly with modern fibre laser equipment, but the result depends on the material grade, thickness, hole quantity and required finish.

If a small hole is essential, flag its purpose on the drawing. A clearance hole for a light fitting is different from a hole that locates a precision pin. The latter may be better laser cut undersize, then drilled or reamed as a secondary operation.

Slots should follow the same principle. Avoid making a slot narrower than the material thickness unless there is a clear reason and the design has been checked for manufacturability. Give slots rounded ends rather than sharp internal corners. This suits the laser cutting process and reduces the risk of stress concentration in a working part.

Allow sensible clearance for fixings

For general assembly, use a clearance hole rather than matching a bolt's nominal diameter exactly. A nominal 10 mm bolt, for instance, will rarely be happiest in a 10 mm laser-cut hole once coating, alignment and normal manufacturing variation are considered. The right clearance depends on how accurately the mating parts are located and whether the joint needs adjustment.

If the part will be powder coated, plated or painted, remember that the finish reduces the usable hole size. This is particularly relevant for closely fitting bolts, clips and electrical fittings.

Do not treat laser-cut holes as finished threads

Laser cutting is an excellent way to produce tapping holes, but the hole needs to be sized for the tap, not for the screw's outside diameter. The available thread depth also depends on sheet thickness. Thin sheet may not provide enough engagement for a reliable thread, in which case a clinch nut, welded nut, threaded insert or formed boss may be the better answer.

For one-off brackets, tapping may be perfectly adequate. For repeated assembly, heavy loads or frequent removal, specifying the right fastening method early saves rework later.

Leave material between holes and edges

Holes placed too close together can leave a weak strip of material between them. They can also concentrate heat in one area during cutting, which may affect flatness in lighter-gauge sheet.

As a useful rule, leave at least one material thickness between the edge of a hole and the outside edge of the part. More room is better where the edge will be bent, welded, loaded or knocked during use. For closely spaced holes, aim for a similar minimum web of material between the hole edges, preferably more on structural components.

This is not a fixed law. A decorative panel can often use tighter spacing than a machine bracket carrying weight. The important point is to consider what remains after cutting. A row of holes may look fine on screen but leave very little strength in the actual component.

Keep holes clear of bends

Most laser-cut sheet metal parts are cut flat before bending. Put a hole too close to a bend line and the bend can distort the hole, mark the tool or make it difficult to form consistently.

The required distance depends on material thickness, bend radius and tooling. Where a hole must sit near a bend, provide the bend details with the drawing and allow the fabricator to review it. A small adjustment to hole position is far cheaper than discovering an interference issue after a batch has been cut.

Specify tolerances that match the job

A laser-cut hole does not need the same tolerance in every application. Over-specifying every diameter and position can increase inspection requirements and cost without improving the finished assembly.

Use normal commercial tolerances for holes that simply provide clearance. Reserve tight tolerances for features that locate parts, align shafts or accept precision hardware. Where positional accuracy matters, identify the datum edges or datum holes from which the feature should be measured. A chain of dimensions across a part leaves too much room for interpretation.

It is also worth distinguishing between diameter tolerance and position tolerance. A 12 mm hole can be the correct size but still cause an assembly problem if it sits 1 mm out of position. Clear functional dimensions give the cutting team the information needed to focus on what actually matters.

For very accurate fits, consider a two-stage approach: laser cut a pilot hole or an undersized hole, then machine it to final size. Drilling, reaming or boring adds time, but it is the dependable route when a press fit, bearing seat or dowel pin location is involved.

Prepare DXF files with clean cut paths

A clean drawing prevents avoidable delays. For custom parts, supply a 1:1 DXF in millimetres with each hole and outer profile drawn as a closed contour. Remove duplicate lines, overlapping geometry and stray marks outside the part. These can confuse nesting and cutting software or lead to an unexpected cut.

Keep the file focused on the cut profile. If you need features that are not cut through, such as countersinks, tapped holes, bends, engraving or surface finish requirements, state them clearly in the enquiry or on a separate drawing. A laser cutter cannot safely assume that every circle in a DXF means the same thing.

Include the material, thickness and grade where known, along with quantity and any critical tolerances. If you only have a paper drawing, photo or sketch for a straightforward replacement part, give as many dimensions as possible and identify which holes are most important. That makes it easier to turn an idea into a cuttable part without back-and-forth.

Consider the edge condition after cutting

Laser-cut holes are usually clean, but the underside can retain a small burr or dross, especially in thicker material or certain grades. For most brackets, covers and general fabrication work, this is not a problem. If a gasket sits around a hole, a component must sit perfectly flush, or the part will be handled frequently, specify any deburring requirement from the outset.

Material choice also changes the result. Mild steel may show an oxidised cut edge when cut with oxygen. Stainless steel and aluminium are commonly cut with nitrogen to give a cleaner, brighter edge, though final appearance still depends on thickness and finish. If cosmetic quality matters, say so rather than relying on an assumption.

Know when laser cutting needs a second operation

Laser cutting is fast and cost-effective because it produces profiles and holes in one setup. It is not the only process needed for every hole. Precision bores, countersinks, threads, bearing locations and critical sealing faces may justify machining or finishing afterwards.

That is not a failure of laser cutting. It is sensible process selection. Use laser cutting for what it does best - accurate, repeatable profiles at speed - then add a secondary operation only where the function demands it.

For prototypes and production parts alike, share the intended use of any critical hole when requesting a quote. NKD Services can then help keep the design practical, whether the requirement is a single replacement plate or a repeat batch of fabricated components.

A good hole design gives the laser room to do its job and gives the assembler room to do theirs. Before releasing the file, check the smallest diameter, the spacing to edges and bends, the fixing clearance and any feature that needs more accuracy than a cut edge alone can provide. Those few checks usually prevent the expensive kind of delay.
